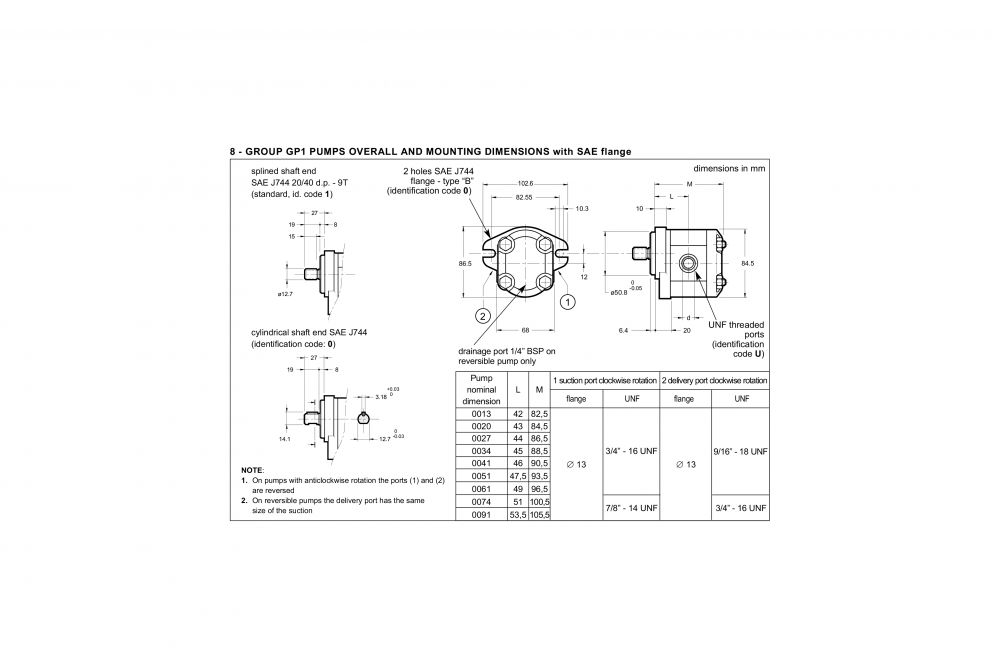

  • Duplomatic GP Mounting Dimensions SAE Flange
  • Duplomatic GP Rear Pump Ordering Information
  • Duplomatic Gp Single Pump Ordering Information
  • Duplomatic GP1 Mounting Dimensions Standard Dimensions
  • Duplomatic GP2 Mounting Dimensions SAE Flange
  • Duplomatic GP2 Mounting Dimensions Standard Flange
  • Duplomatic GP3 Mounting Dimensions SAE-Flange
  • Duplomatic GP3 Mounting Dimensions Standard-Flange

Duplomatic GP – External Gear Pumps

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The GP pumps are fixed displacement external gear pumps with axial clearance compensation.

  • They give high volumetric flows even with high operating pressures, a low noise level, and they have a high endurance thanks to the balancing system of the loads on the guide bushings.
  • They are divided into three size groups, with displacements of up to 9,1 – 27,9 and 87,6 cm3/rev respectively, and with operating pressures of up to 250 bar (standard) and up to 310 bar (version for high pressures H).
  • They are available with clockwise, anticlockwise and reversible rotation, with tapered shaft (standard). Other kind of shaft are available upon request.
  • They are available in multiple versions, and can be combined in multi-flow groups, with a splined connection motion system that guarantees high power performances.

Product Specification

Description GP1 GP2 Gp3
Displacement Range 1.3 ÷ 9.1 cm³/rev 7 ÷ 27.9 cm³/rev 20.7 ÷ 87.6 cm³/rev
Rotation Direction Clockwise, Anticlockwise or Reversible (Seen from the Shaft Side) Clockwise, Anticlockwise or Reversible (Seen from the Shaft Side) Clockwise, Anticlockwise or Reversible (Seen from the Shaft Side)
Loads on the Shaft Radial and Axial Load are not Allowed Radial and Axial Load are not Allowed Radial and Axial Load are not Allowed
Hydraulic Connection Flanged Fittings Flanged Fittings Flanged Fittings
Type of Mounting 4 Hole Flange – Rectangular Type 4 Hole Flange – Rectangular Type 4 Hole Flange – Rectangular Type
Standard Version Mass 1.2 ÷ 1.6 kg 2.6 ÷ 3.5 kg 6 ÷ 8.5 kg
H Version Mass 1.9 ÷2.3 kg 3.8 ÷ 4.7 kg 8.7 ÷ 11.2 kg

Duplomatic – GP – External Gear Pumps – Data Sheet

Additional Information

Manufacturer

Duplomatic

Hydraulic Pump Units

Gear Pump

Hydraulic Vane Pumps

Single Vane Pump
