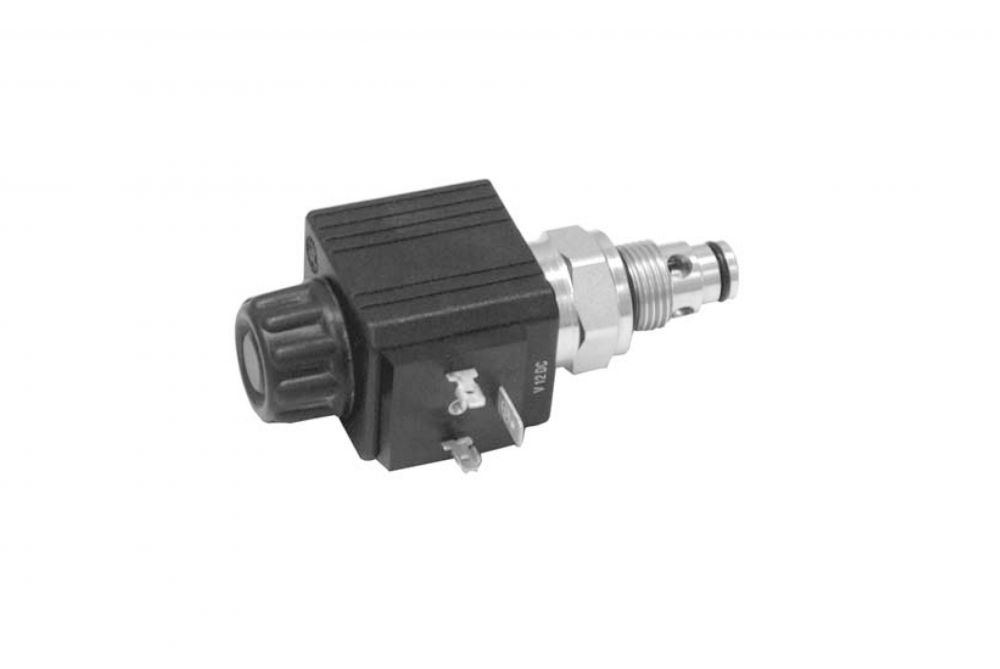

  • Duplomatic KT08 - Cartridge Solenoid Valve

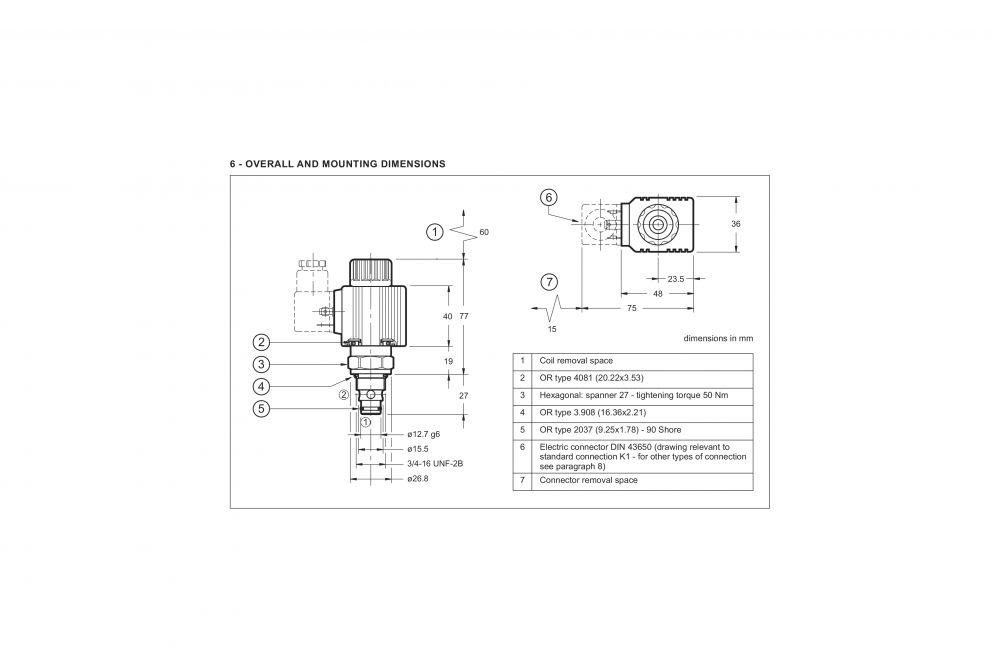

  • Duplomatic KT08 - Mounting Dimensions

Duplomatic KT08 – Poppet Type Solenoid Operated Valve – Cartridge Type

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic KT08 is a 2-ways solenoid valve, poppet type, cartridge execution, available in normally closed version (NC) and normally open version (NO) with nominal flow rate of 50 l/min.

It ensures a low internal leakage, which decreases while the pressure increases.

The valve can be ordered with direct current or rectified current solenoids and with five different types of electrical connections, in order to cover many installation requirements.

For every version, the emergency manual override is an available option.

Tech specs: pmax: 350 bar – Qmax: 50 l/min

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Nominal Flow Rate 50 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 /+80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
Mass 0,32 kg
Surface Treatment with White Color Zinc Fe / Zn 8c 1B
UNI ISO 2081/4520

Duplomatic – KT08 – Poppet Type Solenoid Operated Valve – Cartridge Type – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Poppet Type Valves
