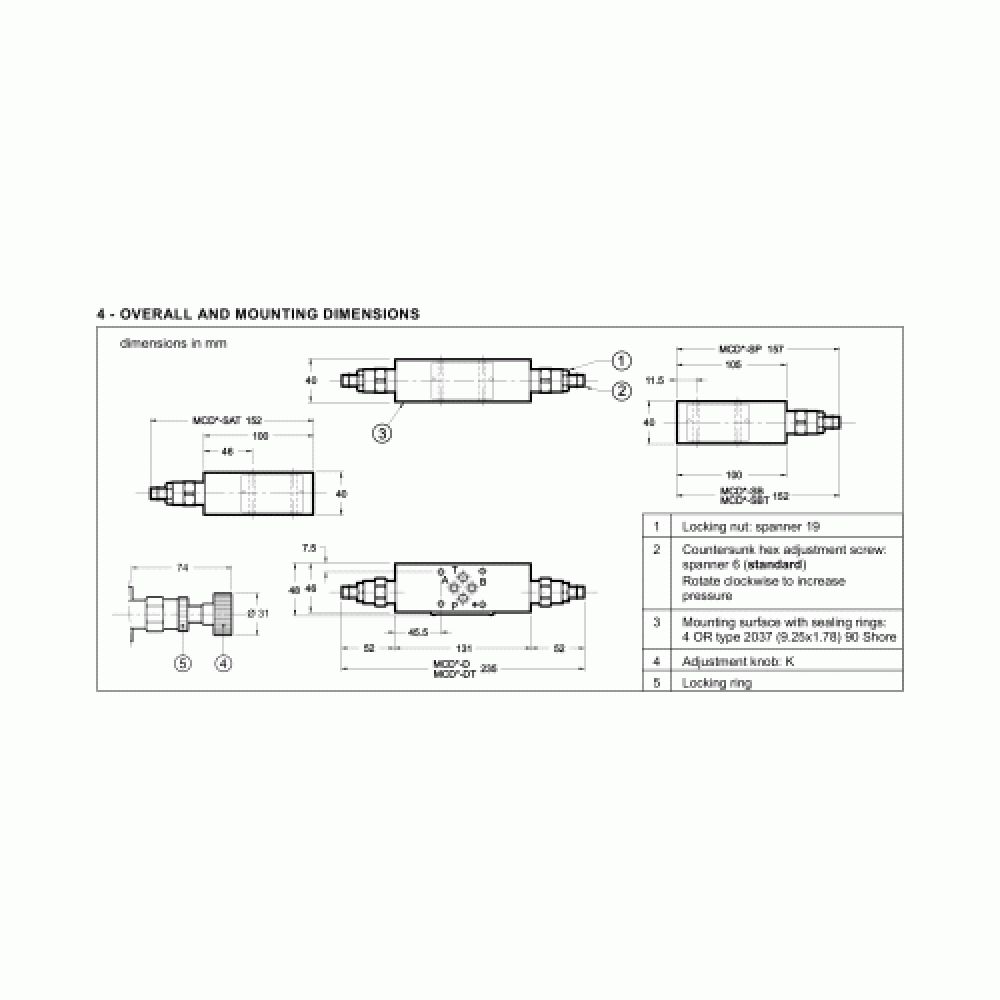

  • Duplomatic MCD - Mounting Dimensions

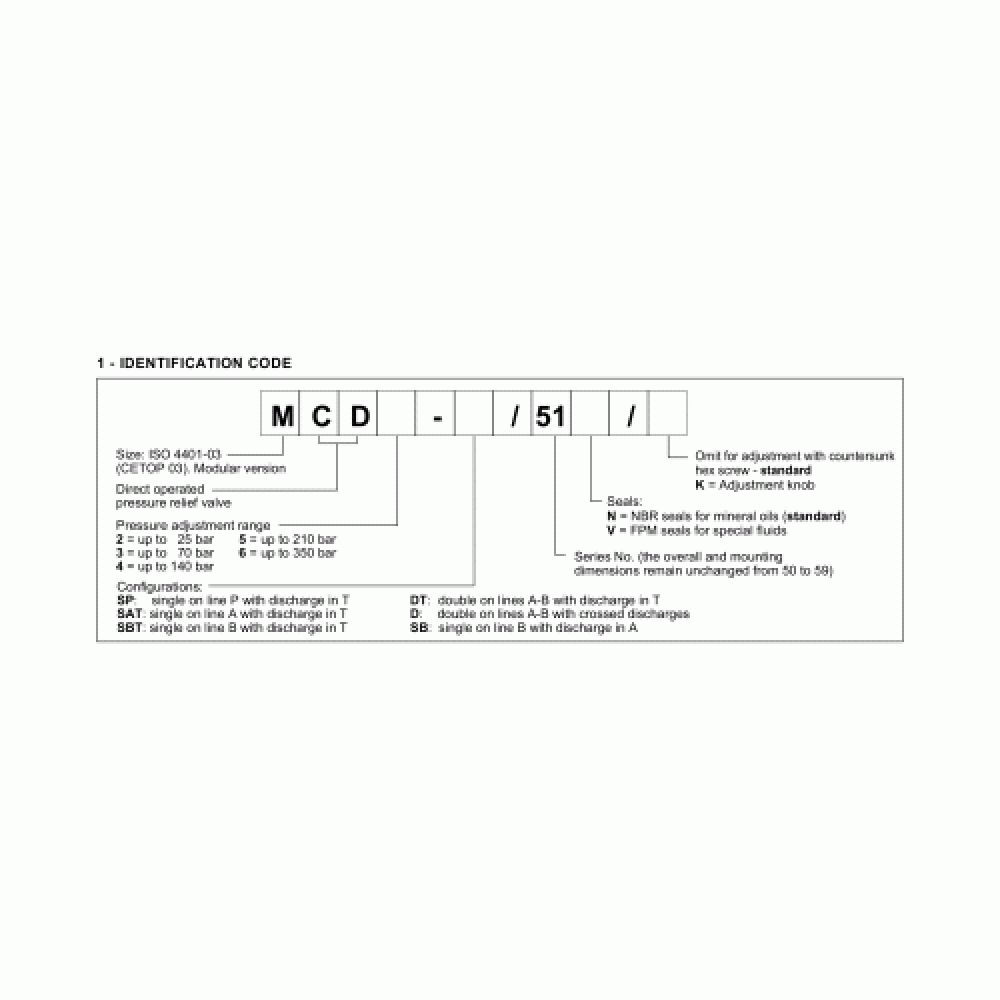

  • Duplomatic MCD - Ordering Information

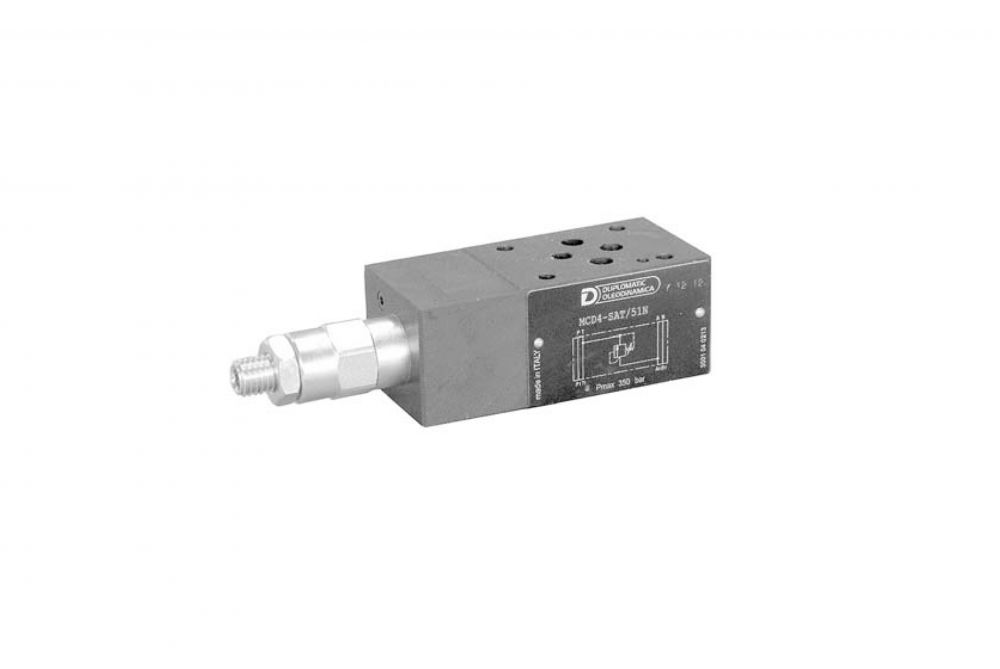

Duplomatic MCD – Direct Operated Pressure Relief Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic MCD valve is a direct operated pressure relief valve made as a modular version with mounting surface according to the ISO 4401 (CETOP RP 121H) standards.

It can be assembled with all ISO 4401-03 (CETOP 03) modular valves without use of pipes, using suitable tie-rods or bolts.

It is available in versions for single adjustment on one control line, or dual on two control lines and with four different pressure adjustment ranges.

This valve is normally used as a hydraulic circuit pressure limiting device or as a limiting device of the pressure peaks generated during the movement of hydraulic actuators.

It is normally supplied with a hexagonal head adjustment screw, locking nut and limitation of the maximum adjustment travel.

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Maximum Flow Rate in Controlled Lines 50 l/min
Maximum Flow Rate in Free Lines 75 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 / +80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
MCD-SP / MCD-SAT / MCD-SBT / MCD-SB Mass 1.4 kg
MCD-DT / MCD-D Mass 2 kg

Duplomatic – MCD – Direct Operated Pressure Relief Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Pressure Control Relief Valves
