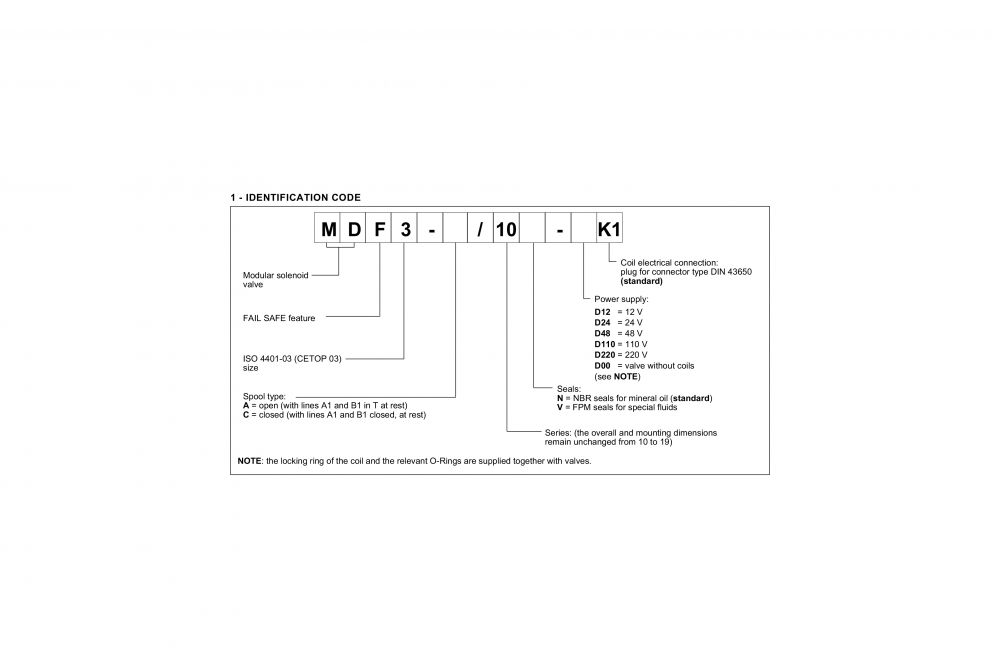

  • Duplomatic MDF3 - Ordering Information

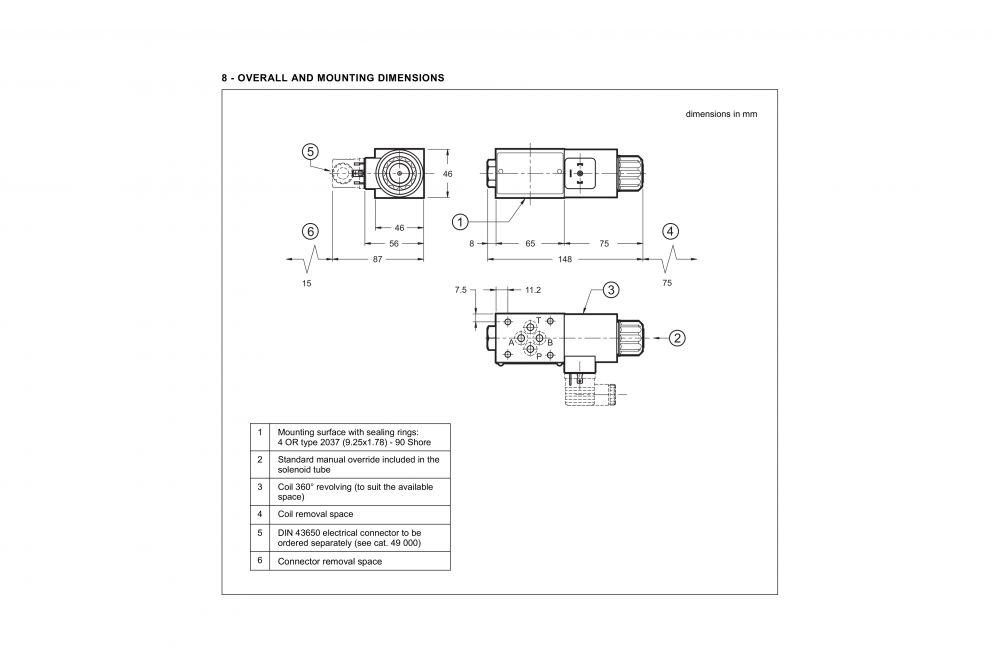

  • Duplomatic MDF3 - Mounting Dimensions

Duplomatic MDF3 – Shut Off Solenoid Valve – Modular Version

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

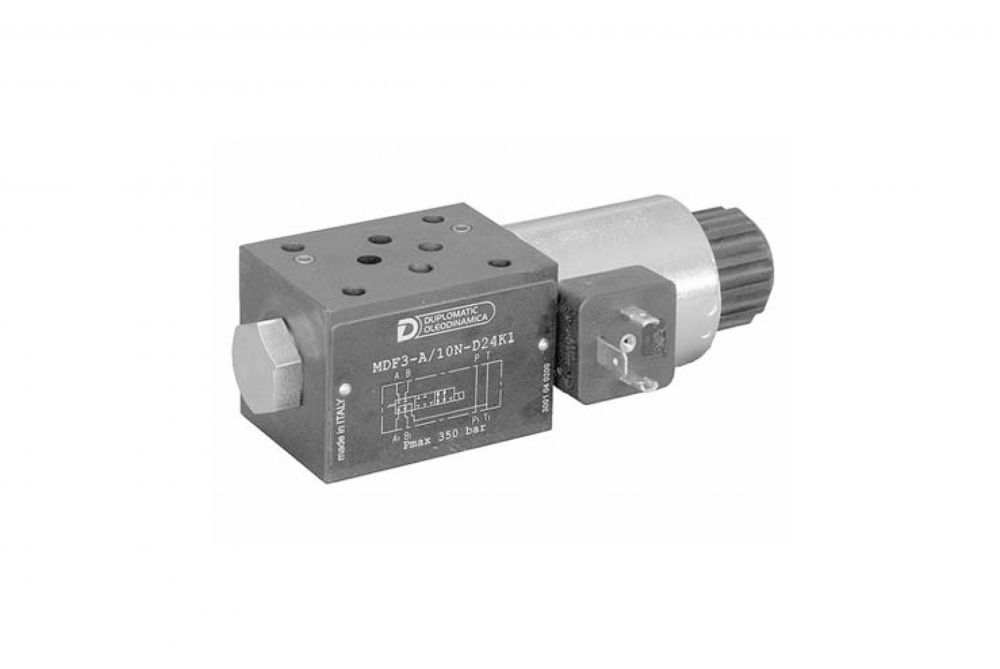

The Duplomatic MDF3 Shut-off solenoid valve, direct-acting, available in two versions at rest: with lines blocked and with unloading lines.

It is normally used with directional control servo valves to guarantee the circuit’s safety in case of a power failure.

Wet armature solenoids with interchangeable coils are used.

Product Specification

Description Units
Maximum Operating Pressure – Ports P – A – B 350 bar
Maximum Flow Rate 50 l/min
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Mass 1,5 kg

Duplomatic – MDF3 – Shut Off Solenoid Valve – Modular Version – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Direct Solenoid Operated
