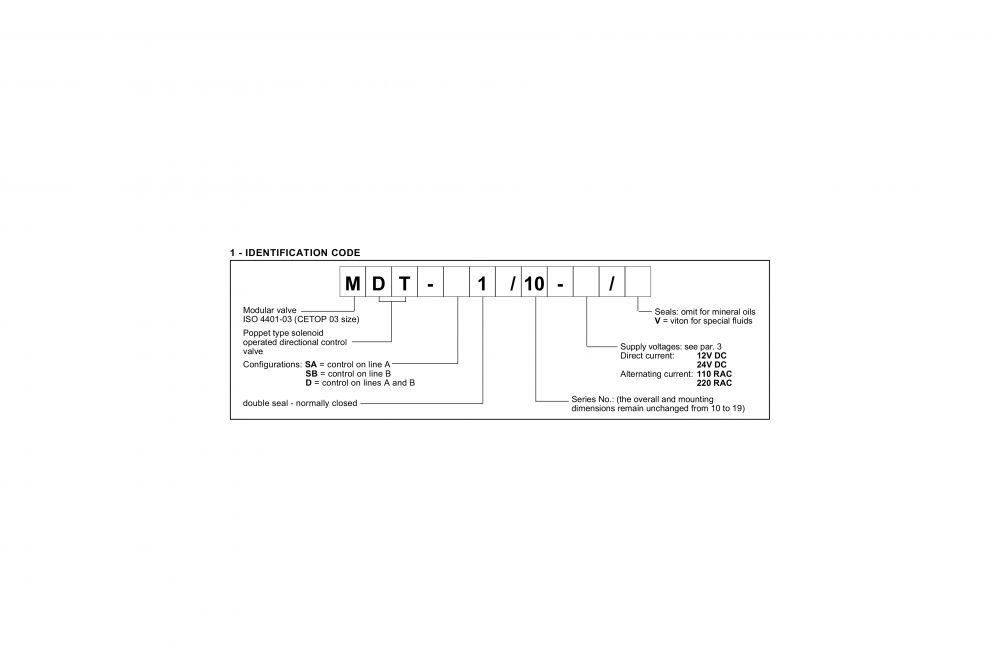

  • Duplomatic MDT - Ordering Information

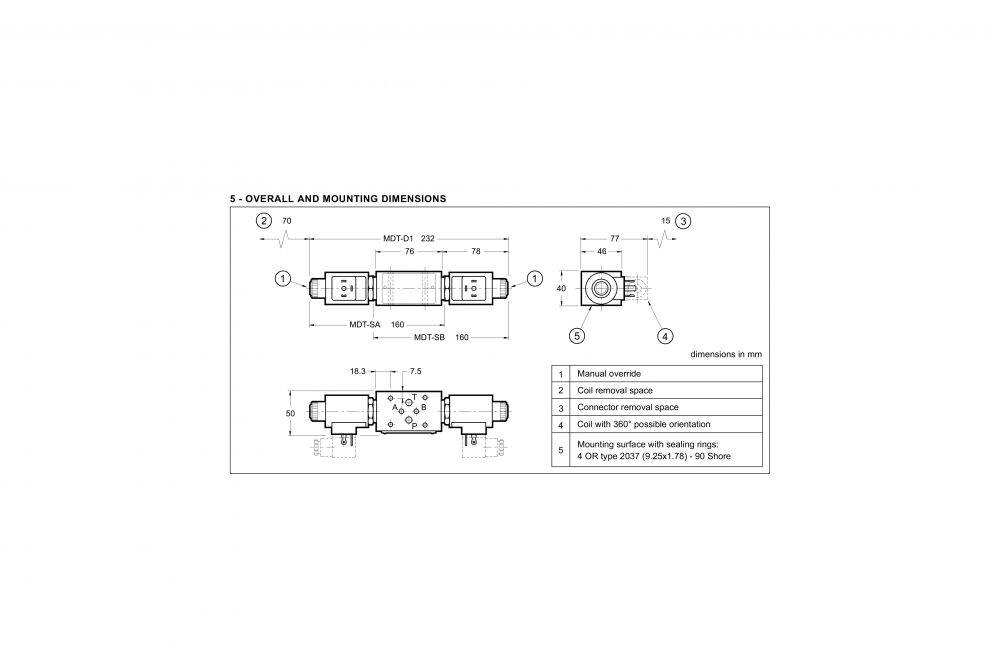

  • Duplomatic MDT - Mounting Dimensions

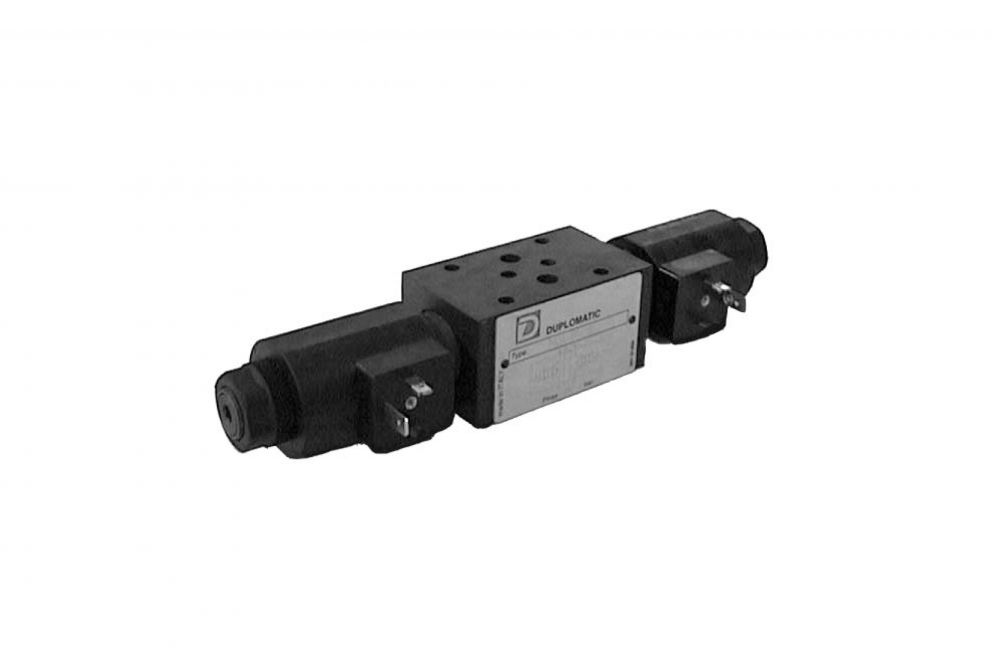

Duplomatic MDT – Solenoid Operated Directional Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.The Duplomatic MDT Direct-acting control hydraulic valve, CETOP 03, with conical seat seal, for maintaining hydraulic actuators in position.

Two-way execution, normally closed, with seal in both directions when solenoid is de-energized.

Leakproof solenoids in oil bath, available in AC and DC supply voltages.

Tech specs: pmax: 250 bar – Qmax: 25 l/min

Product Specification

Description Units
Maximum Operating Pressure 250 bar
Maximum Flow Rate in Controlled Lines 25 l/min
Maximum Flow Rate in Free Lines 65 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 /+80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
MDT-D Mass 1,7 kg
MDT-SA/SB Mass 1,2 kg

Duplomatic – MDT – Solenoid Operated Directional Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Poppet Type Valves
