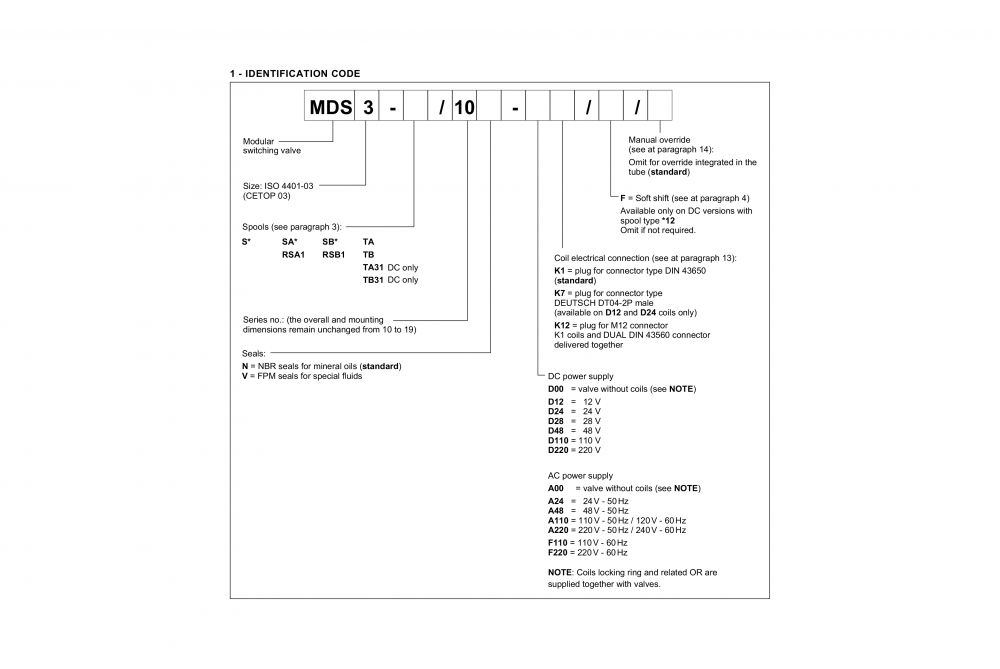

  • Duplomatic MDS3 - Ordering Information

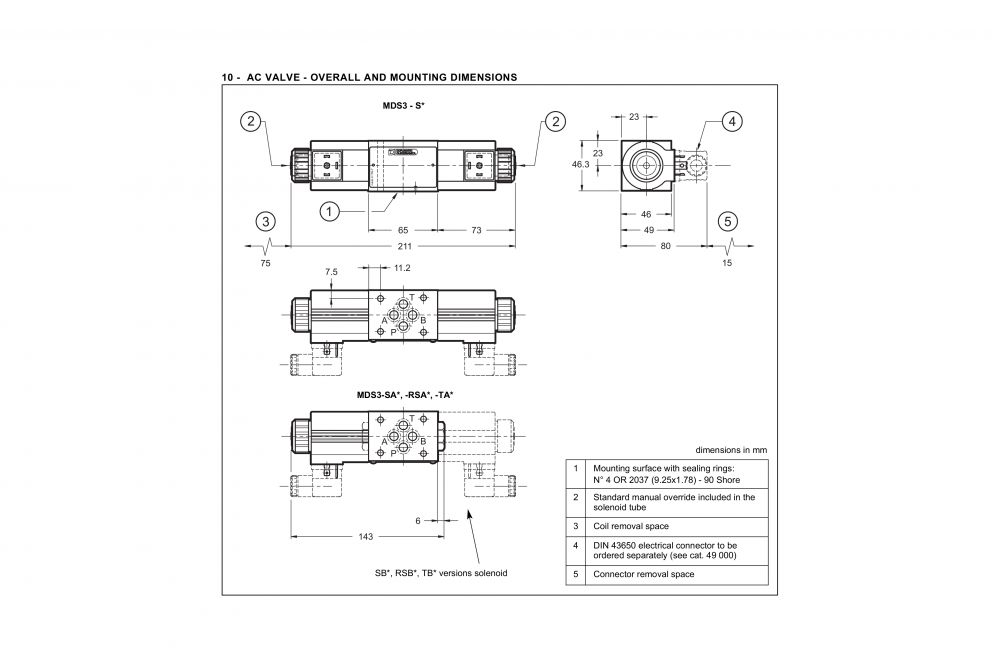

  • Duplomatic MDS3 - AC Mounting Dimensions
  • Duplomatic MDS3 - DC Mounting Dimensions

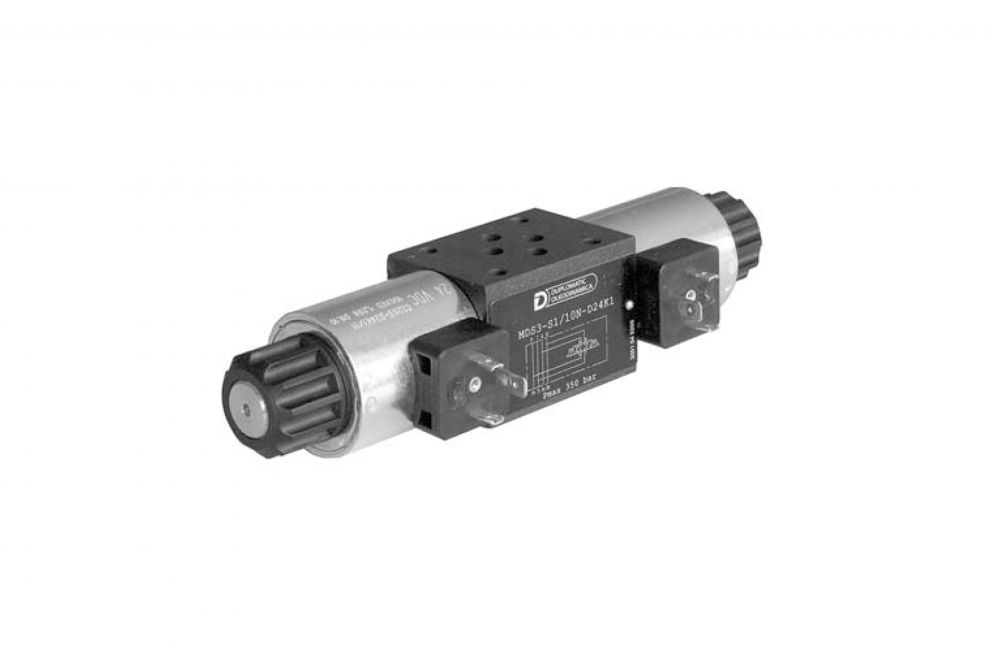

Duplomatic MSD3 – Solenoid Operated Directional Control Valve – Modular

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.The Duplomatic MDS3 valve is used to switch multiple flow directions, or to select pressure values.

The oil passage holes pass right through the entire valve body and due to this particular design feature, the MDS3 can be assembled with all ISO 4401-03 (CETOP 03) modular valves.

The special connection of the valve in parallel to the P – T – A – B lines of the circuit allows easy construction of differents hydraulic configurations, reducing pressure drops to a minimum.

Soft-shift feature available for some DC versions.

Product Specification

Description Units
Maximum Operating Pressure – Ports P – A – B 350 bar
Maximum Operating Pressure – T Port (DC Version) 210 bar
Maximum Operating Pressure – T Port (AC Version) 140 bar
Maximum Flow on P – A – B Ports 50 l/min
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Single Solenoid Valve Mass 1,5 kg
Double Solenoid Valve Mass 2 kg

Duplomatic – MSD3 – Solenoid Operated Directional Control Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Direct Solenoid Operated
