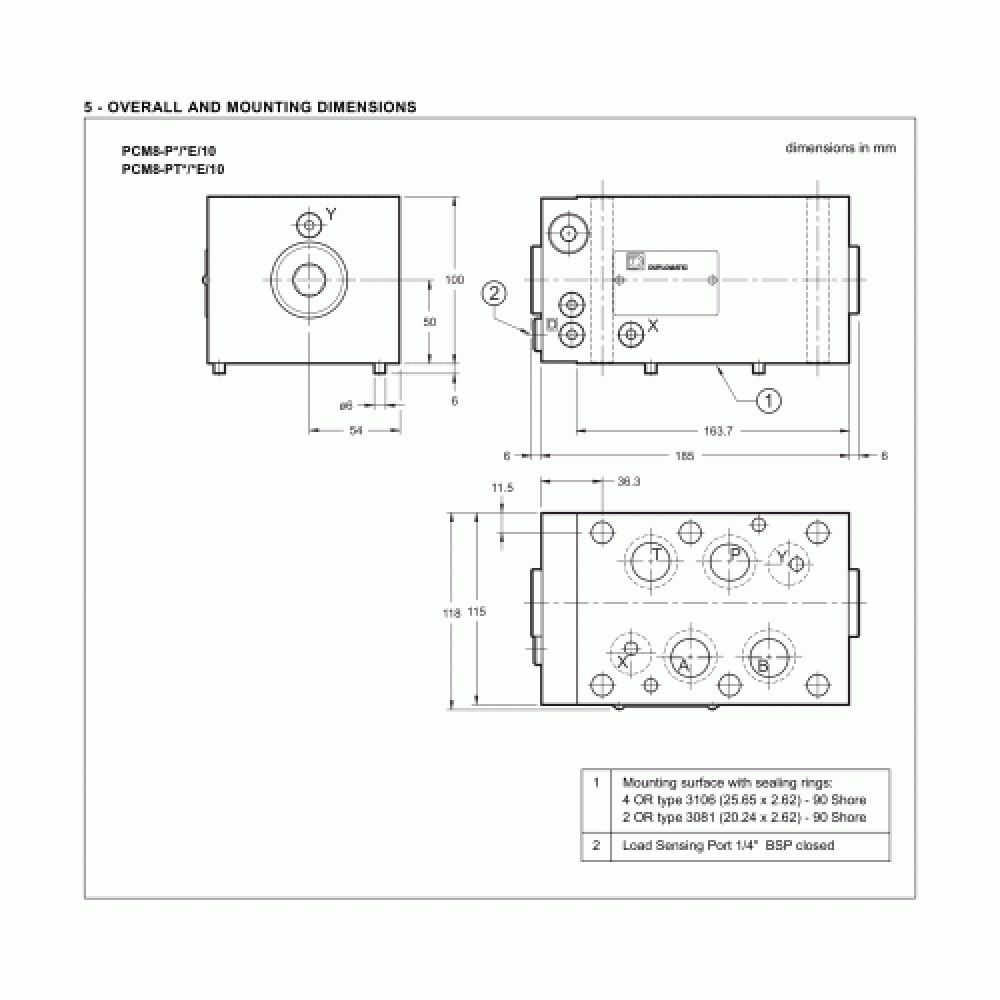

  • Duplomatic PCM8 - Mounting Dimensions
  • Duplomatic PCM8 - Three Way Ordering Information
  • Duplomatic PCM8 - Two Way Ordering Information

Duplomatic PCM8 – Two and Three Way Pressure Compensator

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

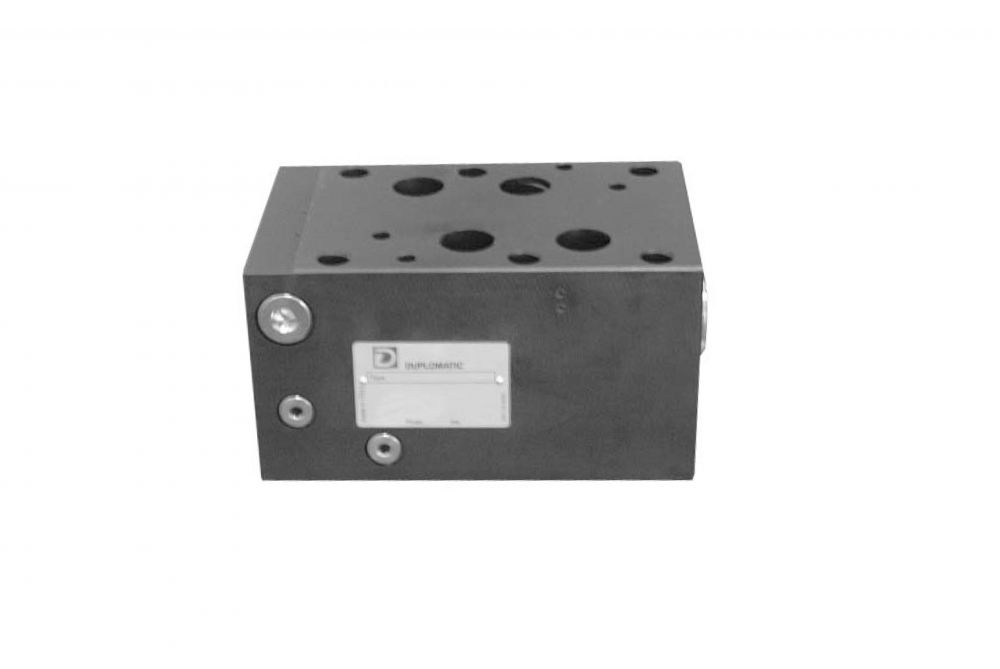

The PCM8 valve is a two or three-way pressure compensator, developed as a modular version with mounting surface according to ISO 4401 (CETOP RP 121H).
Its function is to keep the pressure drop setting (characteristic ∆p) between the line P and alternatively the lines A and B at a constant level.

Normally used together with proportional directional valves, in order to control the flow rate independently of the pressure variations.
The selection of the piloting pressure on the lines A and B is carried out automatically via a shuttle check valve built into the compensator.
They are available with fixed adjustment (characteristic ∆p) of 4 and 8 bar.
The load sensing port can also be used as pressure gauge port or as remote pressure control.

Product Specification

Description Units
Maximum Operating Pressure 320 bar
Characteristic 4 – 8 bar
Max Flow Rate 300 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 / +80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Mass 13,5 kg

Duplomatic – PCM8 – Two and Three Way Pressure Compensator – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Pressure Control Relief Valves
