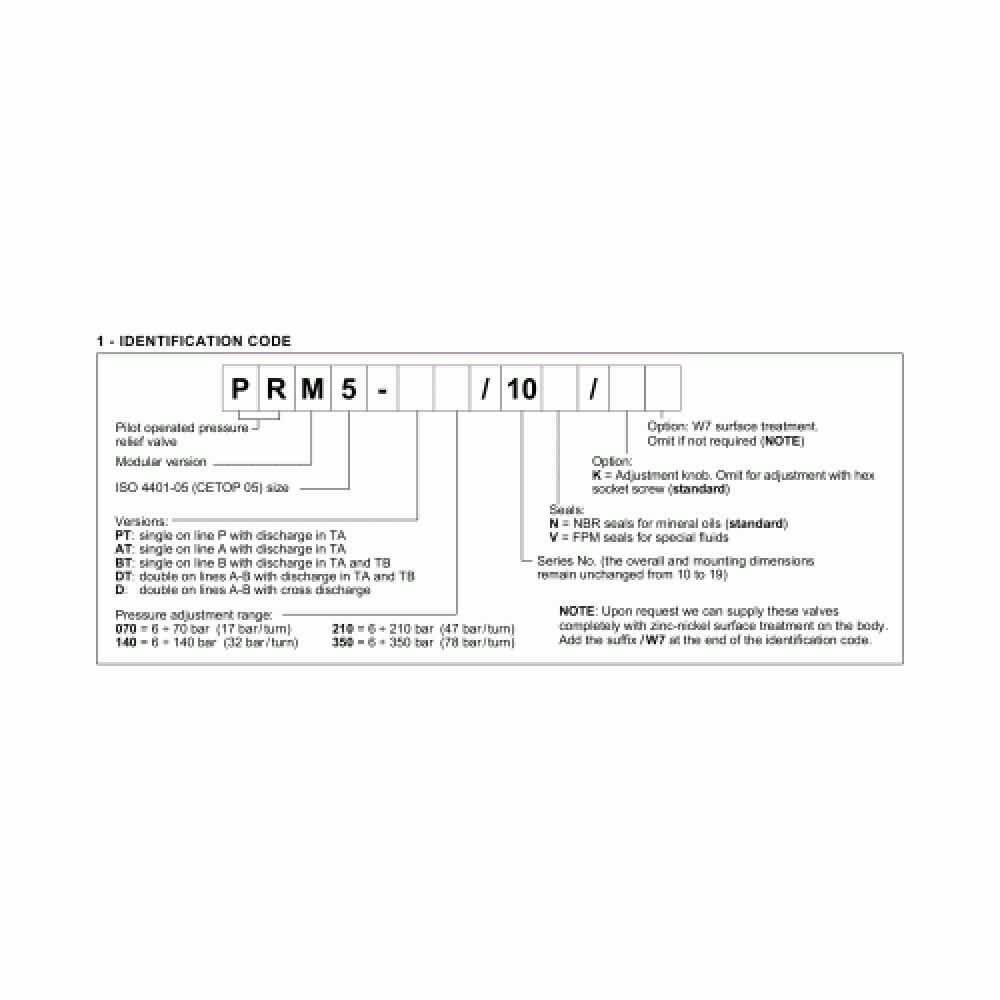

  • Duplomatic PRM5 - Ordering Information

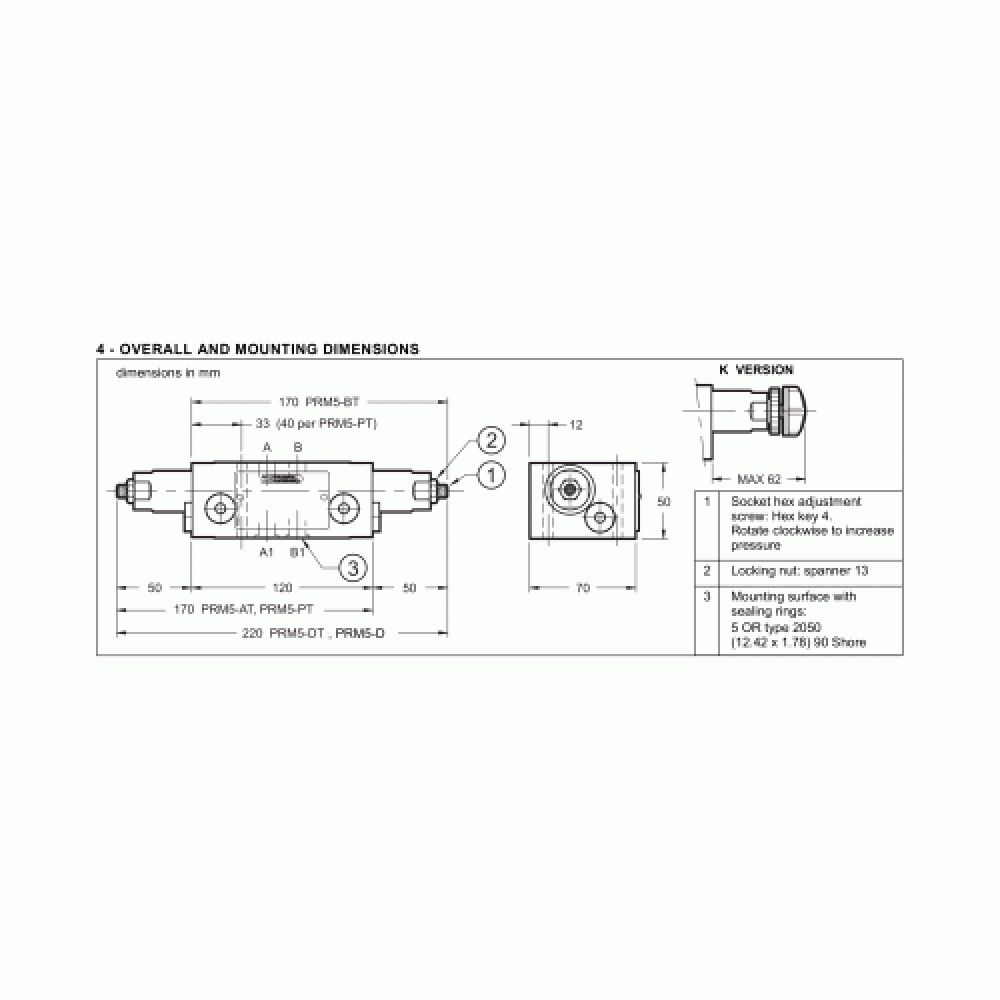

  • Duplomatic PRM5 - Mounting Dimensions

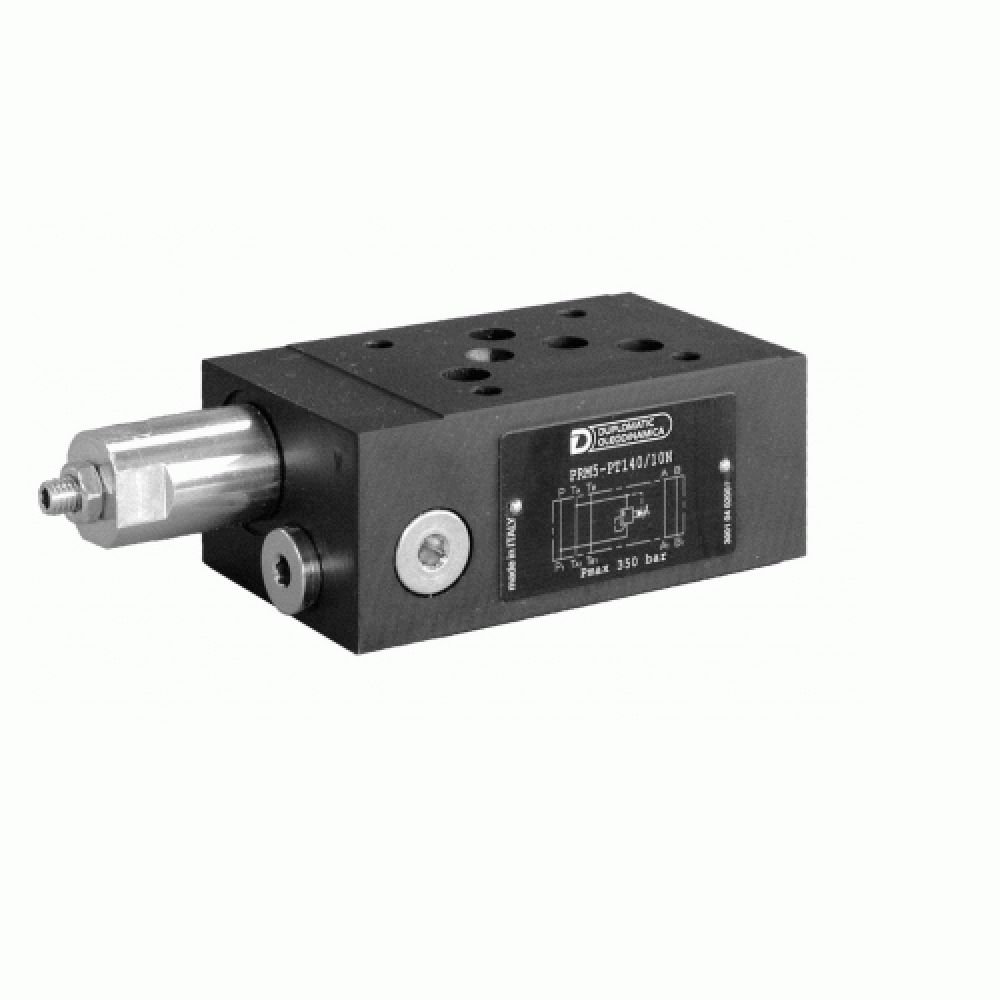

Duplomatic PRM5 – Pilot Operated Pressure Relief Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The PRM5 valve is a pilot operated pressure relief valve made as a modular version with mounting surface according to ISO 4401 (CETOP RP121H) standards.

It can be assembled with all ISO 4401-05 modular valves without the use of pipes, using suitable tie-rods or bolts.

Versions are available for single adjustment on one control line, or dual on two control lines and with four different pressure adjustment ranges.

This valve is used as a hydraulic circuit pressure limiting device.

It is supplied with an hexagonal head adjustment screw and locking nut. It is also available with knob.

P max 350 bar – Q max 120 l/min

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Maximum Flow Rate 120 l/min
Ambient Temperature Range -20 / +60 °C
Fluid Temperature Range -20 / +80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
PRM5-PT, -AT, -BT Mass 2,8 kg
PRM5-DT, -D Mass 3 kg

Duplomatic – PRM5 – Pilot Operated Pressure Relief Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Pressure Control Relief Valves
