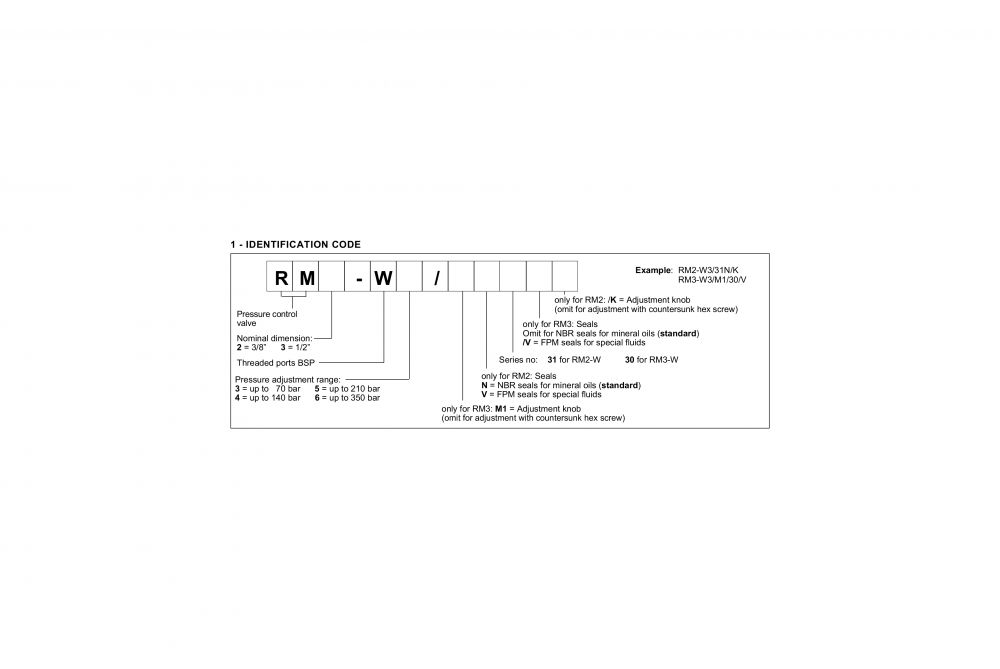

  • Duplomatic RM-W - Ordering Information

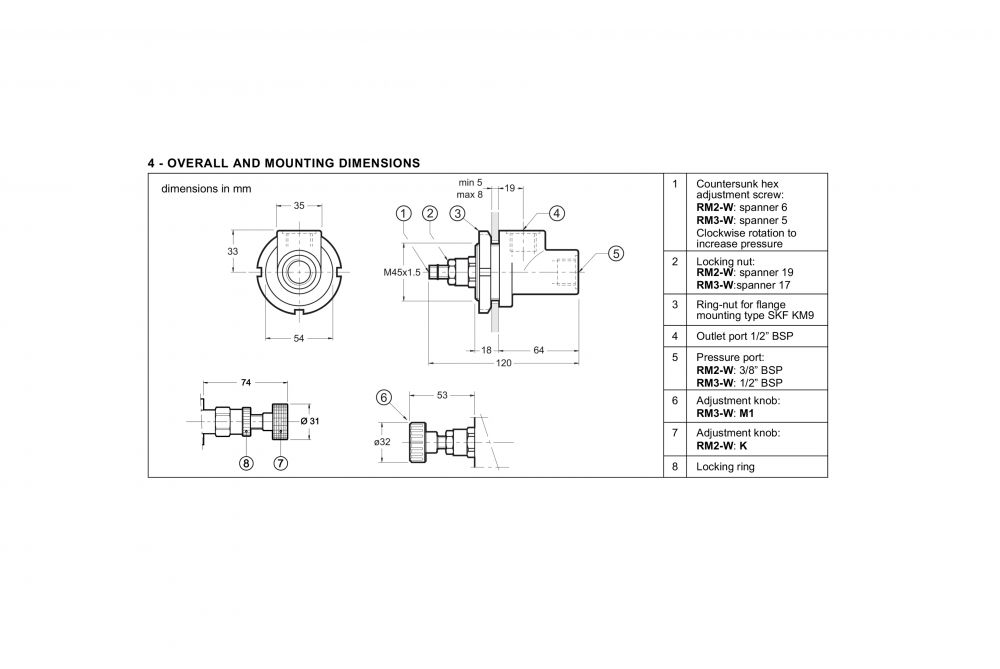

  • Duplomatic RM-W - Mounting Dimensions

Duplomatic RM*-W – Pressure Control Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

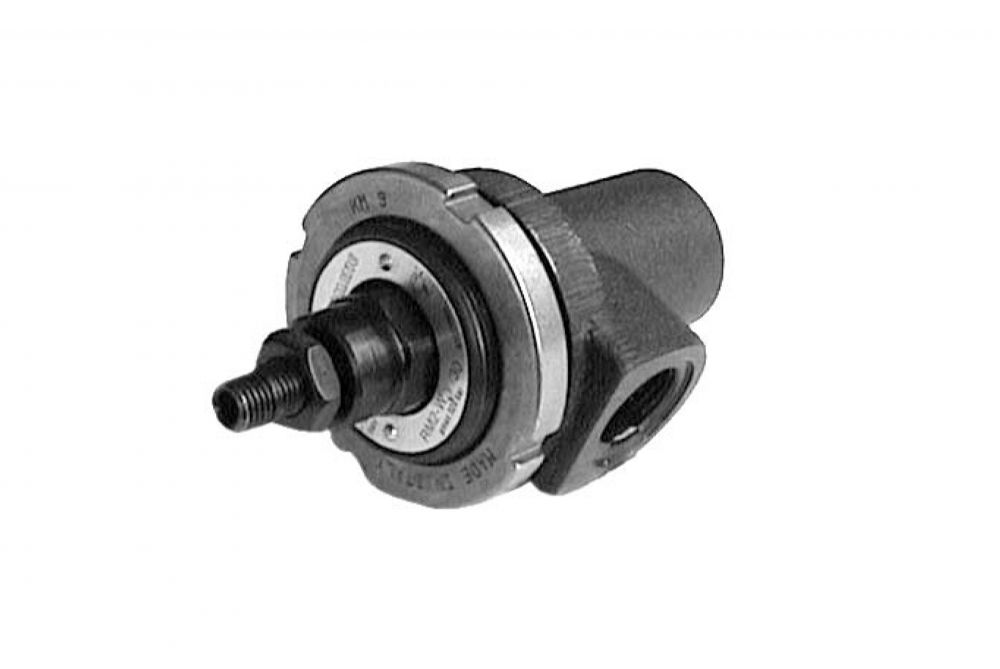

The Duplomatic RM*-W valves are pressure control valves with threaded ports for panel mounting with a ring-nut fastening.
They are available in two different sizes: RM2-W direct operated for flows up to 50 l/min; RM3-W pilot operated for flows up to 75 l/min.
They are normally supplied with a countersunk hex adjustment screw, a locking nut and a maximum adjustment fastener.

Product Specification

Description RM2-W RM3-W
Maximum Operating Pressure 350 bar 350 bar
Maximum Flow Rate 50 l/min 75 l/min
Ambient Temperature Range -20 / +50ºC -20 / +50ºC
Fluid Temperature Range -20 / +80ºC -20 / +80ºC
Recommended Filtration 10 ÷ 400 cSt 10 ÷ 400 cSt
Recommended Viscosity 25 cSt 25 cSt
Mass 0,9 kg 0,9 kg

Duplomatic – RM*-W – Pressure Control Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic
