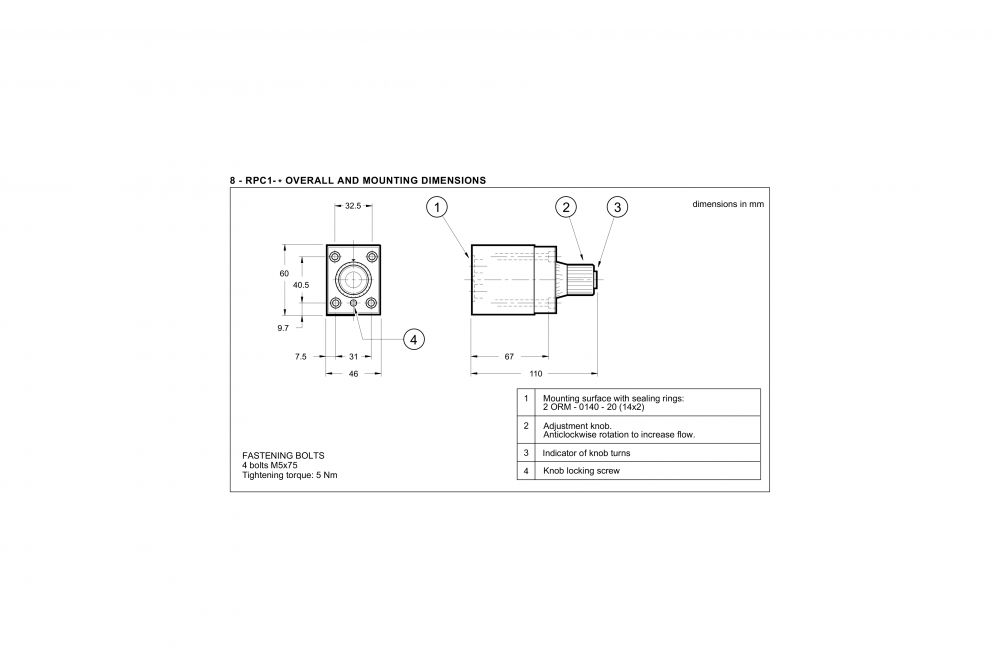

  • Duplomatic RPC1- Mounting Dimensions

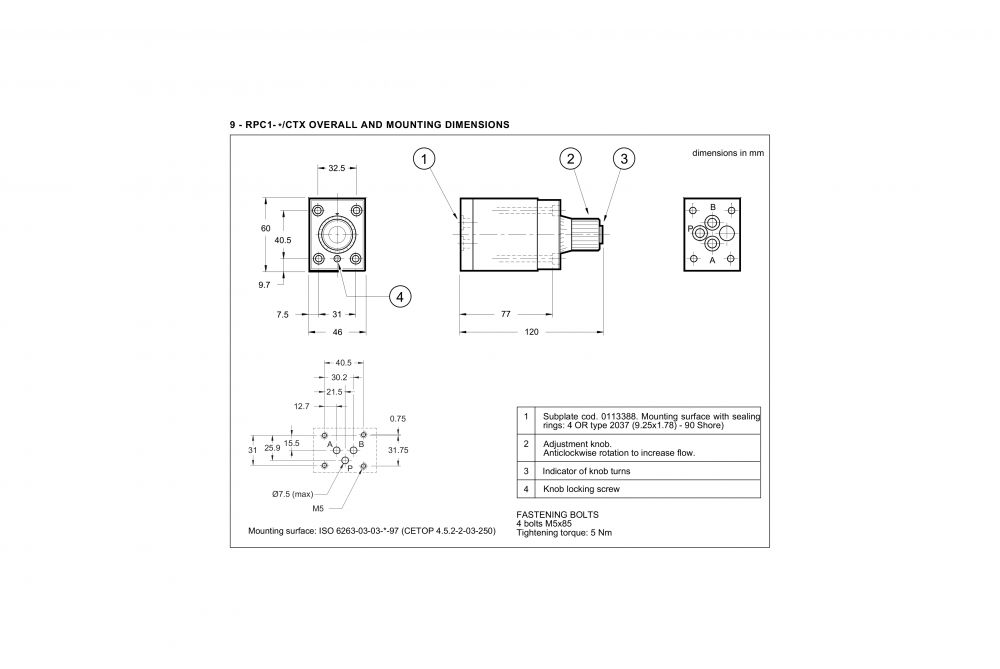

  • Duplomatic RPC1-*/CTX - Mounting Dimensions
  • Duplomatic RPC1 - Ordering Information

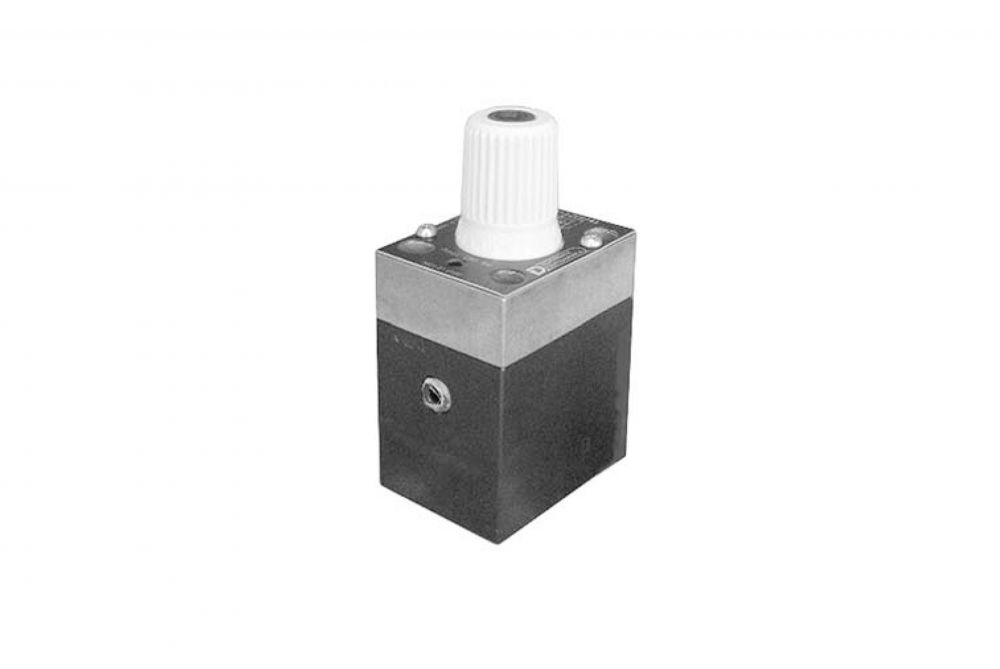

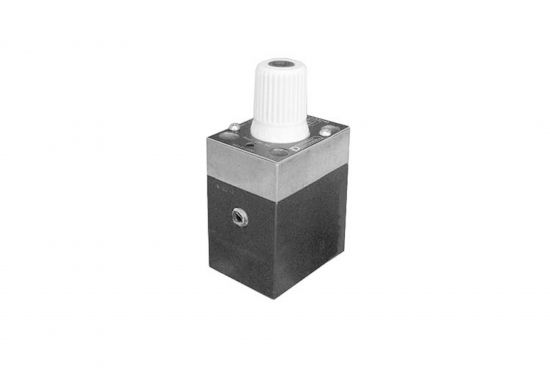

Duplomatic RPC1 – Pressure and Temperature Flow Control Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic RPC1 valve is a pressure and temperature compensated flow control valve.The flow is adjusted by a calibrated knob that modulates the opening of the control gap and can be locked in any adjustment position. Adjustment is made with three turns,and upon request one-turn adjustment, RPC1*/M, is available.
It is available in seven different flow rate adjustment ranges from 0,5 l/min up to 30 l/min.

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Minimum Pressure Difference between A and B 10 bar
Check Valve Cracking Pressure 0,5 bar
Maximum Controlled Flow Rates 0,5-1-4-10-16-22-30 l/min
Minimum Controlled Flow Rate (for 0,5-1 and 4 l/min) 0,025 l/min
Maximum Flow Rate in Free Flow Direction 40 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 / +80 °C

Duplomatic – RPC1 – Pressure and Temperature Flow Control Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Flow Control Valves, Compensated 2-Way Flow Control Valves
