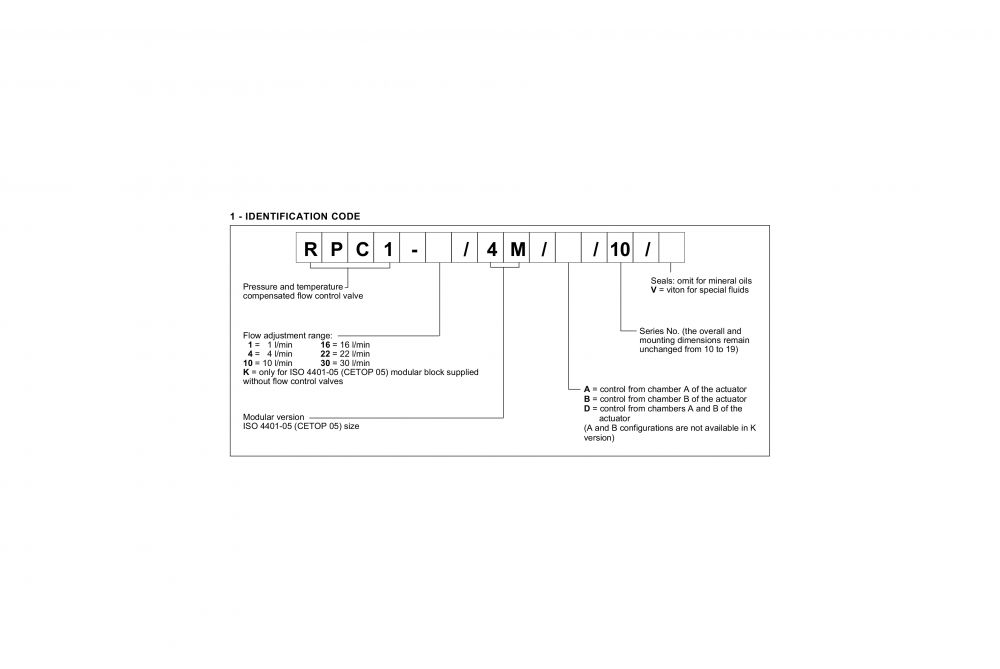

  • Duplomatic RPC1-*/4M - Ordering Information]

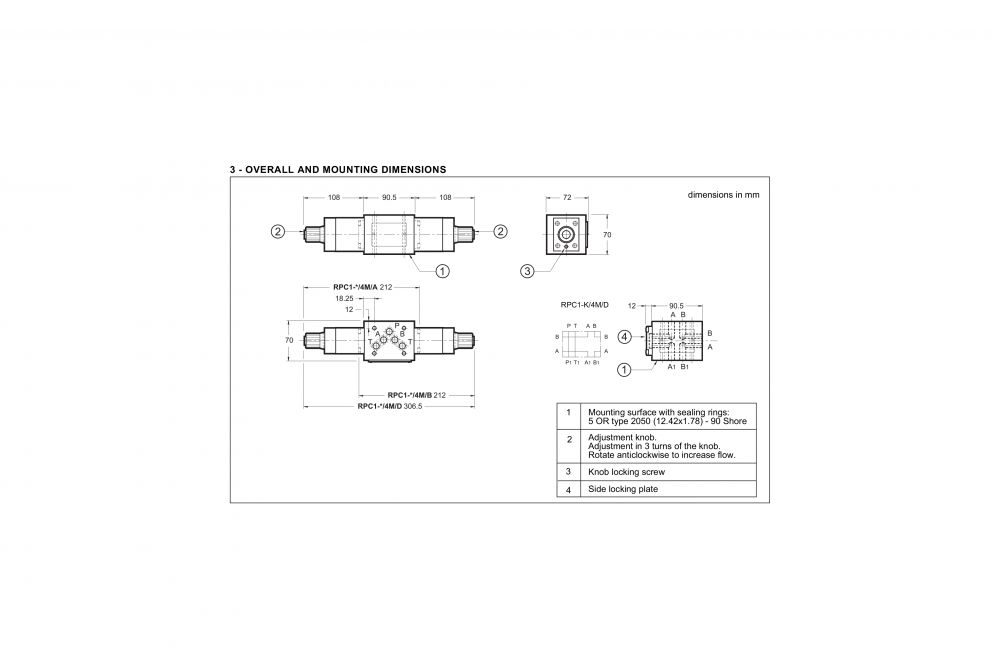

  • Duplomatic RPC1-*/4M - Mounting Dimensions

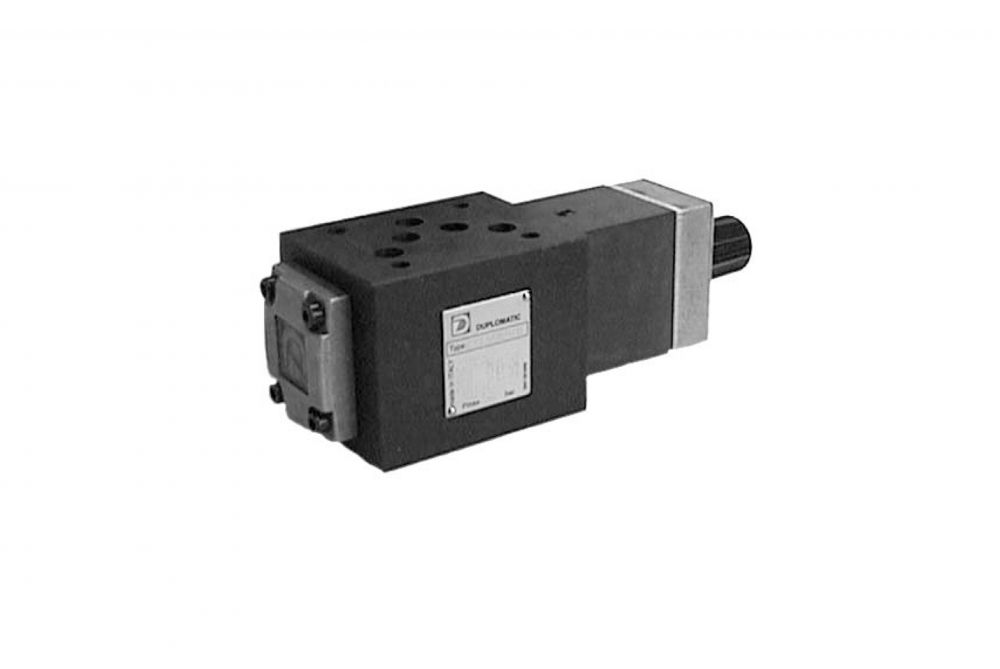

Duplomatic RPC1*/4M – Flow Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic RPC1-*/4M valve is a flow control valve with pressure and temperature compensation, made as a modular version with mounting surface according to the ISO 4401 (CETOP RP121H) standards.

Can be assembled quickly under the ISO 4401-05 (CETOP 05) directional solenoid valves and allows easy execution of hydraulic circuits where speed control of the actuators is required.

Available in six flow adjustment ranges up to 30 l/min.

Product Specification

Description Units
Maximum Operating Pressure 250 bar
Maximum Flow Rate in Controlled Lines 1-4-10-16-22-30 l/min
Maximum Flow Rate in the Free Lines 100 l/min
Reverse Free Flow Maximum Flow Rate 40 l/min
Ambient Temperature Range -20 /+50°C
Fluid Temperature Range -20 /+80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
RPC1-*/4M/A-B Mass 4,3 kg
RPC1-*/4M/D Mass 5,6 kg
Only Modular Block ISO 4401-03 without Flow Control Valves: RPC1-K/4M/D Mass 3 kg

Duplomatic – RPC1*/4M – Flow Control Valve – Data Sheet
