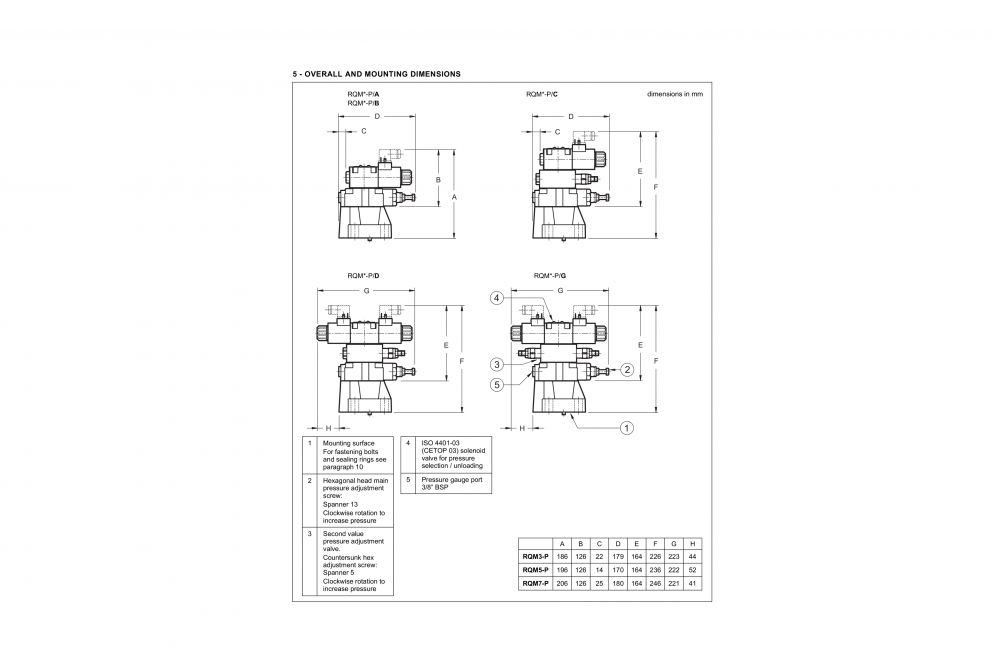

  • Duplomatic RQM-P - Mounting Dimensions

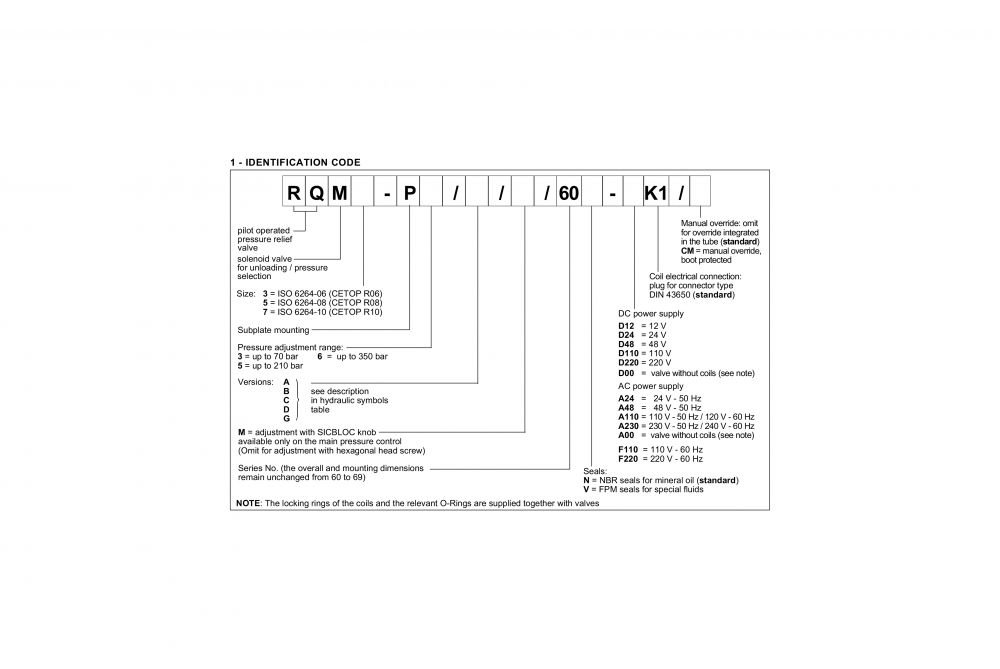

  • Duplomatic RQM-P - Ordering Information

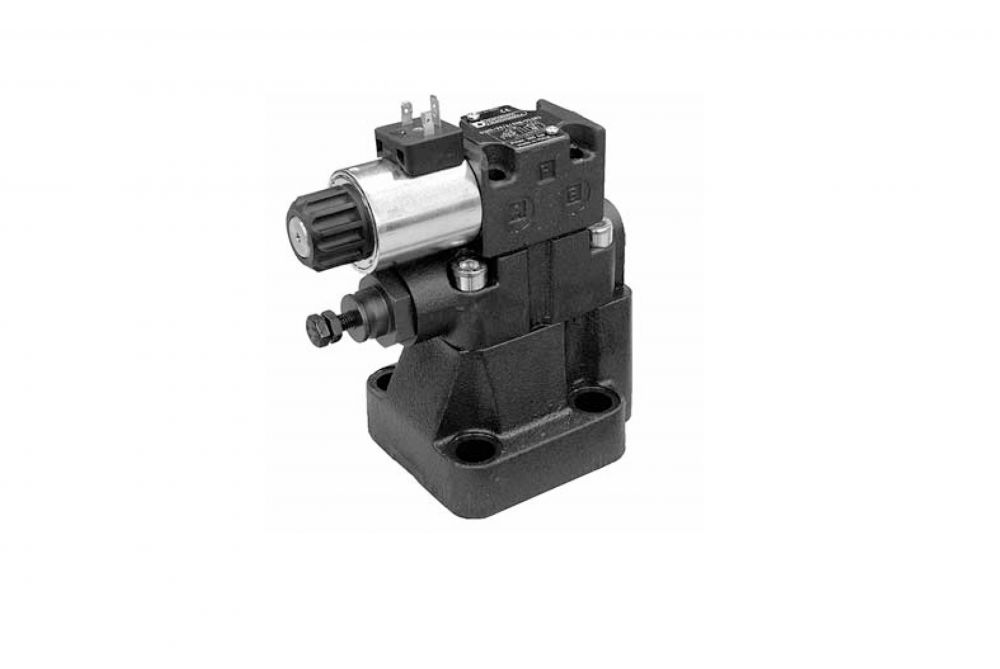

Duplomatic RQM*-P – Solenoid Operated Pressure Relief Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.
The Duplomatic RQM*-P valves are pressure relief valves available in three nominal sizes for flow up to 500 l/min.
They are available in ISO 6264 (CETOP RP 121H) subplate mounting version.
Available in five versions that allow, by means of a solenoid valve, unloading of the total flow and selection up to three pressure values.
The adjustment of the second and third pressure values is obtained by a pressure relief valve placed between the main stage and the solenoid valve.
It is supplied with an hexagonal head adjustment screw. Upon request, it can be equipped with a SICBLOC adjustment knob on the main pressure control.

Product Specification

Description RQM3-P RQM5-P RQM7-P
Maximum Operating Pressure 350 bar 350 bar 350 bar
Maximum Flow Rate 200 l/min 400l/min 500 l/min
Ambient Temperature Range -20 / +50ºC -20 / +50ºC -20 / +50ºC
Fluid Temperature Range -20 / +80ºC -20 / +80ºC -20 / +80ºC
Fluid Viscosity Range 10 ÷ 400 cSt 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 class 20/18/15 According to ISO 4406:1999 class 20/18/15 According to ISO 4406:1999 class 20/18/15
Recommended Viscosity 25 cSt 25 cSt 25 cSt

Duplomatic – RQM*-P – Solenoid Operated Pressure Relief Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Pressure Relief Valves

Pressure Relief Valves with Unloading
