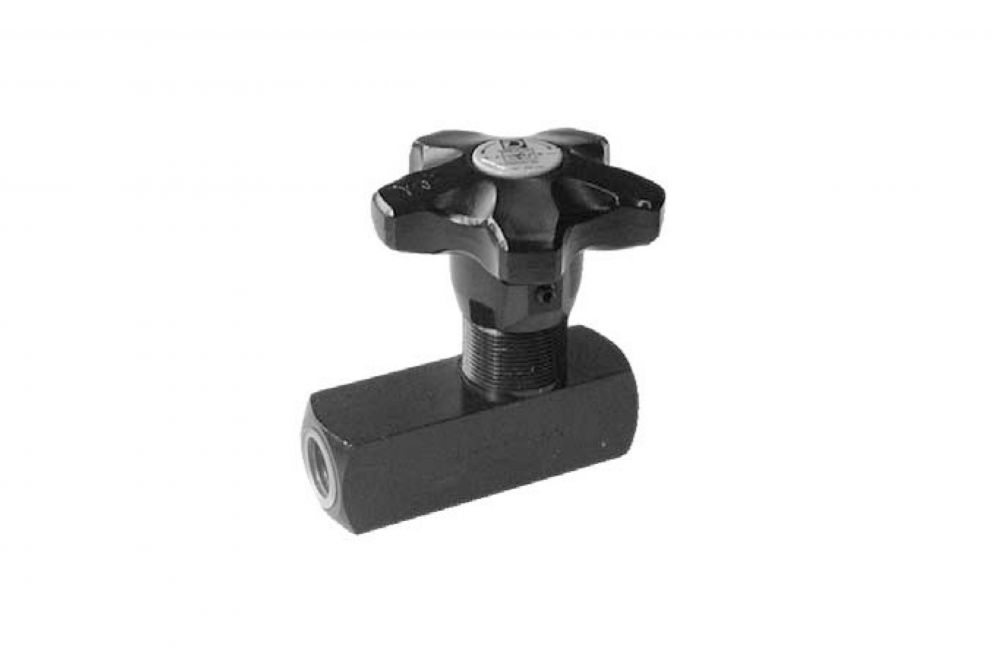

  • Duplomatic RSN - Single Acting Throttle Check Valve

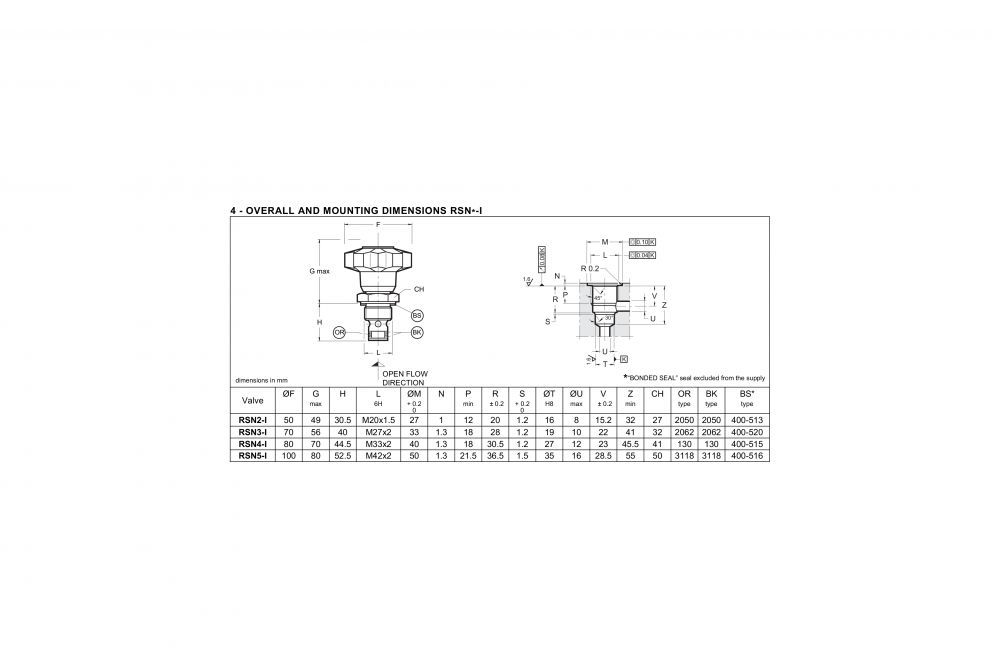

  • Duplomatic RSN-I - Mounting Dimensions

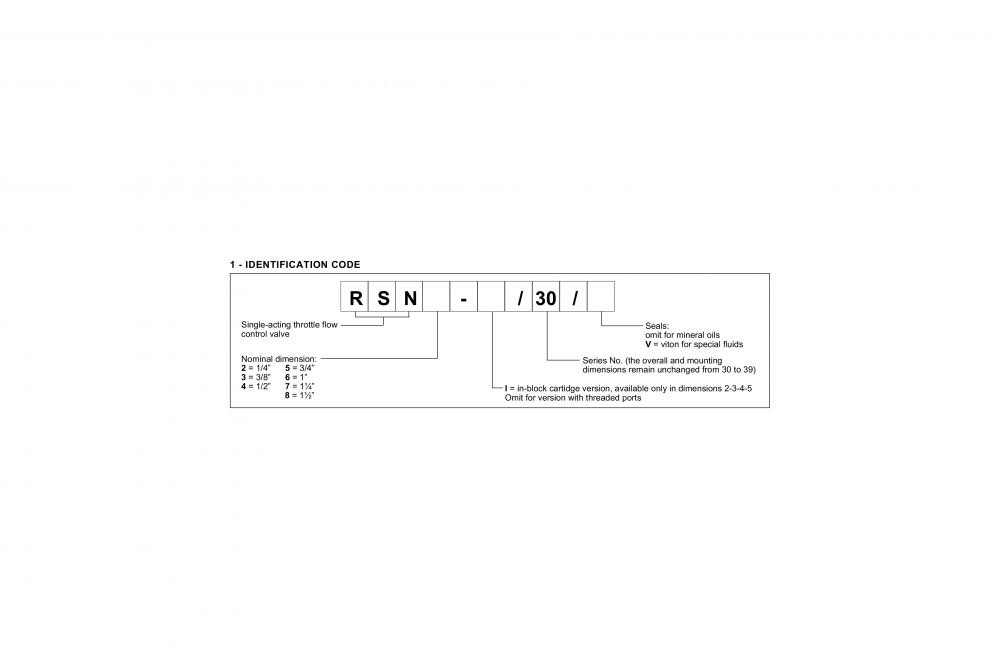

  • Duplomatic RSN - Ordering Information
  • Duplomatic RSN - Mounting Dimensions

Duplomatic RSN* – Single Acting Throttle Flow Control Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic RSN* and RSN*-I valves are single-acting throttle flow control valves for in-line mounting, directly in the line or as a cartridge complete with threading for in-block mounting.
Adjustment is obtained with a conical throttle that operates in a cylindrical seat and allows a good linearity of the adjusted flow.
They are also used as single direction flow shut-off valves since they guarantee good sealing when completely closed. They also allow a free return in theopposite direction.
The valves are always supplied with an adjustment knob that can be locked in any position with a transverse positioned grub screw, as may be required.

Product Specification

Valve Code
Port Dimensions BSP Nominal Flow Rate (l/min) Maximum Flow with Open Flow (l/min Mass (kg) Maximum Operating Pressure (bar)
RSN2 1/4″ 15 35  0,25 400
RSN3 3/8″ 30 80  0,5  400
RSN4 1/2″ 50 150  0,75 400
RSN5 3/4″ 80 200  1,6  400
RSN6 1″ 150 300  3,05  320
RSN7 1 ¼” 200 400  3,75 320
RSN8 1½” 220 500  5,75  320
RSN2-I 15 35  0,13  320
RSN3-I 30 80  0,25  320
RSN4-I 50 150  0,34  320
RSN5-I 80 200  0,62  320

Duplomatic – RSN* – Single Acting Throttle Flow Control Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Flow Control Valves, Throttle Flow Valves
