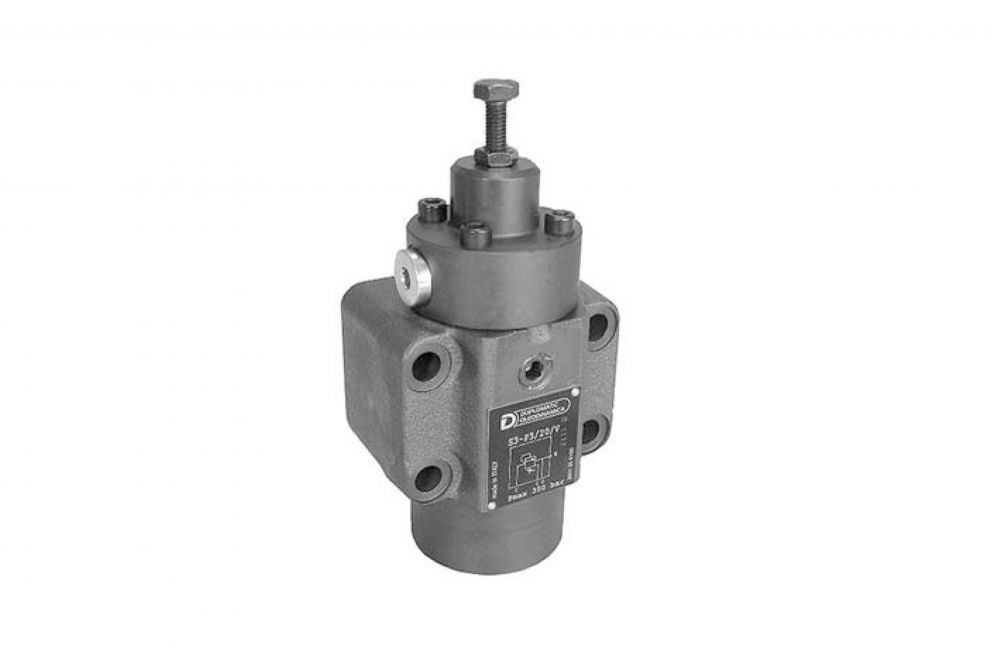

  • Duplomatic SUTXP - Sequence Valve

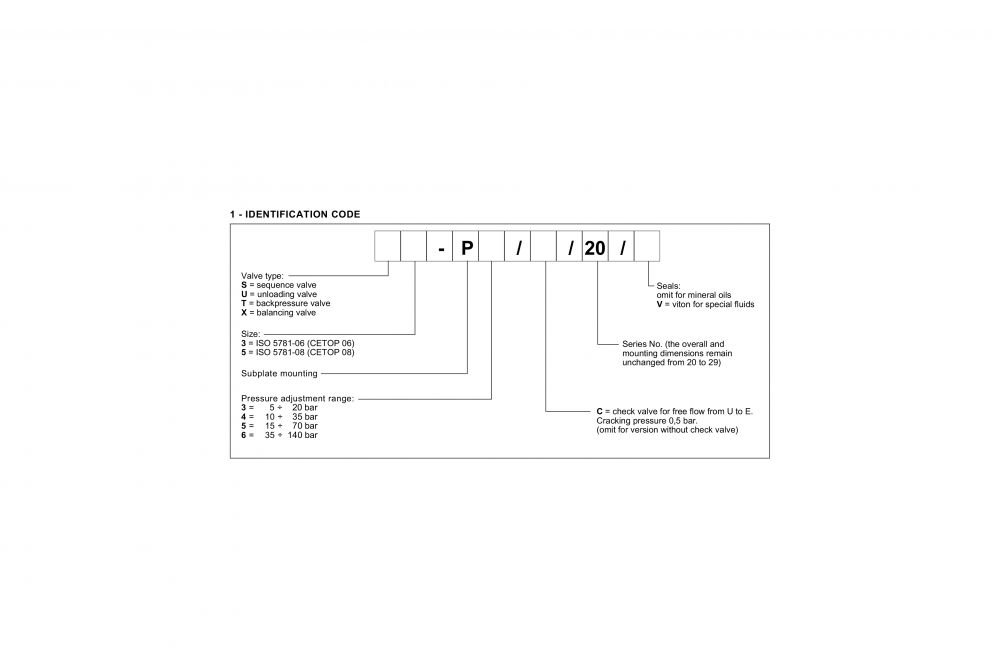

  • Duplomatic SUTXP - Ordering Information

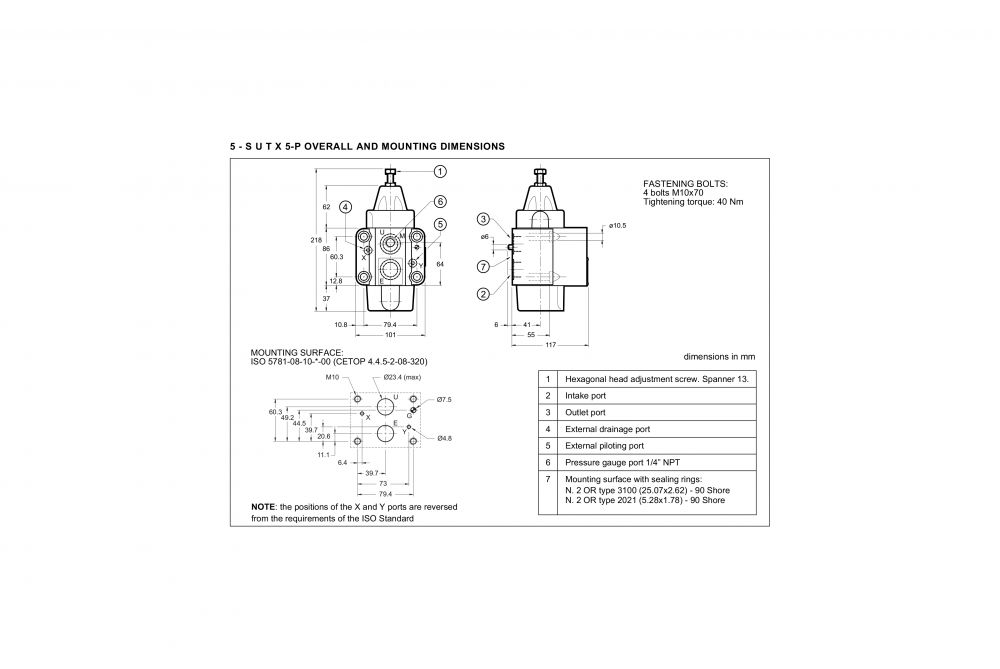

  • Duplomatic SUTX5-P - Mounting Dimensions
  • Duplomatic SUTX3-P - Mounting Dimensions

Duplomatic SUTX-P – Sequence Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic SUTX-P sequence valves are used for pressure control. They are direct-acting and normally closed.
They are available in two nominal sizes for flows up to 150 l/min and in four pressure adjustment ranges.
Opening takes place by means of a pilot pressure that, acting on a small piston, resists the force of the adjustment spring.
The valve can be easily modified to get any one of the four versions S,U,T,X turning the upper and the bottom covers in order to obtain the X and Y internal connections.

Product Specification

Description Size 3
Size 5
Maximum Operating Pressure 320 bar 250 bar
Maximum Flow Rate 4060 l/min 150 l/min
Ambient Temperature Range -20 / +50ºC -20 / +50ºC
Fluid Temperature Range -20 / +80ºC -20 / +80ºC
Recommended Filtration 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15 According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt 25 cSt
Mass 5,8 kg 6,7 kg

Duplomatic – SUTX-P – Sequence Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Pressure Relief Valves

Sequence and Balance Valves
