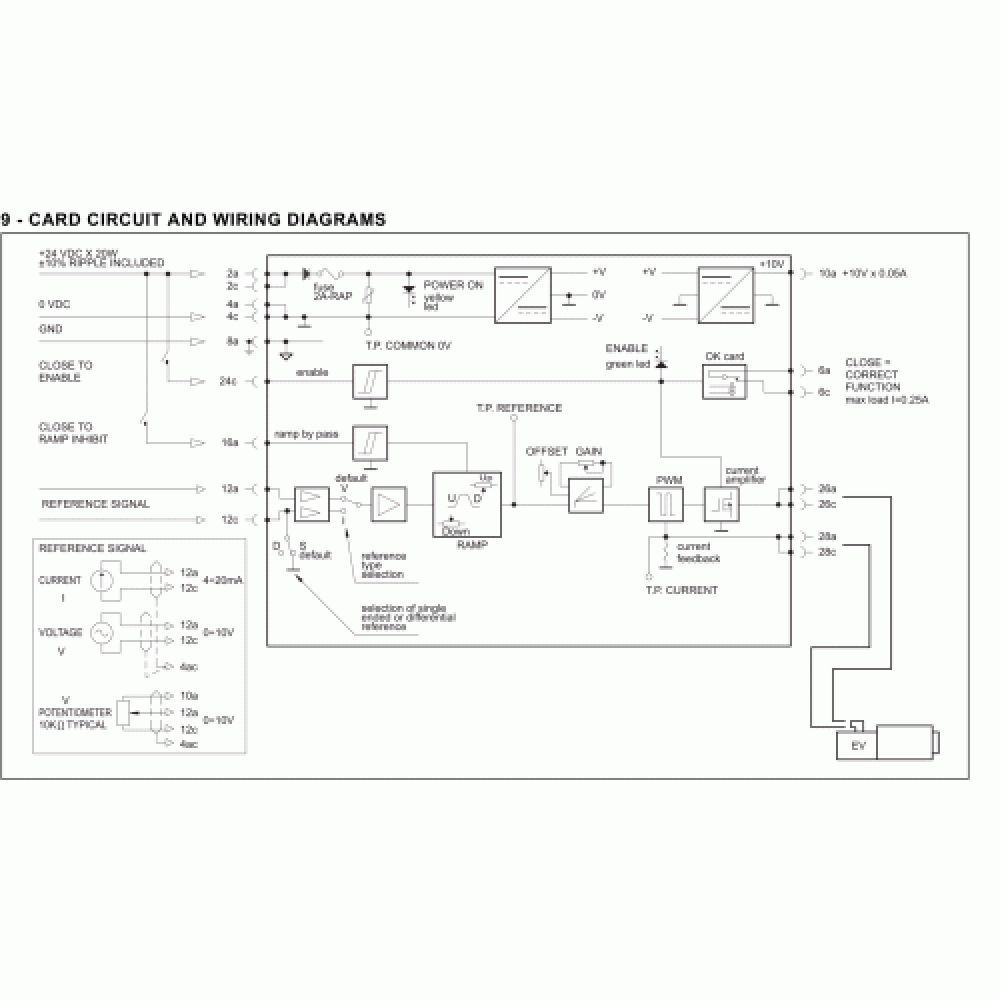

  • Duplomatic UEIK - Electronic Control Unit Circuit Diagram

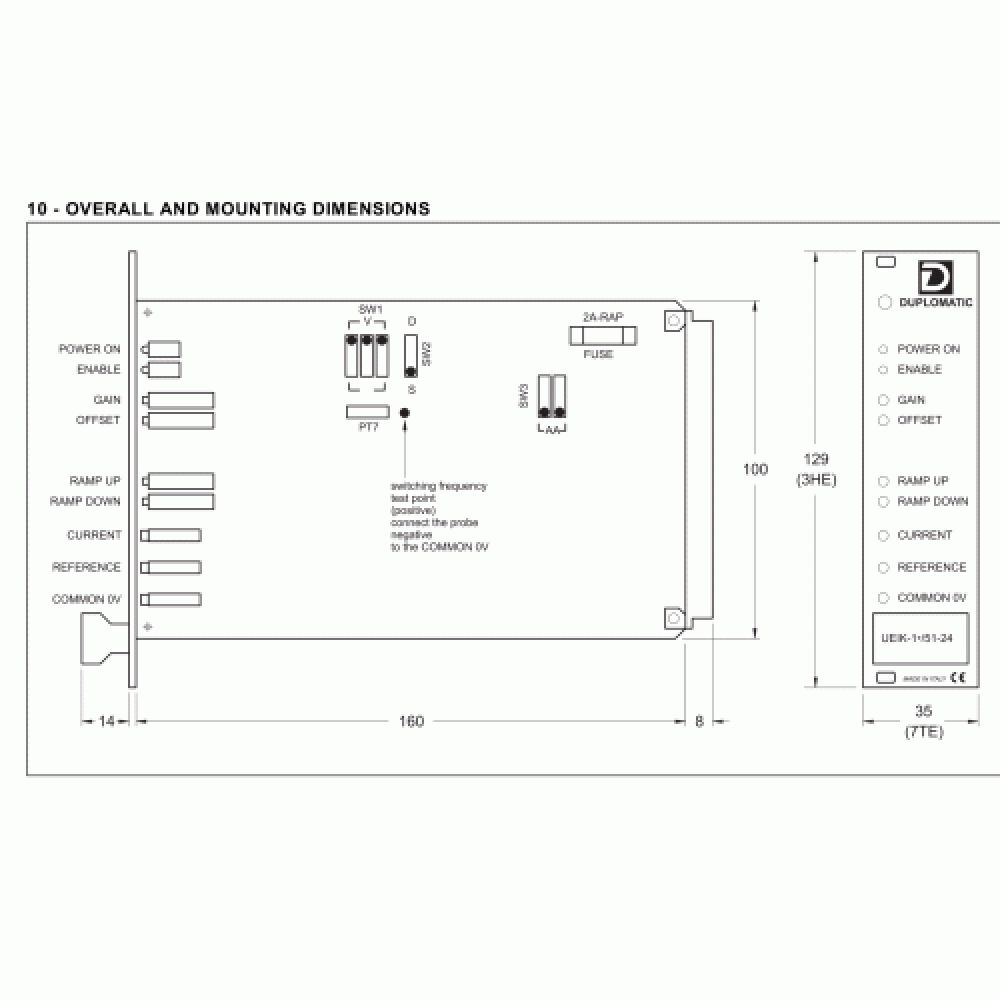

  • Duplomatic UEIK - Electronic Control Unit Mounting Dimensions
  • Duplomatic UEIK - Electronic Control Unit Ordering Information

Duplomatic UEIK-1* – Electronic Control Unit for Open Loop Single Solenoid Proportional Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

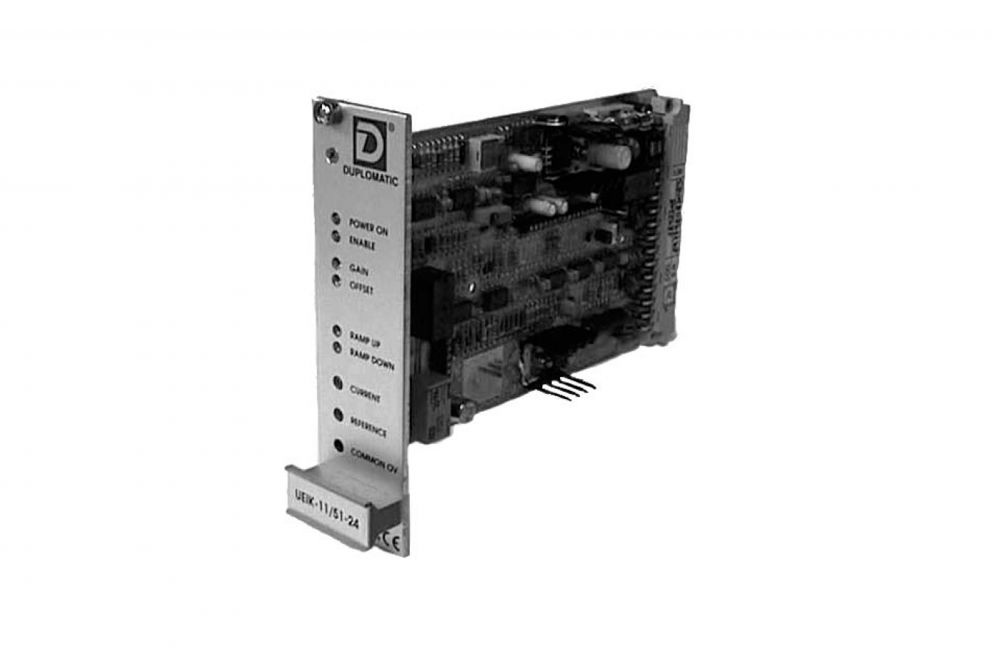

The Duplomatic UEIK-1* card is an electronic control unit Eurocard type for open loop single solenoid proportional valves.

The unit supplies a variable current in proportion to the reference signal and independently of temperature variations or load impedance.

The PWM stage on the solenoid power supply makes it possible to reduce valve hysteresis thus optimising control precision. The front panel is fitted with LEDs to indicate card functions and potentiometers to optimize control.

Product Specification

Description Units
Power Supply 22 ÷ 30 Ripple Included
Power Supply Electrical Protection – Overload
– Polarity Inversion
Reference Signal – Voltage 0/ +10 V
Reference Signal – Current 4 ÷ 20 mA
Input Reference Signal Impedance – Voltage 10 kΩ
Input Reference Signal Impedance – Current 250 Ω
Electromagnetic Compatibility (EMC) In Compliance with 2004/108/CE
Card Size Eurocard 100 x 160 x 35
Connector Interface DIN 41612-D 32 Male
Operating Temperature Range 0 ÷ 50 °C
Mass 0.20 kg

Duplomatic – UEIK-1* – Electronic Control Unit for Open Loop Single Solenoid Proportional Valve – Data Sheet
