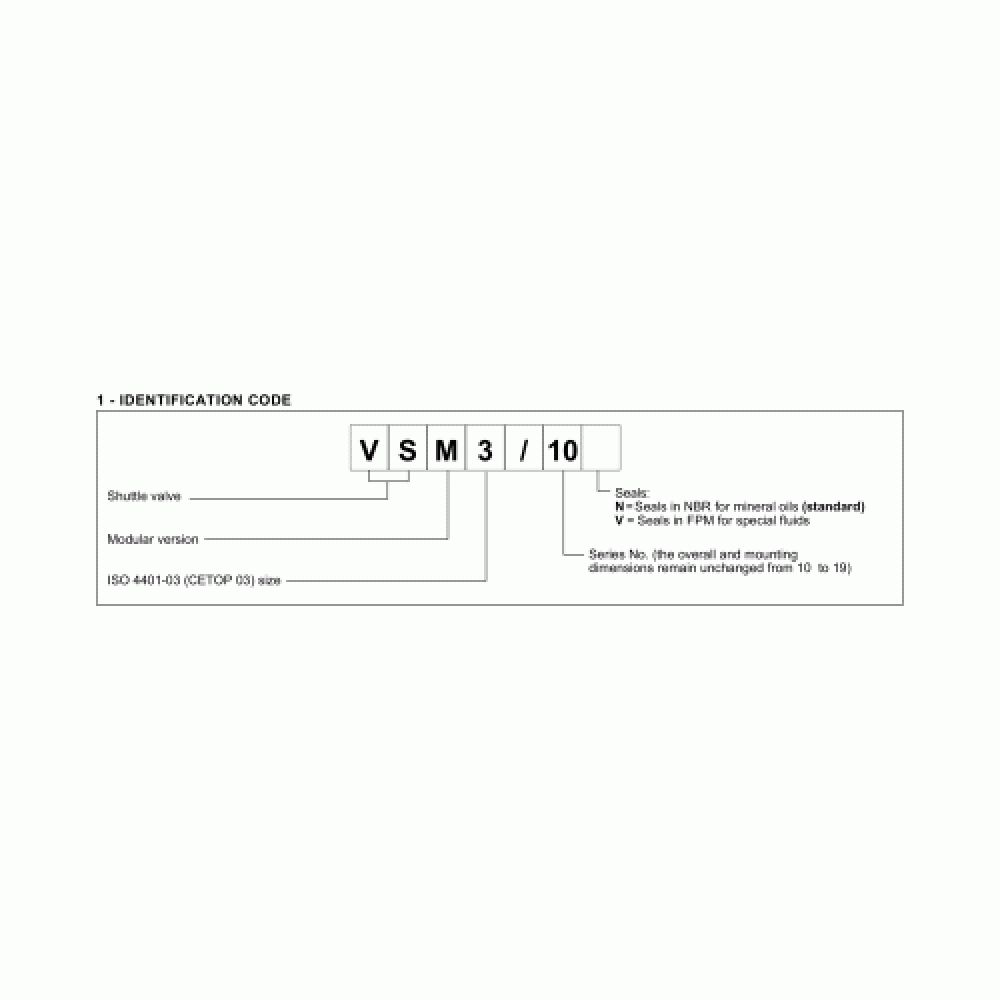

  • Duplomatic VSM3 - Ordering Information

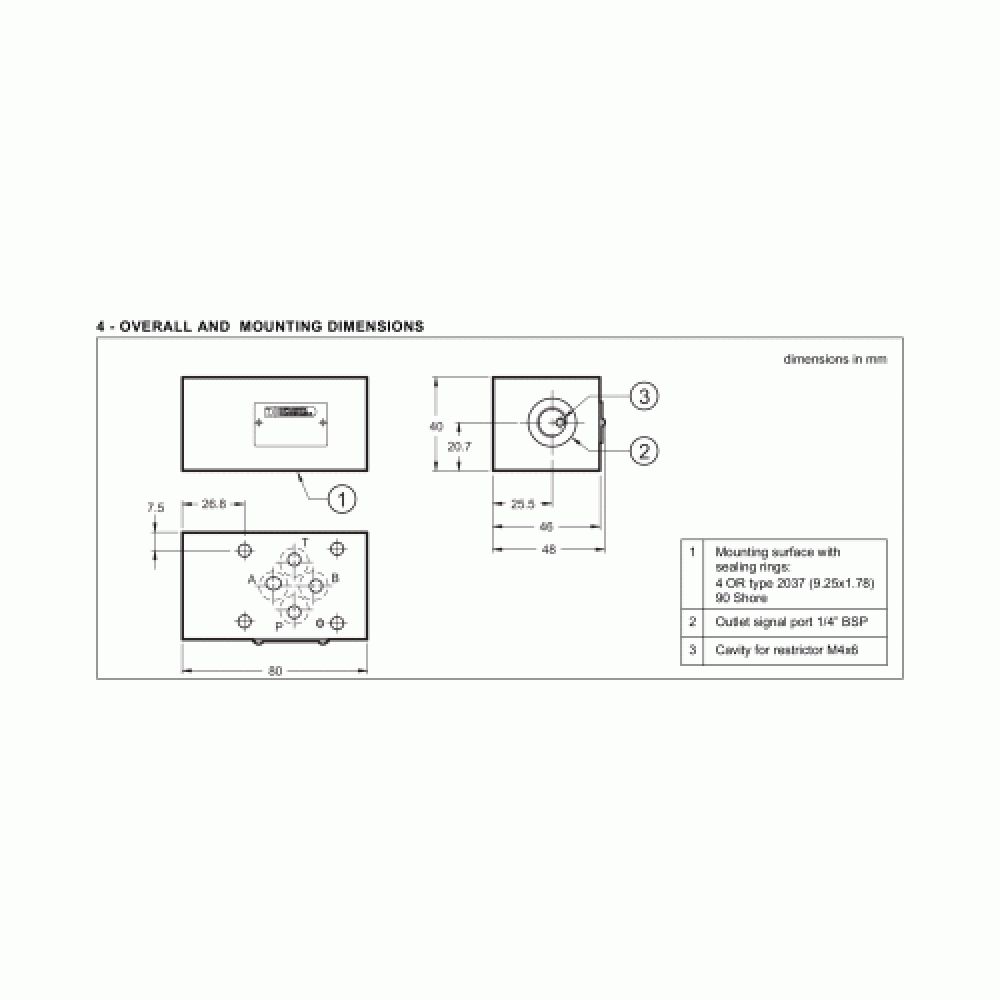

  • Duplomatic VSM3 - Mounting-Dimensions

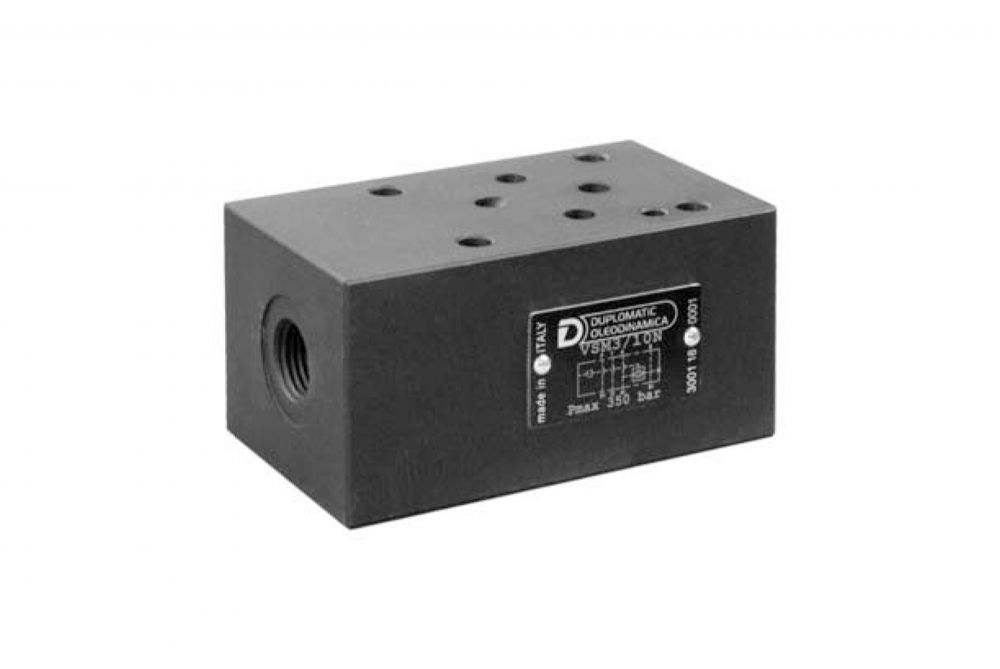

Duplomatic VSM3 – Shuttle Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic VSM3 is a shuttle valve for pilot signals made as a modular version with mounting surface according to the ISO 4401-03 (CETOP RP 12H) standards.

The valve regulates the passage of the signal with higher pressure between A and B towards the outlet side port 1/4” BSP.

The shuttle valve VSM3 has been designed with purpose of pilot signal with flowrate up to 3 l/min

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Maximum Flow Rate through the Cartridge 3 l/min
Maximum Flow Rate to A, B, P and T Port 40 l/min
Ambient Temperature Range -20 /+60°C
Fluid Temperature Range -20 /+80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Mass 0,95 kg

Duplomatic – VSM3 – Shuttle Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Shuttle Valves
