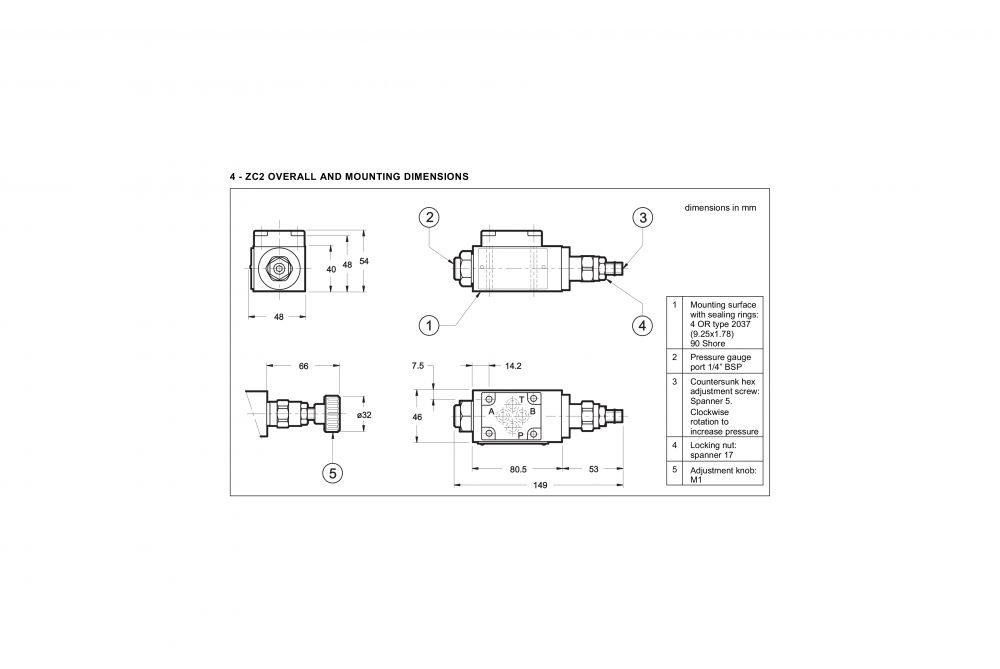

  • Duplomatic ZC2 - Mounting Dimensions

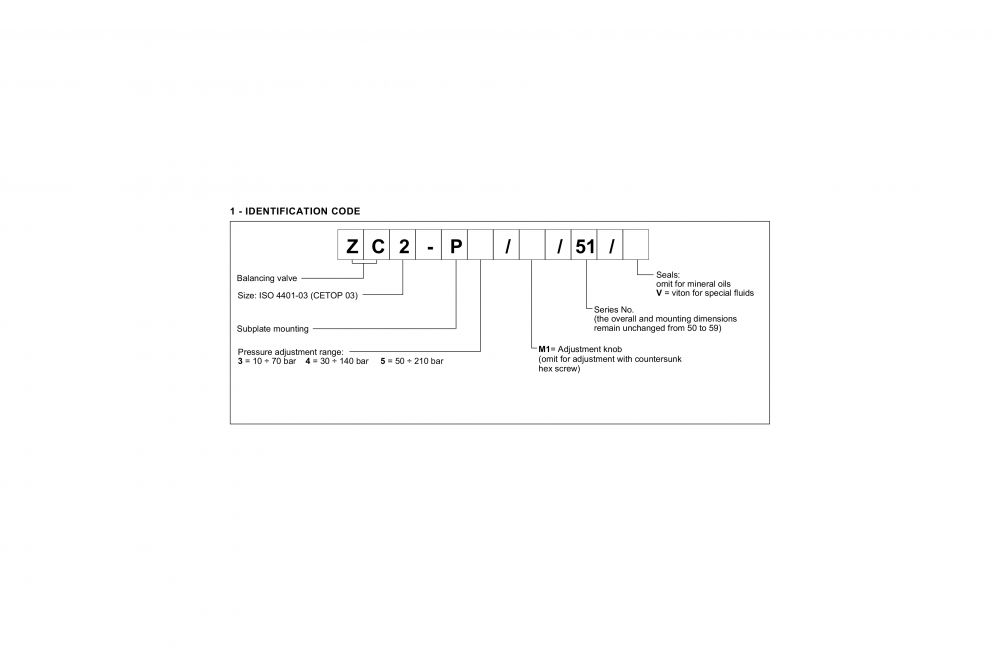

  • Duplomatic ZC2 - Ordering Information

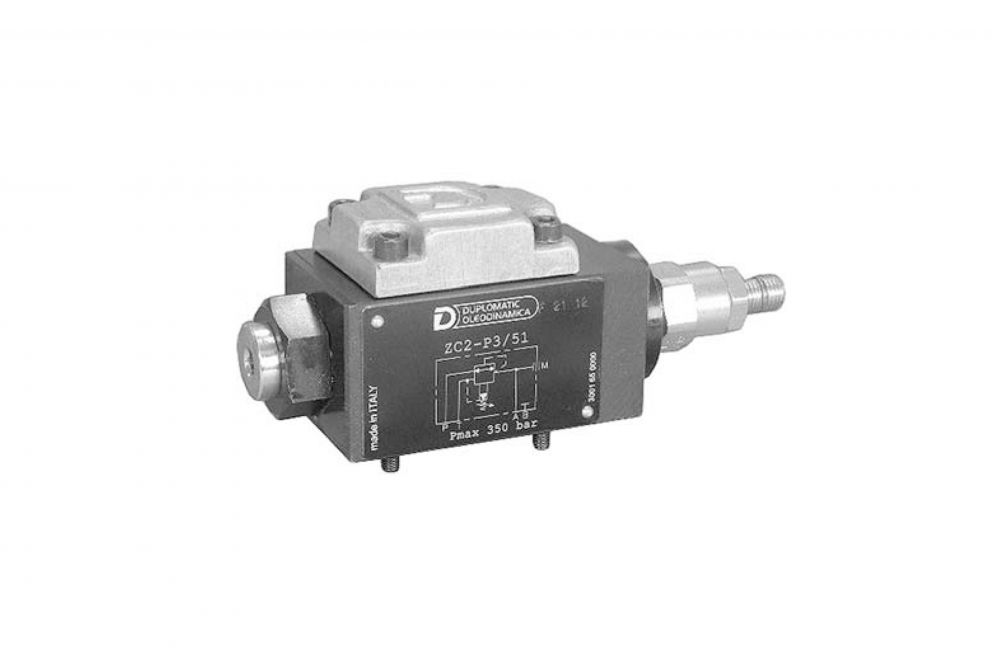

Duplomatic ZC2 – Balancing Valves

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic ZC2 balancing valves act as pressure reducing valves that, besides reducing the pressure from line P to user A, allow the flow to return from user A to discharge T when a pressure greater than the set value is generated in the downstream circuit (user A). (A typical case of hydraulic counterweight or load balancing)
They have a mounting surface in accordance with ISO 4401 (CETOP RP121H) standards. Port B is never used.

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Maximum Flow Rate 25 l/min
Ambient Temperature Range -20 / +50ºC
Fluid Temperature Range -20 / +80ºC
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 21/19/16
Recommended Viscosity 25 cSt
Mass 1,3 kg

Duplomatic – ZC2 – Balancing Valves – Data Sheet
