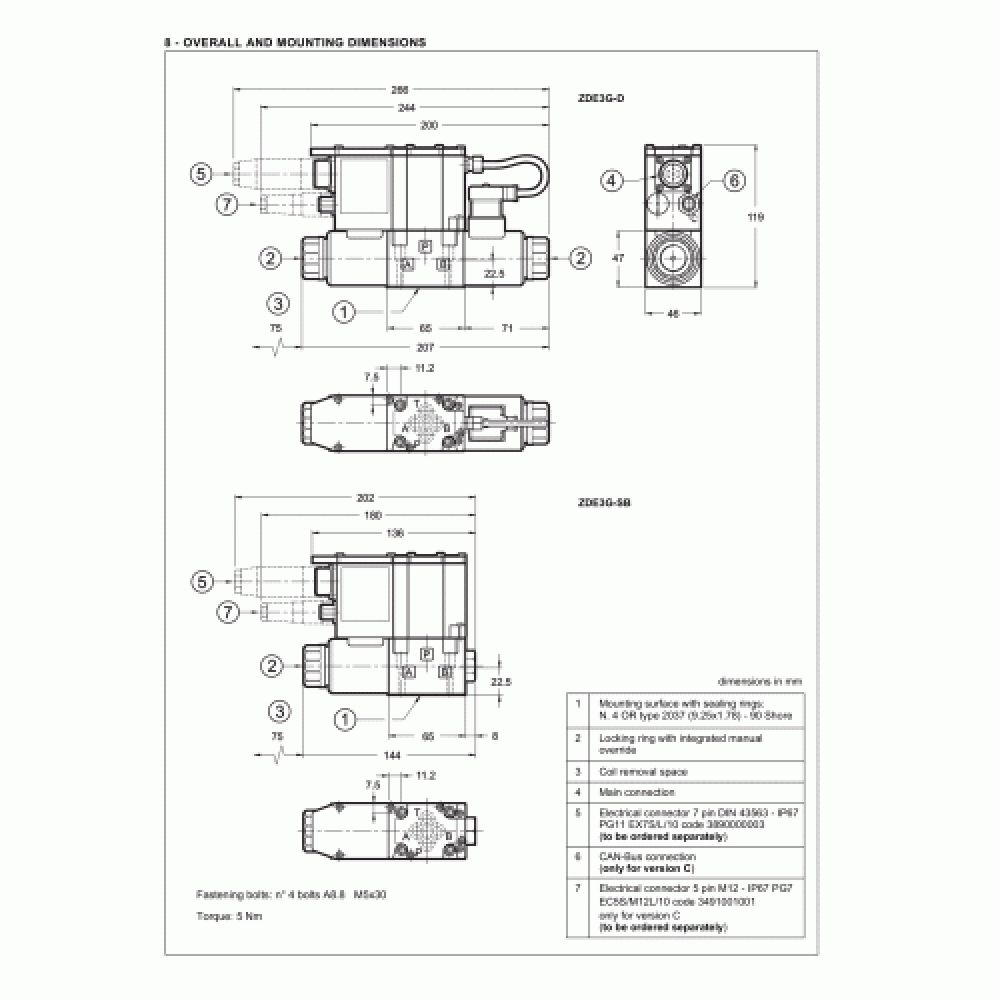

  • Duplomatic ZDE3G - Pressure Reducing Proportional Valve - OBE Mounting Dimensions

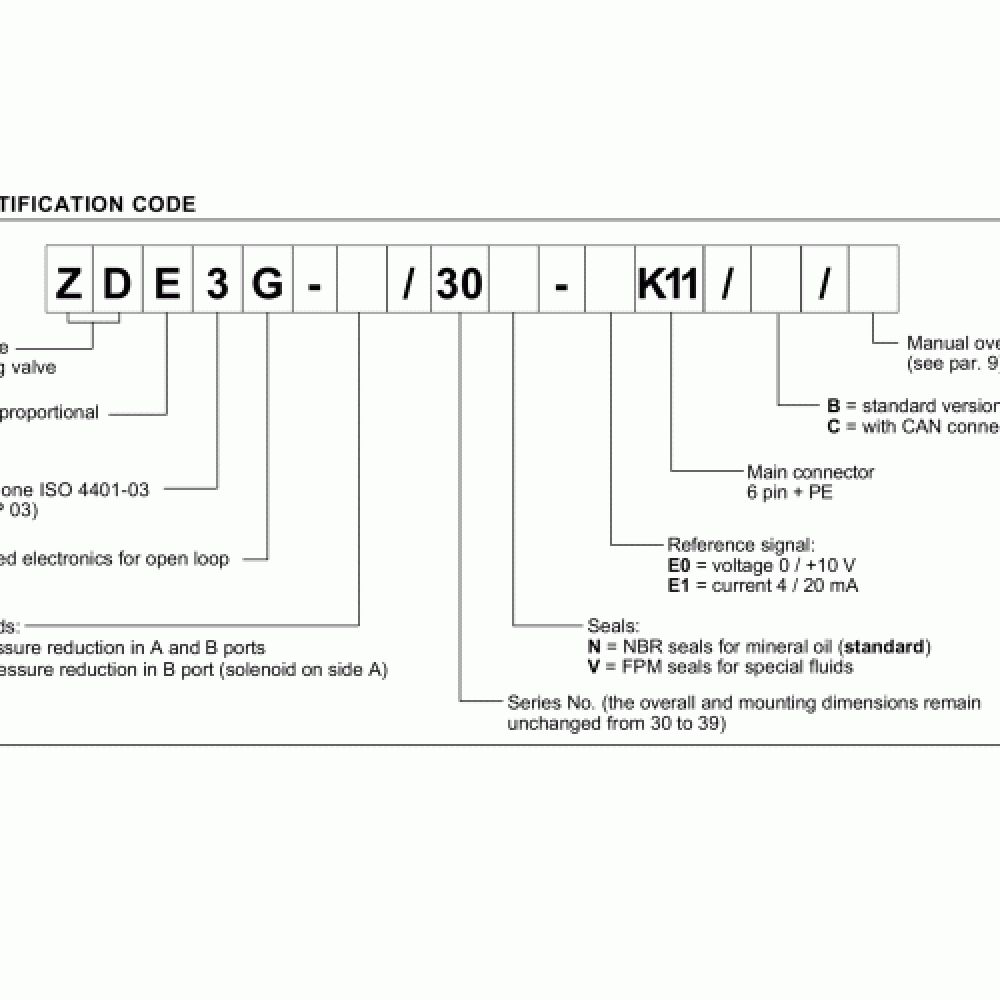

  • Duplomatic ZDE3G - Pressure Reducing Proportional Valve - OBE Ordering

Duplomatic ZDE3G – Pressure Reducing Proportional Valve – OBE

~ scroll down to find the part you need ~
Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

The Duplomatic ZDE3G are direct operated pressure proportional valves with integrated electronics, CETOP 03 and mounting interface in compliance with ISO 4401 (CETOP RP121H) standards.

The valves are used to reduce pressure in the secondary circuit branches thus ensuring stability of controlled pressure in the event of variations of the flow rate through the valve.

They are controlled directly by an integrated digital amplifier.

Product Specification

Description Units
Pressure allowed on P port 30 ÷ 100 Bar
Pressure allowed on T port 0 ÷ 30 Bar
Controlled Pressure 23 Bar
Maximum Flow 15 l/min
Hysteresis (with PWM 200 HZ) <3 % of Q max
Repeatability <+1 % of Q max
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range – 20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 18/16/13
Recommended Viscosity 25 cSt
Mass Single Solenoid Valve 1.9 Kg
Mass Double Solenoid Valve 2.4 Kg

Duplomatic – ZDE3G – Pressure Reducing Proportional Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Proportional Products

Pressure Control Proportional Valves
