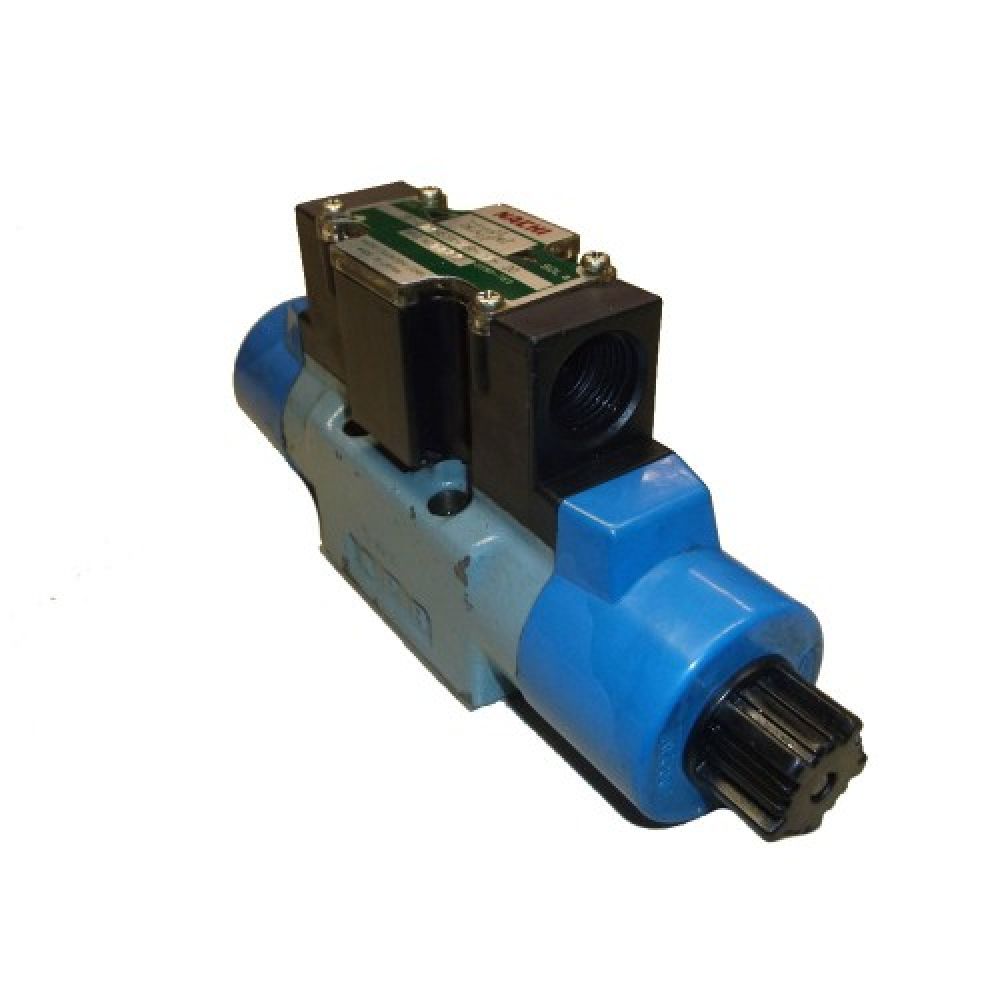

  • Nachi SE - Solenoid Operated Directional Control Valve
  • Nachi Hydraulics Logo

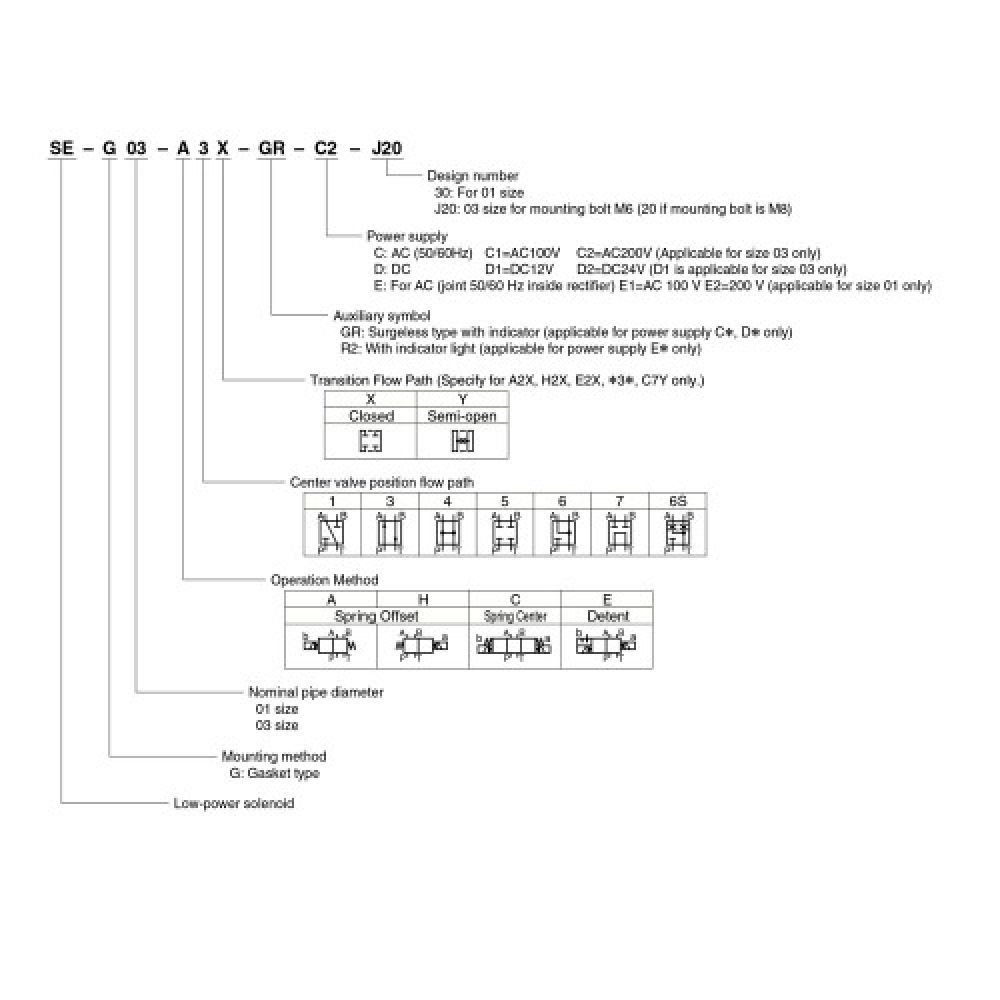

  • Nachi SE - Solenoid Operated Directional Control Valve Ordering Information

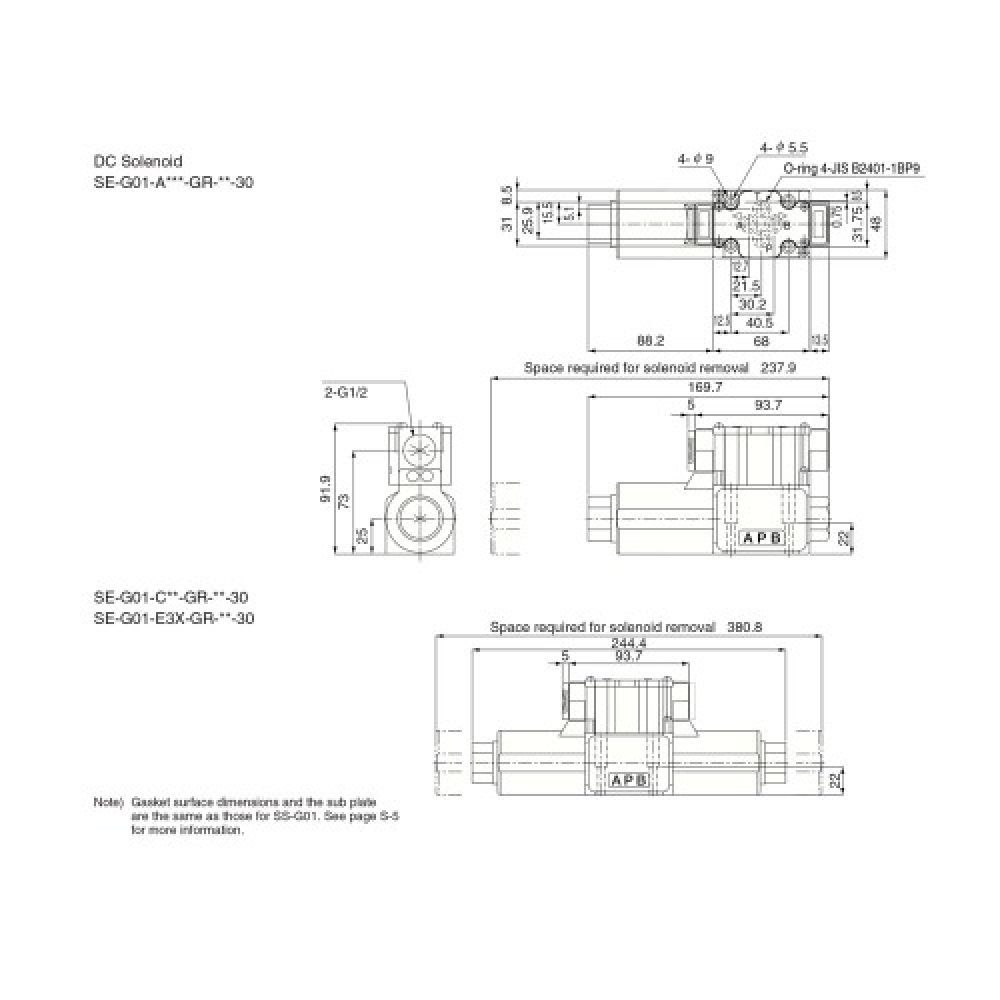

  • Nachi SE - Solenoid Operated Directional Control Valve Dimensions
  • Nachi SE - Solenoid Operated Directional Control Valve Dimensions

Nachi SE – Solenoid Controlled Directional Control Valve

~ scroll down to find the part you need ~

Nachi are a world-class manufacturer of pumps, valves, flow controls, hydraulic power units and other products. Known not only for product excellence but for our competitive pricing and product availability.

Low Currrent, Low Power

The SE series magnetic switching valve’s solenoid has significantly lower power consumption.

Directly, Driveable by a Programmable Controller

Low-current operation means not only allows direct drive by a programmable controller (PC) output circuit, it also enables the use of a compact and simple control circuit.

Little Coil Temperature Rise

Low power operation means there is little heat generated from the coil, which minimizes the effects of heat on mechanisms. Even with the AC solenoid, there is little chance of coil burnout.

Product Specification

Description SE-G01-30 SE-G03-20
P, A, B Ports Max Pressure 10 MPa 21 MPa
T Port Max Pressure 10 MPa 7 MPa
Pilot Pressure 0.4 MPa
Changeover Frequency 120 min 120 min
Dust/Water Resistance JIS C0920 IP65 JIS C0920 IP65
Ambient Temperature -20 to + 50°C -20 to + 50°C
Operating Temperature -20 to + 70°C -20 to + 70°C
Viscosity Range 15 to 300 mm²/s 15 to 300 mm²/s
Filtration 25 microns or less 25 microns or less
Single Solenoid Weight 1.8 kg 3.3 kg
Double Solenoid Weight 2.5 kg 3.5 kg

Nachi – SE – Solenoid Operated Directional Control Valve – Datasheet

Additional Information

Directional Control Valves

Direct Solenoid Operated

Manufacturer

Nachi
