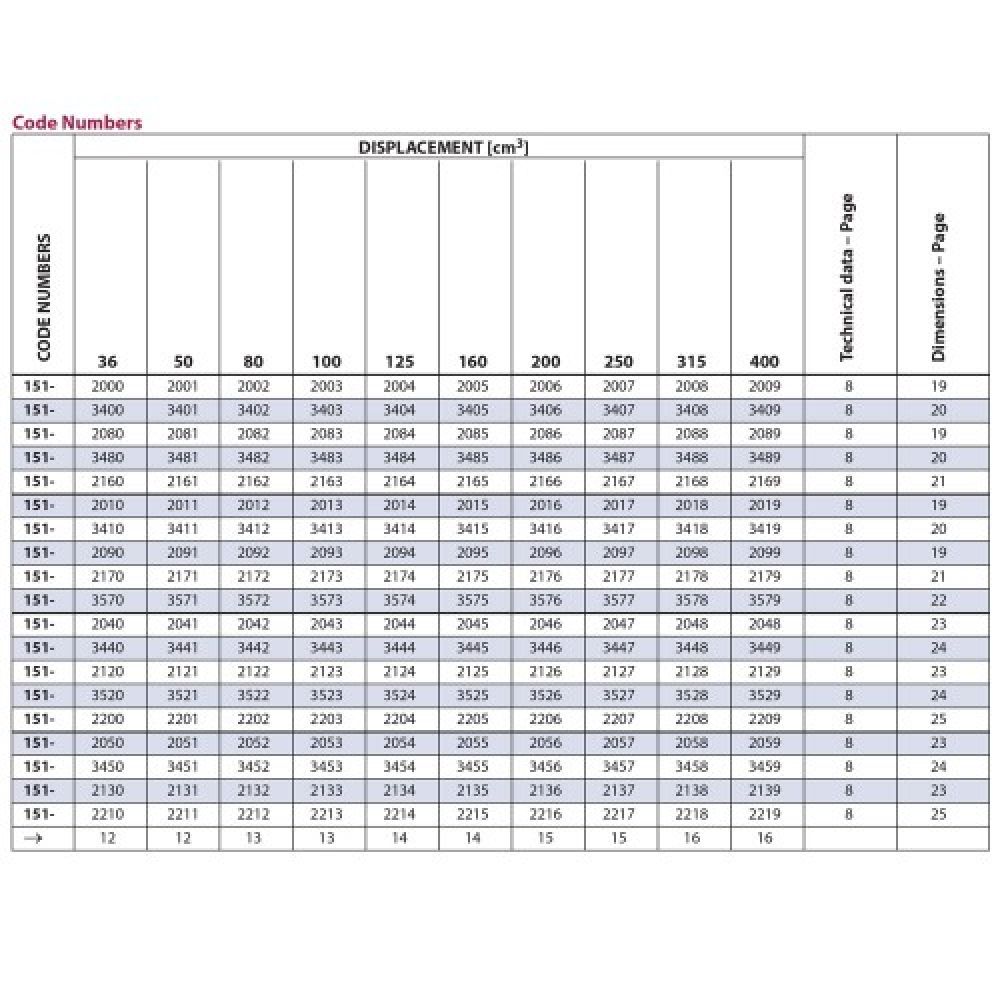

  • Sauer Danfoss DH - Orbital Motor Ordering Information
  • Sauer Danfoss DH - Orbital Motor Dimensions
  • Sauer Danfoss DH - Orbital Motor Dimensions
  • Sauer Danfoss DH - Orbital Motor Dimensions
  • Sauer Danfoss DH - Orbital Motor Dimensions

Sauer Danfoss DH – Orbital Motors

~ scroll down to find the part you need ~

Made by Sauer Danfoss a world leader within production of low speed orbital motors with high torque. Appealing to a large number of applications and a part of the program is characterised by motors that can be adapted to the following applications:

  •    Construction
  •    Agricultural
  •    Material handling & Lifting
  •    Forestry
  •    Lawn & turf equipment
  •    Special purpose
  •    Machine tools & stationary
  •    Marine equipment



We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions, motor sizes and torques).

Characteristic features:
  •    Smooth running over the entire speed range
  •   Constant operating torque over a wide speed range
  •   Long life under extreme operating conditions
  •   High return pressure without the use of drain line (High pressure shaft seal)
  •   High efficiency
  •   High starting torque
  •   Robust and compact design
  •   High radial and axial bearing capacity
  •   For applications in both open and closed loop hydraulic systems
  •   Suitable for a wide variety of hydraulics fluids

Product Specification

Continuous Values

Model Geometric
Displacement
Max
Speed
Max
Torque
Max
Output
Max Pressure
Drop
Max Oil
Flow
DH 36  36.0 cm³  1050 min¹  59 Nm  5.8 Kw  124 bar  38 l/min
DH 50  48.6 cm³  930 min¹  79 Nm  6.8 Kw  124 bar  45 l/min
DH 80  77.8 cm³  780 min¹  125 Nm  8.8 Kw  124 bar  60 l/min
DH 100  97.3 cm³  620 min¹  158 Nm  8.8 Kw  124 bar  60 l/min
DH 125  125.0 cm³  485 min¹  203 Nm  8.8 Kw  124 bar   60 l/min
DH 160  155.7 cm³  390 min¹  235 Nm  8.1 Kw  117 bar   60 l/min
DH 200  194.6 cm³  310 min¹  267 Nm  7.4 Kw  103 bar   60 l/min
DH 250  242.3 cm³  250 min¹  305 Nm  6.6 Kw  97 bar   60 l/min
DH 315  306.1 cm³  200 min¹  355 Nm  6.0 Kw  90 bar   60 l/min
DH 400  389.2 cm³  155 min¹  410 Nm  5.5 Kw  83 bar   60 l/min

Intermittent Values

Model Geometric
Displacement
Max
Speed
Max
Torque
Max
Output
Max Pressure
Drop
Max Oil
Flow
DH36  36.0 cm³  1270 min¹  76 Nm 7.0 Kw  166 bar  45 l/min
DH50  48.6 cm³  1090 min¹  106 Nm  8.2 Kw  166 bar  55 l/min
DH80  77.8 cm³  975 min¹  163 Nm  11.4 Kw  166 bar  75 l/min
DH100  97.3 cm³  780 min¹  214 Nm  11.8 Kw  166 bar  75 l/min
DH125  125.0 cm³  605 min¹  270 Nm  11.0 Kw  166 bar 75 l/min
DH160  155.7 cm³  485 min¹  320 Nm  11.1 Kw  159 bar  75 l/min
DH200  194.6 cm³  390 min¹  360 Nm  9.8 Kw  141 bar  75 l/min
DH250  242.3 cm³  315 min¹  415 Nm  8.8 Kw  131 bar  75 l/min
DH315  306.1 cm³  245 min¹  470 Nm  7.8 Kw  121 bar 75 l/min
DH400  389.2 cm³  195 min¹  485 Nm  6.4 Kw  97 bar  75 l/min

Sauer Danfoss – DH – Orbital Motor – Datasheet

Additional Information

Hydraulic Motors

Orbital Motor

Manufacturer

Sauer Danfoss
