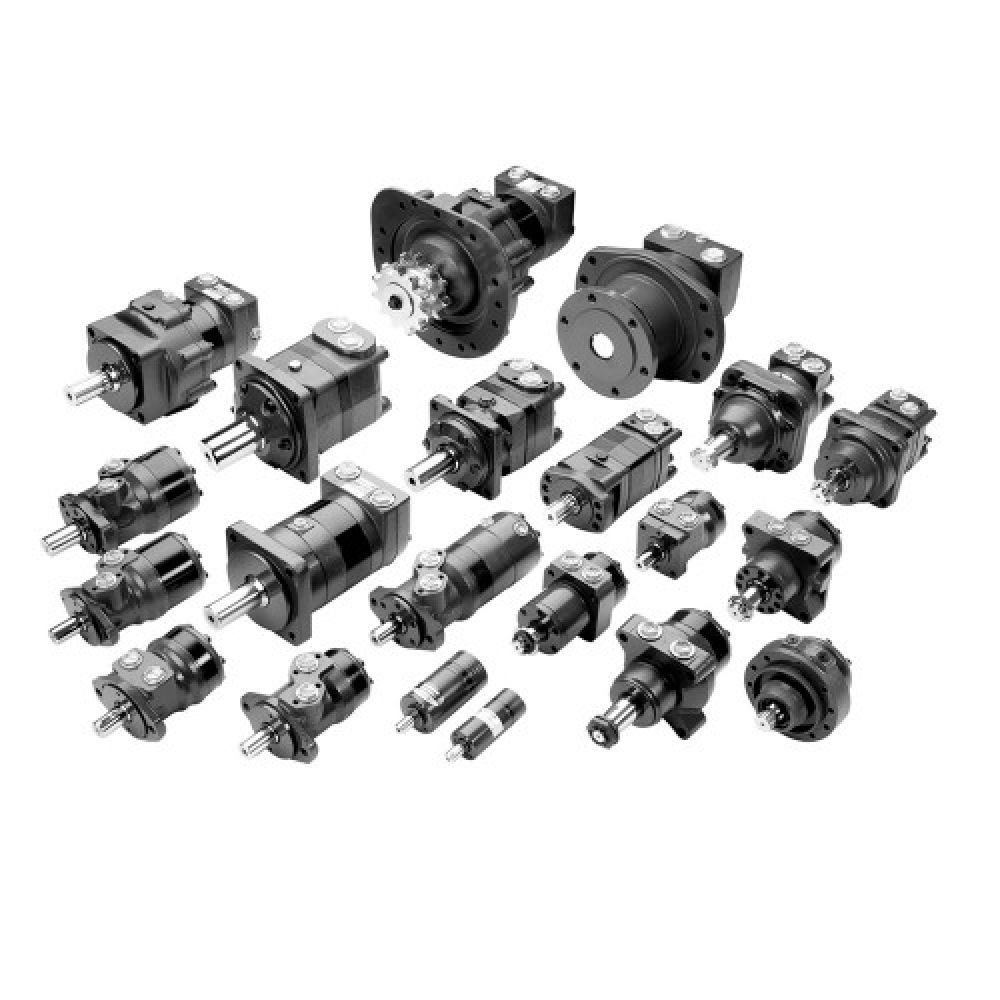

Sauer Danfoss DS – Orbital Motors

~ scroll down to find the part you need ~

Made by Sauer Danfoss a world leader within production of low speed orbital motors with high torque. Appealing to a large number of applications and a part of the program is characterised by motors that can be adapted to the following applications:

  •    Construction
  •    Agricultural
  •    Material handling & Lifting
  •    Forestry
  •    Lawn & turf equipment
  •    Special purpose
  •    Machine tools & stationary
  •    Marine equipment



We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions, motor sizes and torques).

Characteristic features:
  •    Smooth running over the entire speed range
  •   Constant operating torque over a wide speed range
  •   Long life under extreme operating conditions
  •   High return pressure without the use of drain line (High pressure shaft seal)
  •   High efficiency
  •   High starting torque
  •   Robust and compact design
  •   High radial and axial bearing capacity
  •   For applications in both open and closed loop hydraulic systems
  •   Suitable for a wide variety of hydraulics fluids

Product Specification

Continuous Values

Model Geometric
Displacement
Max
Speed
Max
Torque
Max
Output
Max Pressure
Drop
Max Oil
Flow
DH 50  51.6 cm³  770 min¹  93 Nm  6.6 Kw  138 bar  40 l/min
DH 80  80.3 cm³  755 min¹  159 Nm  10.7 Kw  138 bar  60 l/min
DH 100  99.8 cm³  605 min¹  193 Nm  10.7 Kw  138 bar  60 l/min
DH 125  124.1 cm³  480 min¹  247 Nm  10.7 Kw  138 bar   60 l/min
DH 160  155.4 cm³  380 min¹  314 Nm  10.7 Kw  138 bar   60 l/min
DH 200  198.2 cm³  305 min¹  350 Nm  9.6 Kw  124 bar   60 l/min
DH 250  248.1 cm³  245 min¹  370 Nm  8.0 Kw  107 bar   60 l/min
DH 315  310.1 cm³  190 min¹  415 Nm  6.9 Kw  97 bar   60 l/min
DH 375  390.7 cm³  155 min¹  455 Nm  5.8 Kw  83 bar   60 l/min

Intermittent Values

Model Geometric
Displacement
Max
Speed
Max
Torque
Max
Output
Max Pressure
Drop
Max Oil
Flow
DH 50  51.6 cm³  955 min¹  116 Nm 7.8  Kw  172 bar  50 l/min
DH 80  80.3 cm³  945 min¹  206 Nm  13.0 Kw  172 bar  75 l/min
DH 100  99.8 cm³  760 min¹  237 Nm  13.0 Kw  172 bar  75 l/min
DH 125  124.1 cm³  600 min¹  304 Nm  13.0 Kw  172 bar 75 l/min
DH 160  155.4 cm³  475 min¹  378 Nm  12.6 Kw  172 bar  75 l/min
DH 200  198.2 cm³  380 min¹  429 Nm  11.8 Kw  155 bar 75 l/min
DH 250  248.1 cm³  305 min¹  469 Nm 9.9 Kw  138 bar 75 l/min
DH 315  310.1 cm³  240 min¹  485 Nm  8.0 Kw  114 bar  75 l/min
DH 375  390.7 cm³  195 min¹  515 Nm  6.9 Kw  97 bar  75 l/min

Sauer Danfoss – DS – Orbital Motor – Datasheet

Additional Information

Hydraulic Motors

Orbital Motor

Manufacturer

Sauer Danfoss
