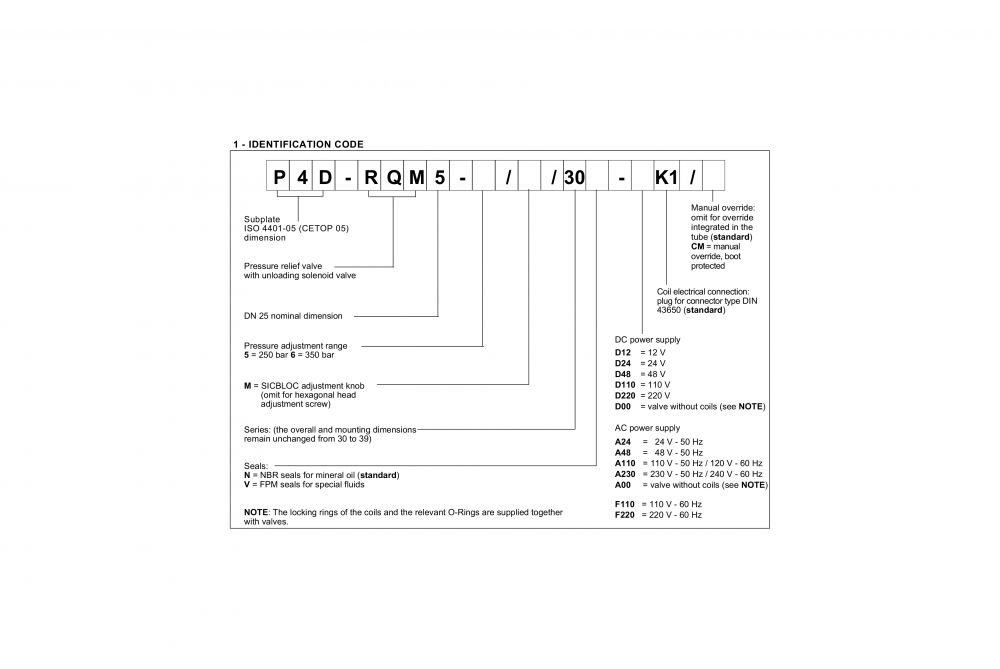

  • Duplomatic P4D - Ordering Information

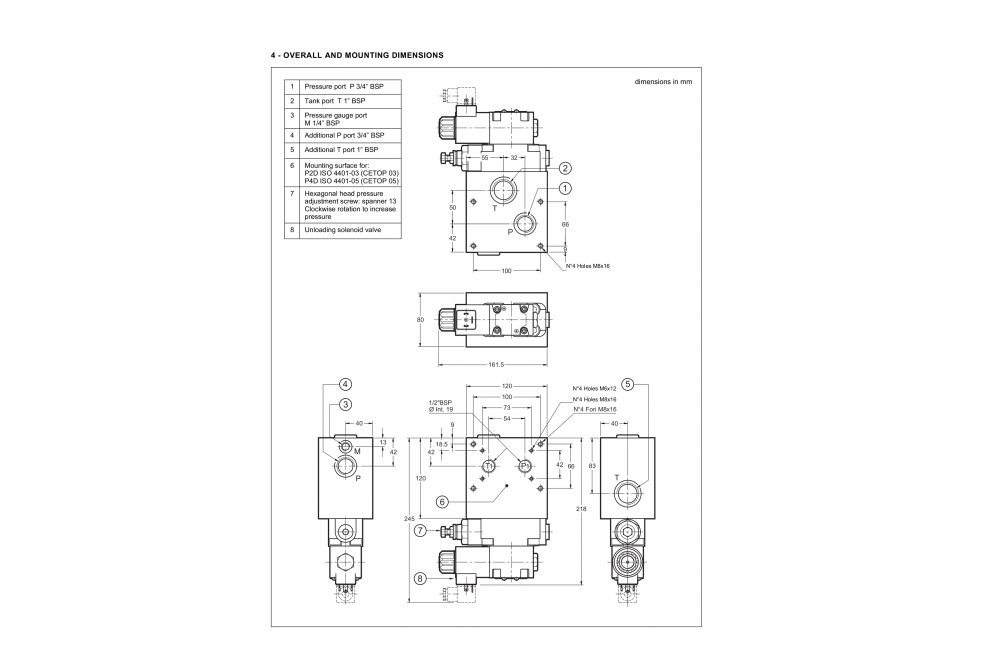

  • Duplomatic P4D - Mounting Dimensions

Duplomatic P4D-RQM5 – Modular Subplate Manifold

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

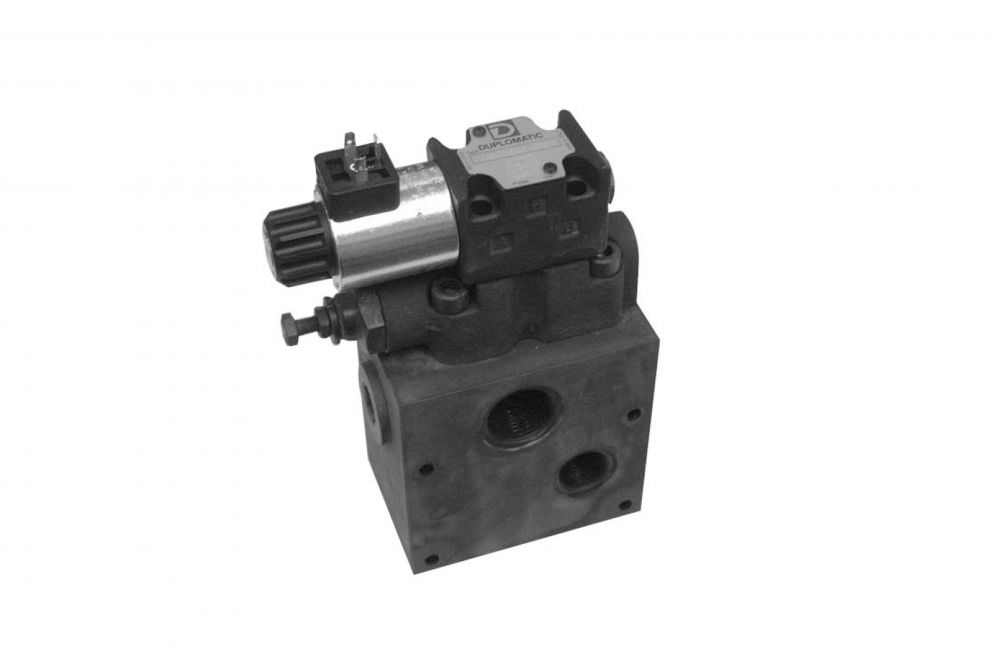

The Duplomatic P4D-RQM5 is a compact group that includes a pressure relief valve and it is used as mounting surface for P2D and P4D subplates.

Includes a solenoid valve for venting of the total flow at a minimum pressure value.

Available in two pressure adjustment ranges up to 350 bar.

Supplied with a hexagonal head adjustment screw. Upon request, it can be equipped with a SICBLOC adjustment knob on the main pressure control.

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Maximum Flow on P (3/4″) and T (1″) 250 l/min
Maximum Flow on P¹ and T¹ (1/2″) 120 l/min
Minimum Flow 10 l/min
Ambient Temperature Range -20 /+50°C
Fluid Temperature Range -20 /+80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Mass 10 kg

Duplomatic – P4D-RQM5 – Modular Subplate with Pressure Relief Valve and unloading Solenoid Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic
