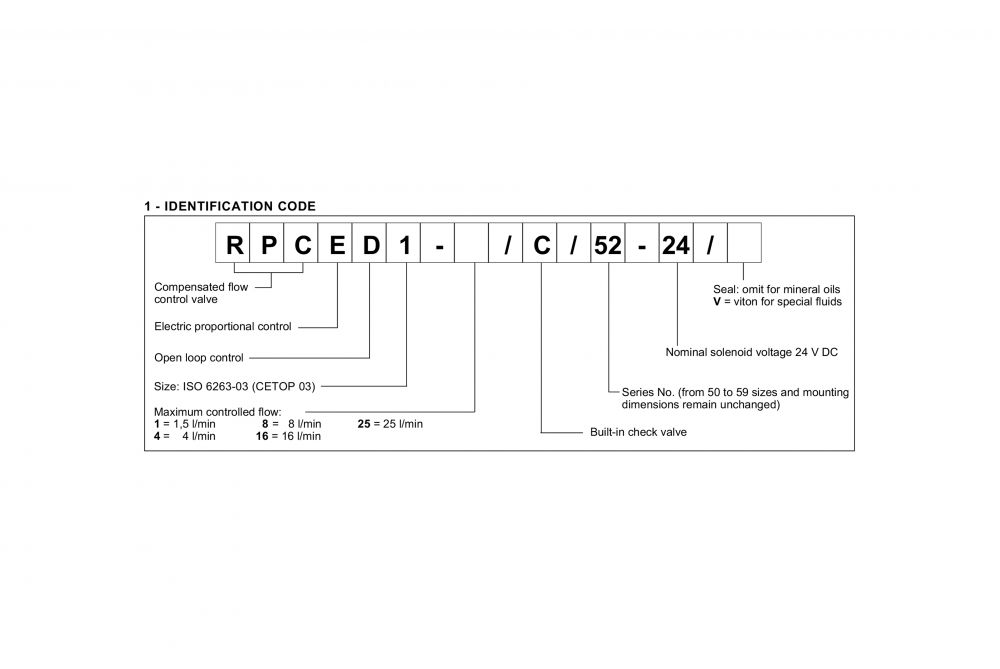

  • Duplomatic RPCED1 - Direct Operated Flow Control Proportional Valve Ordering

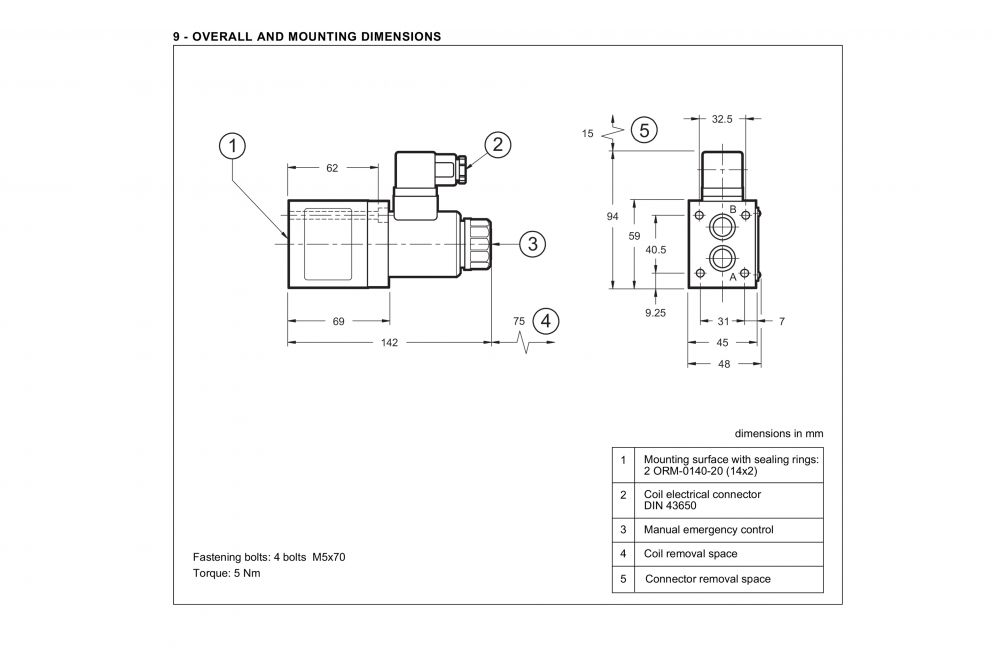

  • Duplomatic RPCED1 - Direct Operated Flow Control Proportional Valve Mounting Dimensions

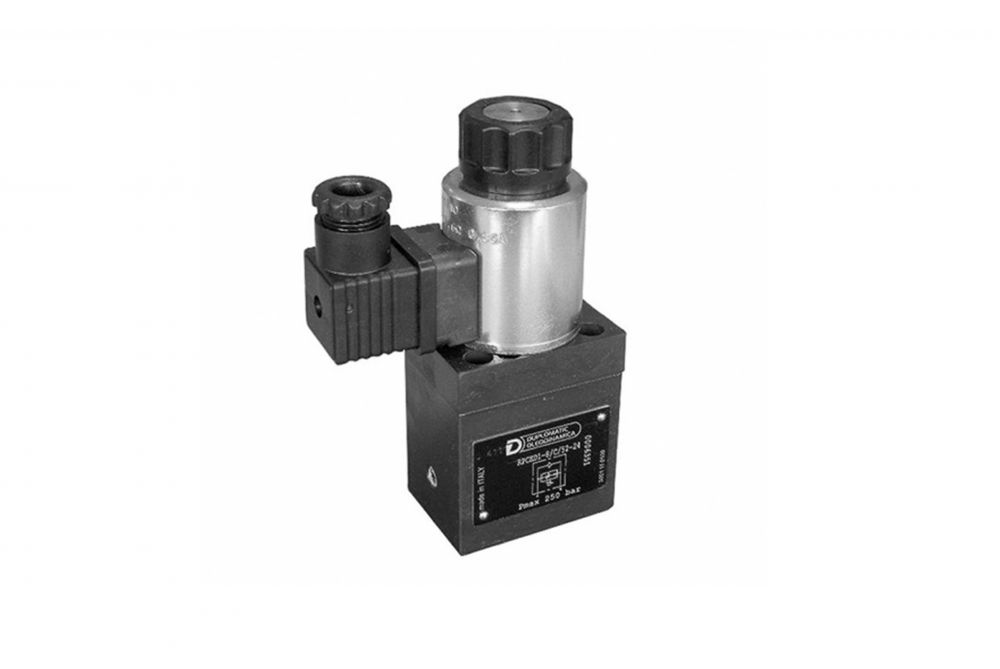

Duplomatic RPCED1 – Direct Operated Flow Control Proportional Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

The Duplomatic RPCED1 valve is a two-way flow control proportional valve with pressure and thermal compensation, CETOP 03, and mounting interface in compliance with ISO 6263 (CETOP RP 121H) standards

It is normally used for flow rate control in hydraulic circuit branches or for speed control of hydraulic actuators.

Flow rate can be modulated continuously in proportion to the current supplied to the solenoid.

The valve can be controlled directly by a current control supply unit or by means of the relative electronic control units to exploit valve performance to the full.

It is available in five flow rate control ranges up to 25 l/min.

Product Specification

Description Units
Maximum Operating Pressure 250 Bar
Minimum P between A and B port 10 Bar
Maximum Controlled Flow 1, 5 – 4 – 8 – 16 – 25 l/min
Min. Controlled Flow (for 1 and 4 l/min. reg.) 0.025 l/min
Maximum Free-Reverse Flow 40 l/min
Hysteresis (with PWM 100 Hz) <6 % of P nom
Repeatability <+2.5 % of P nom
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range – 20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree
According to ISO 4406:1999
class 18/16/13
(class 17/15/12 for flows < 0,5 l/min)
Recommended Viscosity 25 cSt
Mass 1.5Kg

Duplomatic – RPCED1 – Direct Operated Flow Control Proportional Valve – Data Sheet
