Nachi MOB-CC-103-03 - CETOP 03 Three Station Subplate

Nachi
In stock - order today
View all specifications

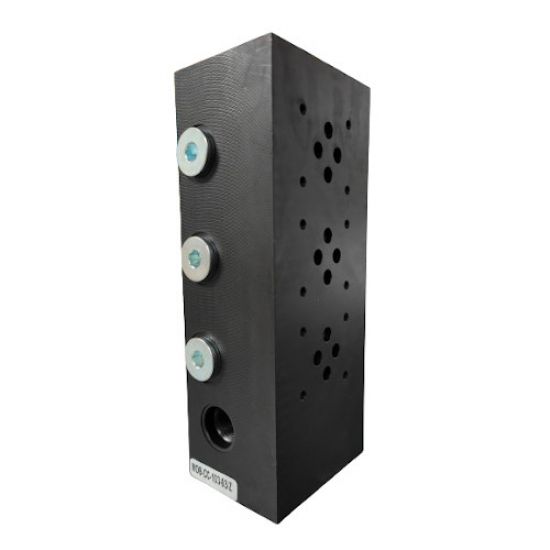

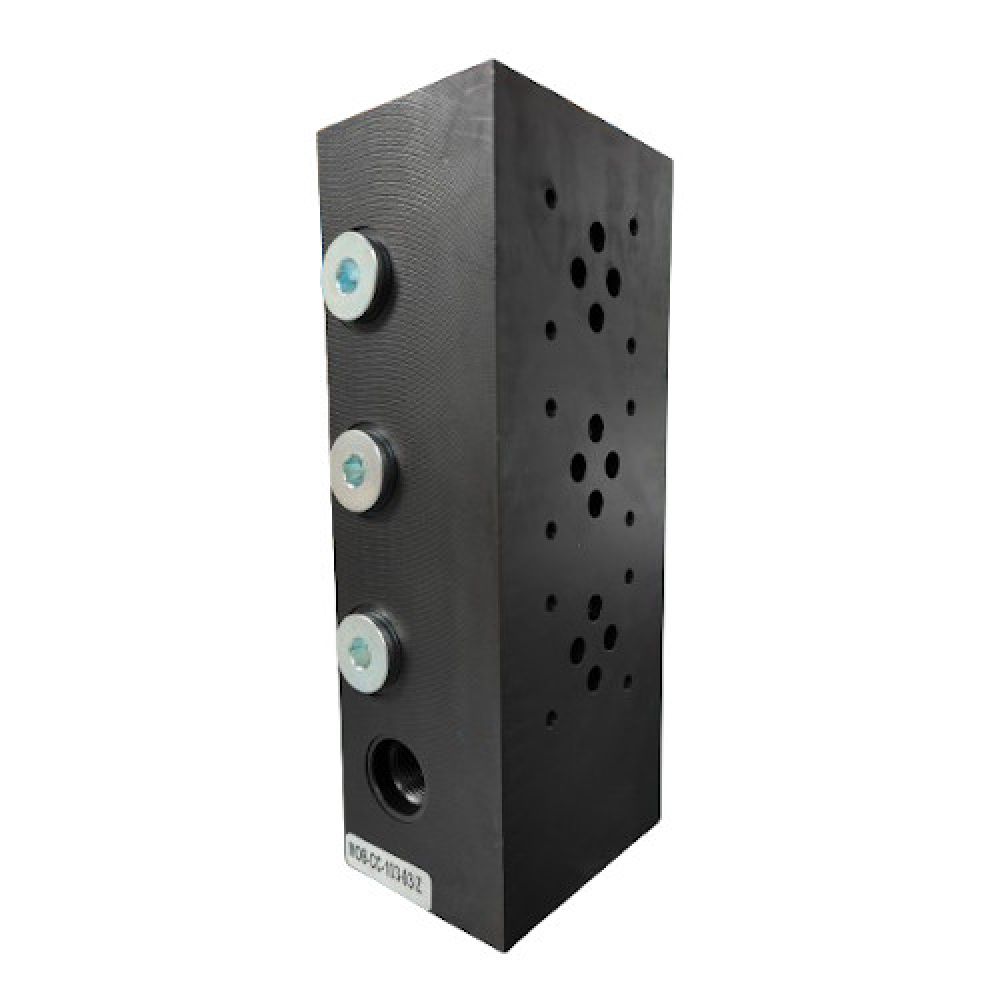

Nachi's hydraulic equipment plays an essential role in power and controlling in the construction machine industry. The MOB-CC-103-03 is a cast iron, anodised black, modular three station hydraulic subplate, also known as a manifold or base plate. Hydraulic subplates are designed to connect a hydraulic valve or multiple valves to piping. Subplates allow you to control the amount of fluid flowing between the components in your hydraulic system.

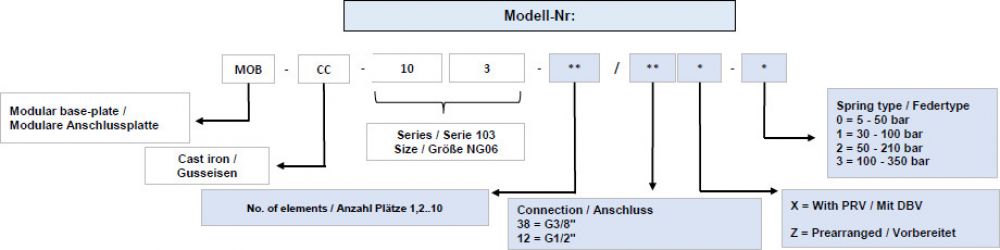

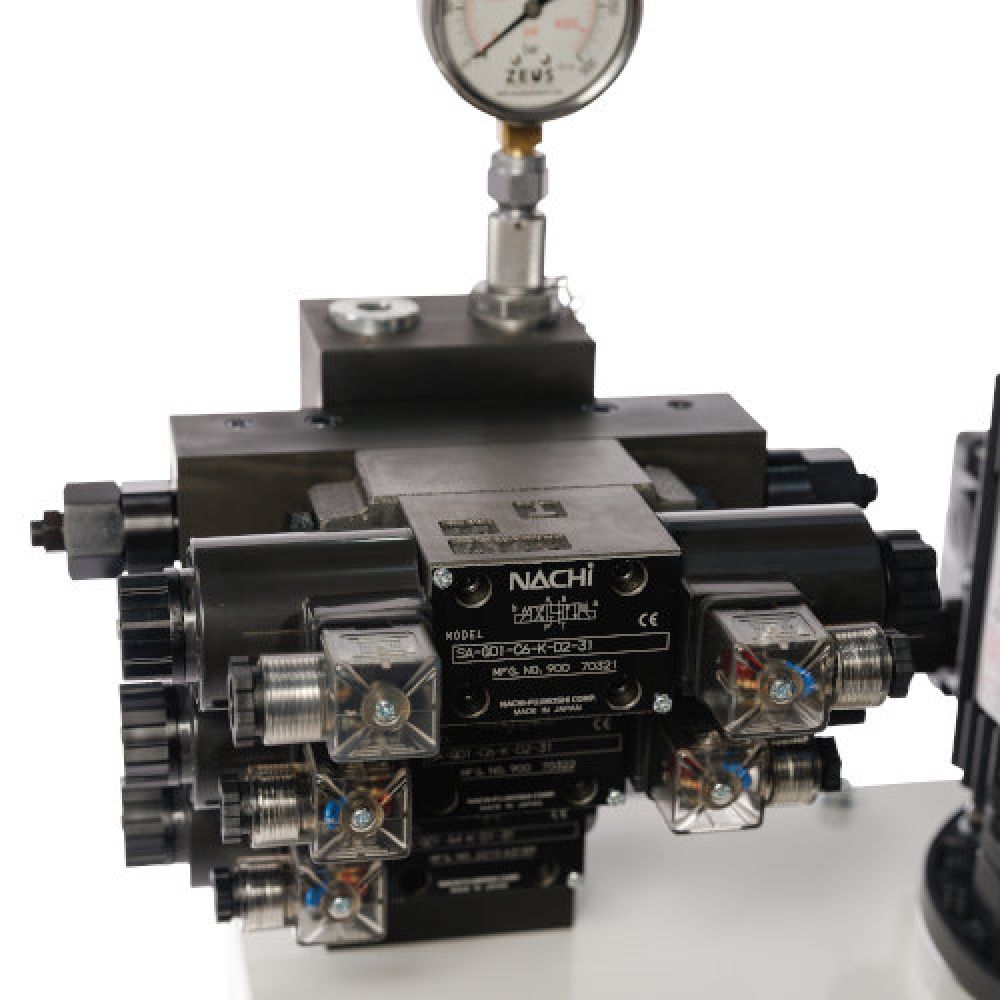

The 103 part of the code corresponds to the mounting surface which accords to the ISO 4401 CETOP 03 (NG6) standards. You can see in the images this manifold being used on one of Zeus Hydratech's Industrial Modular Hydraulic Power Unitswith selection of valves and a pressure gauge.

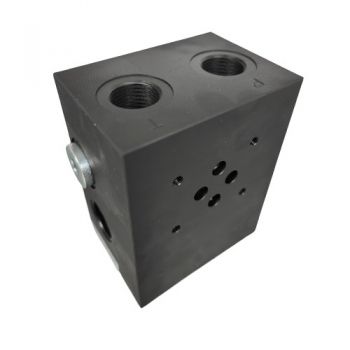

Zeus Hydratech keep a selection of the Nachi MOB-CC-103-03 Subplates, as well as the single station (MOB-CC-103-01) in stock- Contact us today to place your order for immediate dispatch. Email us or call on +44 (0) 1172130042.

Downloads & Datasheets

Size Working Pressure Peak Pressure
NG06 310 bar 350 bar
Port Connection Option 38 - Thread Connection Option 12 - Thread
A+B G 3/8" G 1/2"
P+T G 1/2" G 1/2"

There are currently no reviews for this product

Awaiting video
