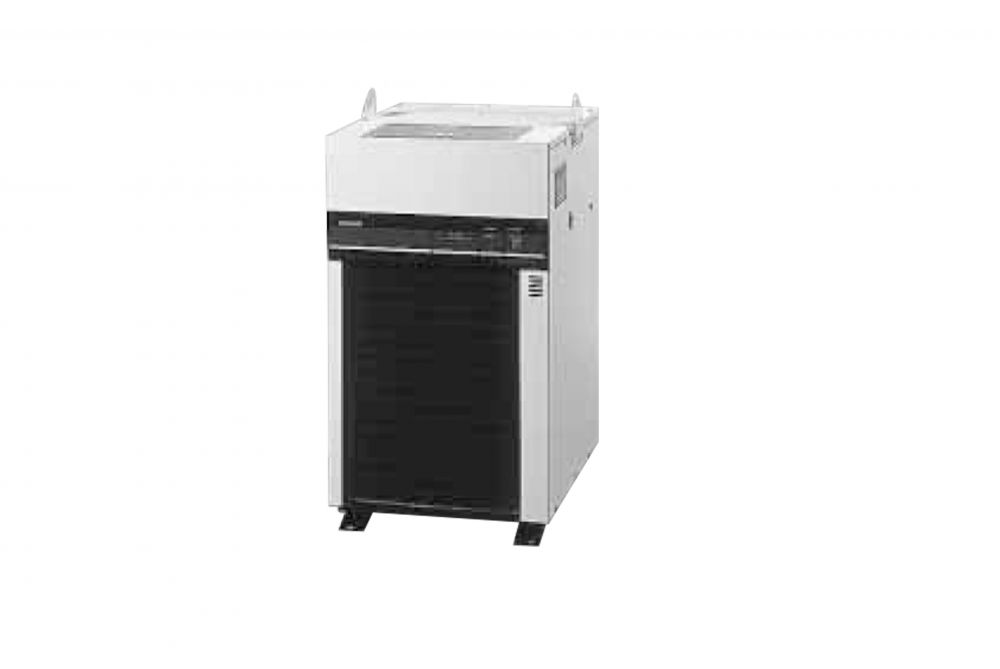

Daikin AKS303 - Oil Cooling Unit

Contact us for current availability
View all specifications

Daikin Industries are the market leaders in environmentally responsible oil cooler solutions.

The Daikin AKS - Oil Cooler unit can be used in wide range of applied temperature such as 5~45°C for room temperature and 5~50°C for oil temperature. Coping with intensive temperature conditions under winter and summer, it exhibits steady cooling capacity.

Multiple function's micro computer is surface mounted and allows ease of use


  •  One touch choice is possible for oil temperature control method (room temperature tuning type, fixed temperature type)
  •  LED displays abnormal situations of individual nine kinds or seven levels of inlet oil temperatures.
  • Turnover switch enables the operation switch to do fool-safe operated and to prevent ceased operation.


Slim and Compact Design

Slim and compact design matches the main CNC machine which reduces installation space.

Enriched Health & Safety Functions

Eleven protection features with improved safety features *Note: Refer to the specification table below for AKS303AK*

Downloads & Datasheets

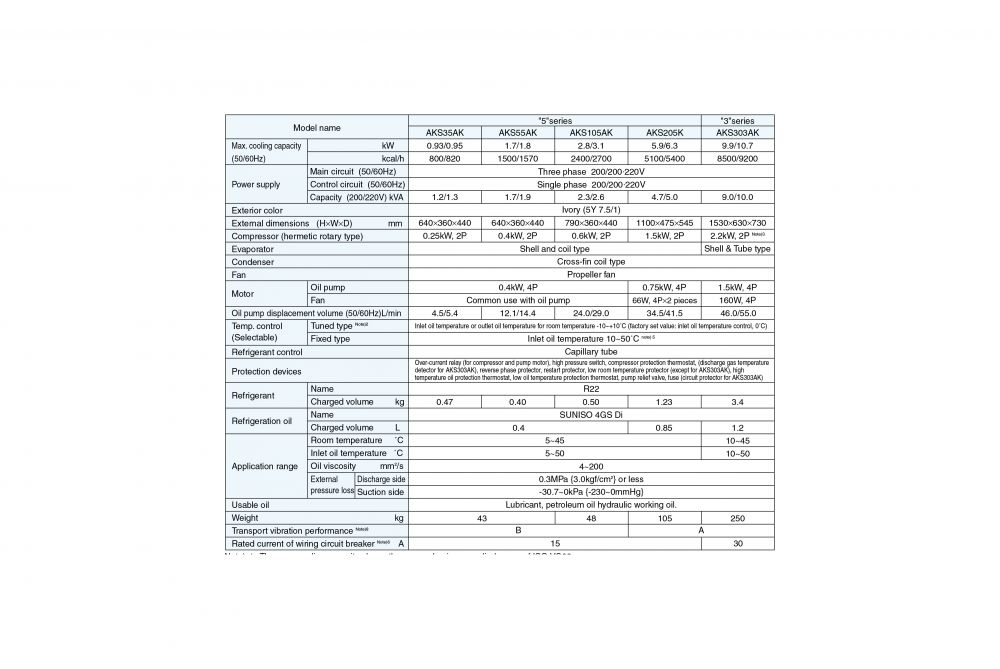

Description AKS303AK
Maximum Cooling Capacity 9.9 / 10.7 kW
Power Supply Main Circuit (50/60 Hz) Three Phase 200/200 - 220V
Power Supply Control Circuit (50/60Hz) Single Phase 200/200 - 220V
Power Supply Capacity (200/220V) 9.0 / 10.0 kVA
Oil Pump Displacement Volume (50/60Hz) 46.0 / 55.0 L/min
Compressor (hermetic rotary type) 0.25 kW, 2P
Evaporator Shell and Tube Type
Condenser Cross-fin coil type
Fan Propeller fan
Room Temperature Application Range 5 - 45 °C
Inlet Oil Temperature Application Range 10 - 50 °C
Oil Viscosity 4 - 200 mm²/s
External Dimensions (H x W x D) 1530 x 630 x 730 mm
Weight 250 kg
