Duplomatic RPC1*/M - Flow Control Valve

Duplomatic
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

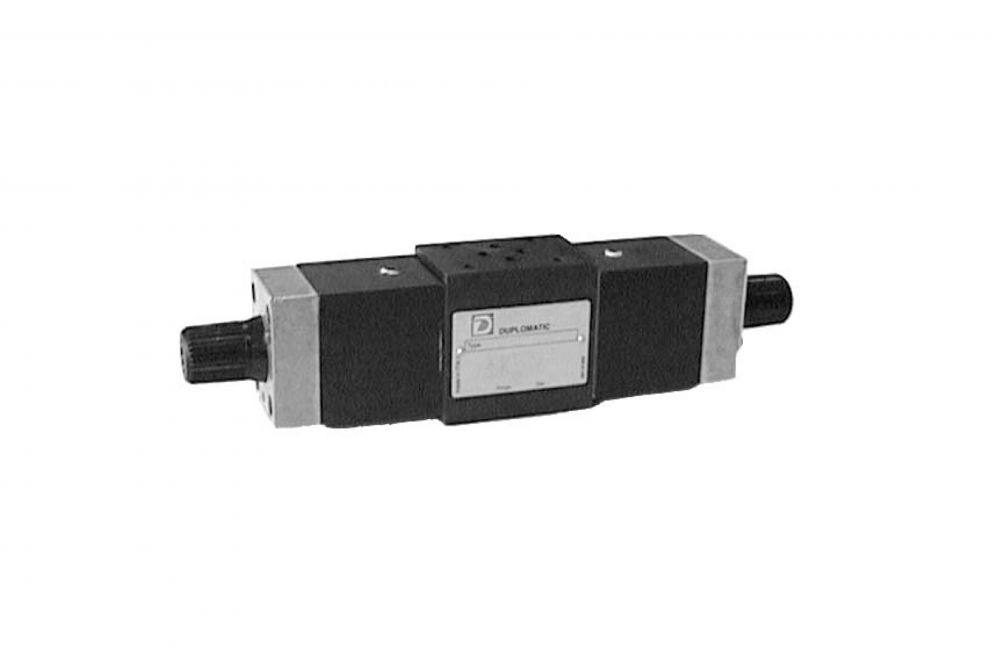

The Duplomatic RPC1*/M valve is a flow control valve with pressure and temperature compensation, made as a modular version with mounting surface according to the ISO 4401 (CETOP RP 121H) standards. Can be assembled quickly under theISO 4401-03 (CETOP 03) directional solenoid valves and allows easy execution of hydraulic circuits where control of the speed of the actuators is required.

Available in six flow adjustment ranges up to 30 l/min. Combined with MDD44 type solenoid operated directional control valves (see cat. 41 250), it’s possible to obtain circuits for the fast/slow control of the work actuators


Description Units
Maximum Operating Pressure 250 bar
Maximum Flow Rate in Controlled Lines 1-4-10-16-22-30 l/min
Maximum Flow Rate in the Free Lines 65 l/min
Reverse Free Flow Maximum Flow Rate 40 l/min
Ambient Temperature Range -20 / 50°C
Fluid Temperature Range -20 / 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
RPC1-*/M/A-B-T-P Mass 3 kg
RPC1-*/M/D Mass 4,1 kg
RPC1-*/M/PCT3 Mass 4,1 kg
Only Modular Block ISO 4401-03 without Flow Control Valves: RPC1-K/M/* Mass 1,5 kg
Only Modular Block ISO 4401-03 without Flow Control Valves: RPC1-K/M/PCT3 Mass 2,4 kg
