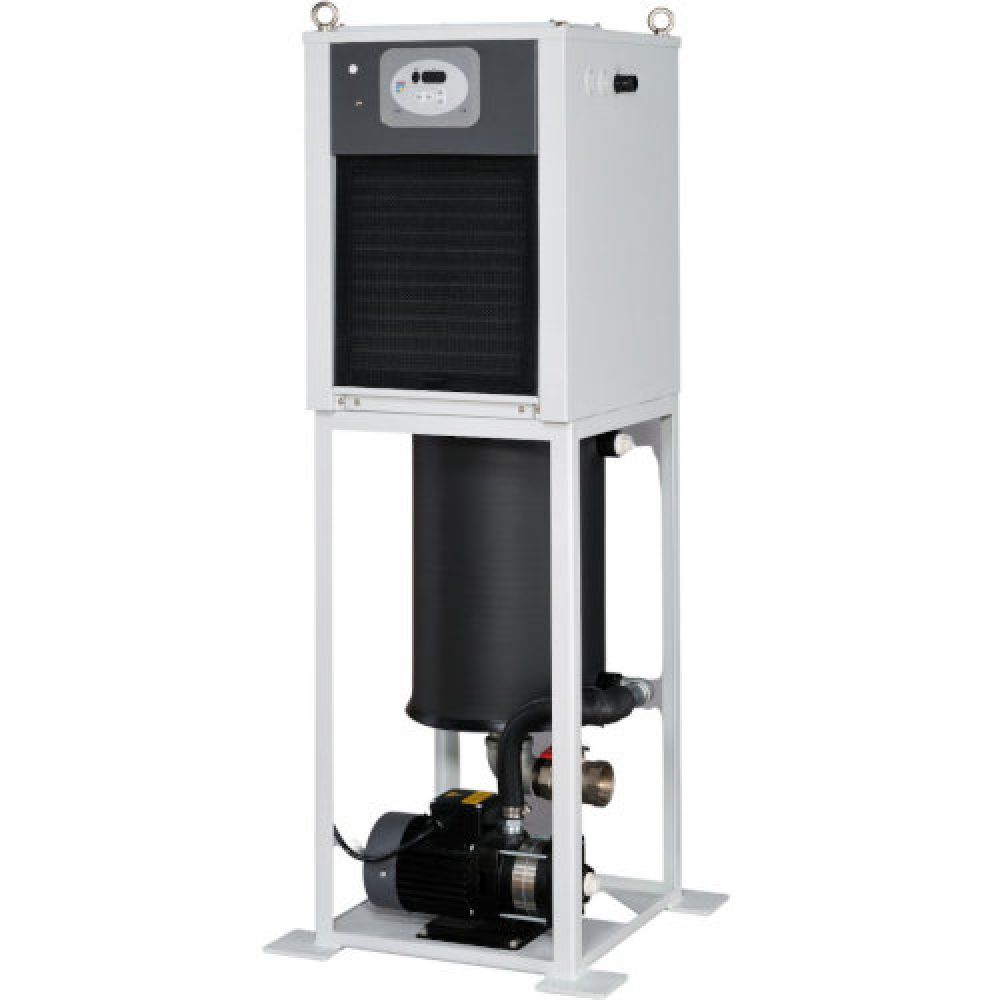

Habor HE Series Oil Cooler

Contact us for current availability
View all specifications

HE Series

Oil cooler for E.D.M (Electrical Discharge Machining)

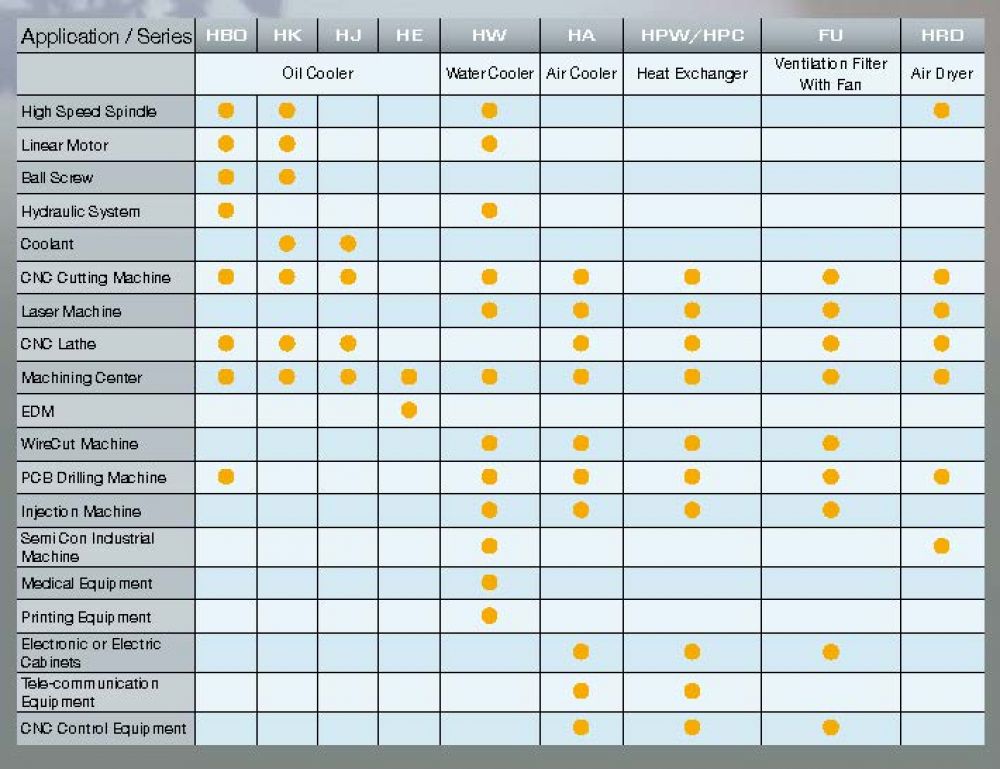

Habor refrigeration chillers (utilised in both oil and water-cooling installations) are manufactured in Taiwan. The Habor range of chillers is broad and can be found in multiple applications including, precision CNC machine tools & spark errosion processes (for cooling their hydraulic systems and cooling of cutting fluids.

The Habor chillers have been precision engineered to deliver accurate fluid temperature control for optimal performance and reliability.

The HE range has been designed specifically for use with E.D.M (Electrical Discharge Machining)


  • Prevents premature deterioration of oil therefore prolonging oil life
  • Open coil design prevents blockages associated with circulation systems
  • Maintains a stable dielectric fluid which in turns improved process quality
  • Reduces premature wasting of the electrode
  • Significantly reduces air born pollution and odours
  • Provides accurate temperature management to ensure sensitive components, I.e. spindles and gear units can operate at their peak efficiency
  • Simple operation system with built in logger and feedback
  • Manufactured from anti-corrosive materials

Looking to repair your chiller?

We offer a comprehensive range of spare parts to repair your existing Habor chiller unit . Please call +44(0)1172 130042 or Email with your chiller part and serial number for availability.

Downloads & Datasheets

Model Number HE-250S HE-400S HE-600S HE-750S HE-900S HE-1000S HE-2RS HE-3RS
Cooling capacity KCAL/H. 50/60Hz 840/1000 1250/1500 1700/2100 2600/3000 3200/3800 3750/4500 5000/6000 7500/9000
Cooling capacity W. 50/60Hz 980/1170 1450/1750 1970/2450 2900/3500 3700/4400 4350/5250 5820/6980 8720/10470
Cooling capacity BTU/H. 50/60Hz 3360/4000 5000/6000 6700/8400 10000/12000 12800/15200 15000/18000 20000/24000 30000/36000
Temperature controller: A Fixed temperature control type (setting range 10~40°C)
Temperature controller: Differential temperature control type (tacing ambient/machine body temperature (setting range -9.9~+9.9°C)
Use range. Ambient Temp °C 10~40°C (Standard)
Use range. Oil Temp °C 10~45°C
Power source 3Ø 200~230V 5060Hz
Motor. Compressor 478 845 1185 1500 1700 2480 3350
Motor. Fan 50 180 350
Piping diameter. Inlet PT 1/2" PT 1" PT 1-1/4"
Piping diameter. Outlet PT 1/2" PT 1" PT 1-1/4"
Max pressure loss (kgf/cm²)  3.0
Dimension WxDxH (mm)  370x450x925 373x475x765 370x475x840 575x430x1045 480x580x1340 500x770x1295 554x690x1525
Weight (kg) 39 61 73 110 120 160
Noise level (dB)  Below 70 dB(A) Below 80 dB(A)

Please note:

1: The above cooling capacity is based on the condition of ambient temperature 35°C, outlet oil temperature 35°C with oil type ISO VG32.

2: Please contact us for special applications - we will be able to advise on the best unit for your specific application.

3: Different voltages are also avaiable, please specify when you make contact.

4: Design and specification are subject to change without prior notice.

5: The oil tank is an optional components, please specifiy if this is required when making your enquiry.
