Continental Hydraulics PVR50-70B15-RF-O-5L Variable Displacement Vane Pump, 162cc/rev

Continental Hydraulics
In stock - order today
View all specifications


Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

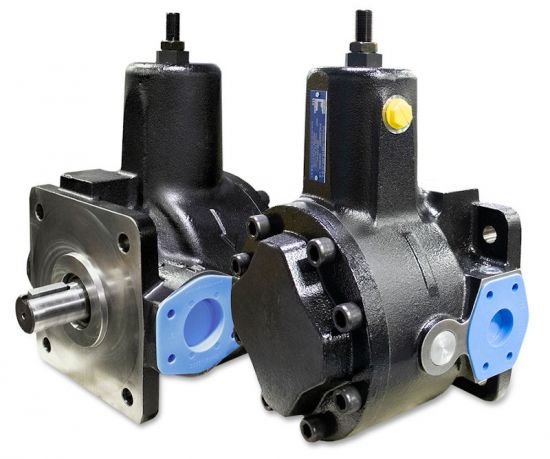

What Makes PowrFlow™ PVR Vane Pumps Your Best Buy?

Continental Hydraulics PowrFlow™ PVR Vane Pumps deliver the rugged, reliable performance and value you’ve come to expect in all our products. They outperform sensitive piston pumps in harsh environments. PVR Vane Pumps deliver faster response, and require less external compensation compared to fixed displacement designs.

Features and Benefits
  • 1500 PSI (103 Bar) Rated at full flow
  • 162cc/rev (235 lpm @ 1450 rpm)
  • 100% Tested
  •  Three Year Warranty
  • Multiple control options avaiable
  • Tandem mount options available
  • Buna or Viton seals

Description PVR50-32A15 PVR50-42A15 PVR50-50B15 PVR50-70B15
Pump Capacity 84.5cc/rev  104cc/rev 126cc/rev 162cc/rev
Rated Continuous Pressure 103 Bar (1500 PSI) 103 Bar (1500 PSI) 103 Bar (1500 PSI) 103 Bar (1500 PSI)
Min Pressure 24 Bar (350 PSI) 27.6 Bar (400 PSI) 24 Bar (350 PSI) 27.6 Bar (400 PSI)
Max Revolution Speed 2200 rpm 2200 rpm 2200 rpm 2200 rpm
Power Input at rated continuous pressure & 1800 rpm 27 kw (36 HP) 31 kw (42 HP) 37 Kw (50 HP) 45 Kw (60 HP)
Mounting Flange 4 Bolt flange mount  4 Bolt flange mount 4 Bolt flange mount 4 Bolt fange mount
Weight 54 Kg (119 lb) 54 Kg (119 lb) 54 Kg (119 lb) 54 Kg (119 lb)
