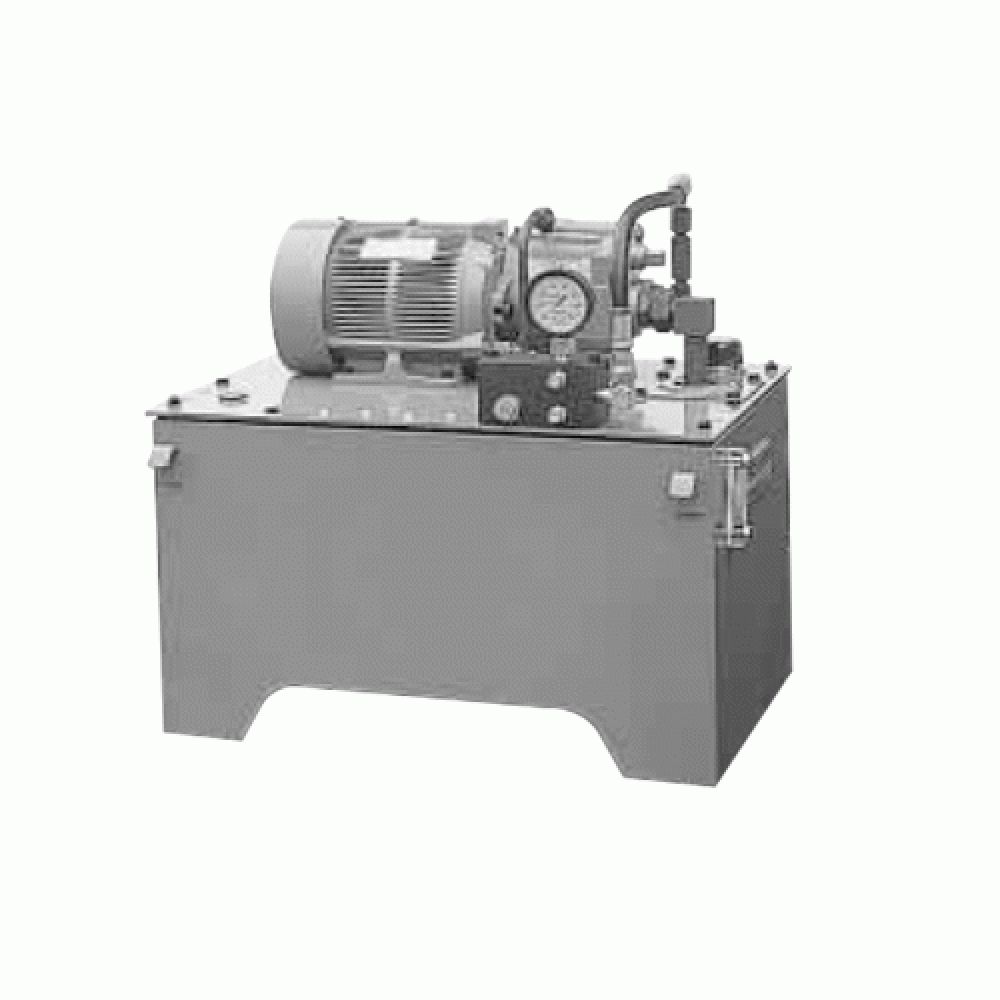

Daikin ND Series - DAIPACK Hydraulic Power Pack image

Daikin ND Series - DAIPACK Hydraulic Power Pack

Name: Zeus Hydratech Ltd
Telephone: +441172130042
Price range: £ - ££££

Daikin

View all specifications ~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

The Daikin ND Series is the best compact size (Tank capacity : 60L).
As V series piston pump is used, it operates quietly and emits soft sound.
Possible to equip G02 sized stack valve and a control system is easily built in a main system (two~six links).

Downloads & Datasheets

Daikin - ND- DAIPACK Oil Cooler - Datasheet

Description	ND 151-102-40	ND 151-103-40
Displacement Volume	14.8 cm³/rev	14.8 cm³/rev
Motor Capacity Output/Pole No	1.5 KW/4P	2.2 KW/4P
Tank Volume	60 Ltr	60 Ltr
Max Operating Pressure	7 MPa {70 kgf/cm²}	7 MPa {70 kgf/cm²}
Pressure Adjusting Range	0.8 ~ 7 {8 ~ 70 kgf/cm²}	0.8 ~ 7 {8 ~ 70 kgf/cm²}
Displacement Volume Set at Factory (50Hz)	5 ~ 21 L/min	5 ~ 21 L/min
Displacement Volume Set at Factory(60 Hz)	6 ~ 25 L/min	6 ~ 25 L/min
Pressure Set at Factory	3.5 MPa {35 kgf/cm²}	5.5 MPa {55 kgf/cm²}
Weight	110 kg	120 kg
