Duplomatic ECL - Power Saving Device for On-Off Solenoid Valves

Duplomatic

View all specifications ~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

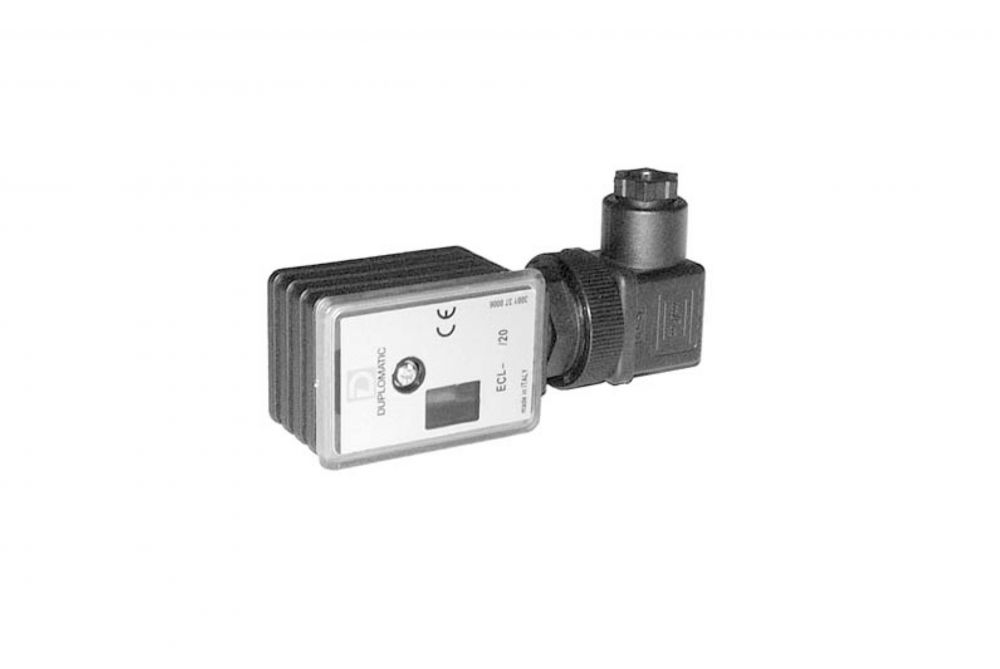

The Duplomatic ECL connector is a digital amplifier controlling open loop on-off valves directly from PLC. The unit supplies a set current independently from temperature variations or load impedence. Setting is possible by buttons and display inside the case, or with a PC by RS232 with the software EDC-PC/10.

Downloads & Datasheets

Duplomatic - ECL - Power Saving Device for On-Off Solenoid Valves - Data Sheet

Description	Units
Power Supply	8 ÷ 30 Ripple Included
Max Current	2,60 A
Absorbed Current with Valve not Switched	40 mA
Current Absorbed by the Switching Command (at 30 VDC)	10 Max mA
Full Power Feeding Time	50 ms
Holding Current Regulating Range	50 ÷ 100 % I MAX
Holding Current Default	40 % I MAX
Connector Type	FIN 43650
Electromagnetic Compatibility (EMC) - Emissions CEI EN 61000-6-4	According to 2004/108/CE Standards
Electromagnetic Compatibility (EMC) - Immunity CEI EN 61000-6-2	According to 2004/108/CE Standards
Protection to Atmospheric Agents	IP 65 - 67
Operating Temperature Range	-20 / 70°C
Mass	0,10 kg
