Habor HWK Series Water Cooler

Habor
Contact us for current availability
View all specifications

HWK Series

Water Heat Exchanger

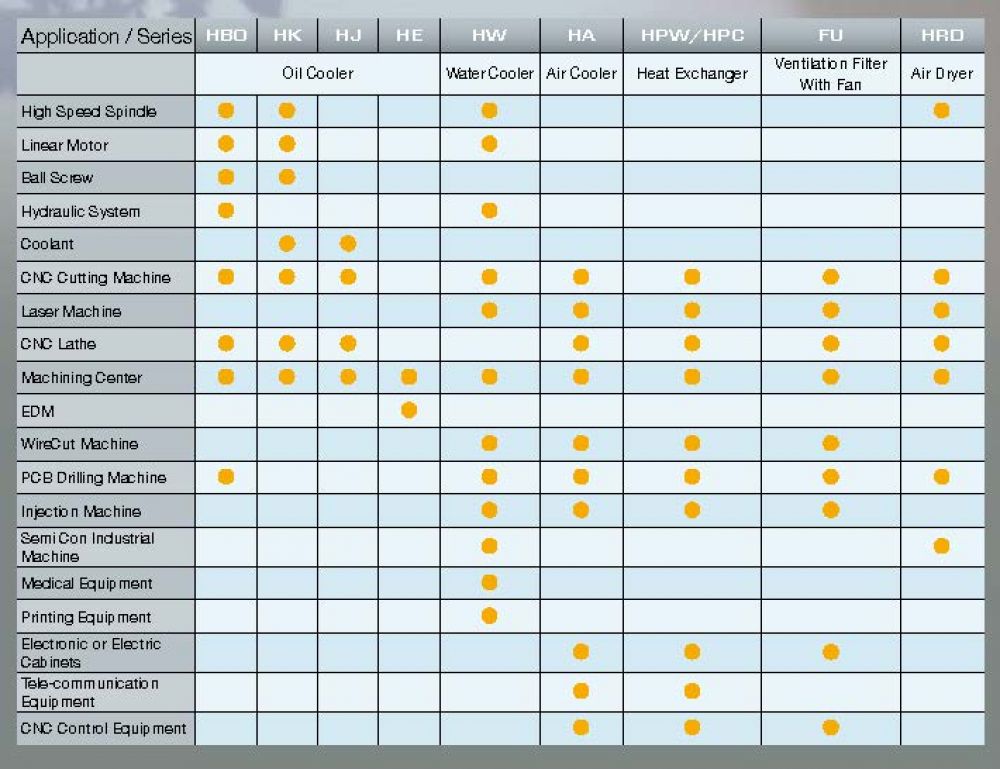

Habor refrigeration chillers (utilised in both oil and water-cooling installations) are manufactured in Taiwan. The Habor range of chillers is broad and can be found in multiple applications including, precision CNC machine tools & spark errosion processes (for cooling their hydraulic systems and cooling of cutting fluids.

The Habor chillers have been precision engineered to deliver accurate fluid temperature control for optimal performance and reliability.

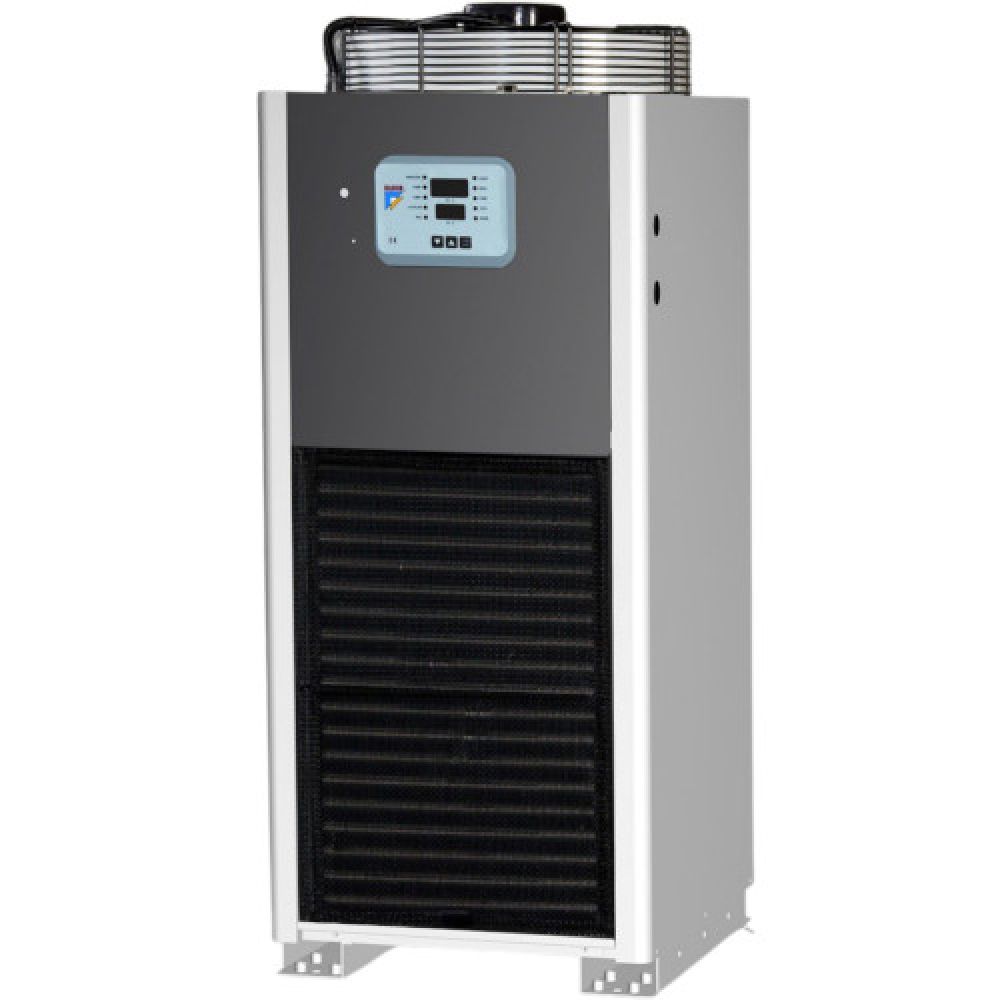

The HWK range is a Vertical water heat exchanger unit with tank.

Features:

  • Precision temperature control for industrial machines to improve production efficiency.
  • Stainless steel construction for use with water
  • Multi safety features for safe operation
  • No requirement for cooling tower
  • No requirement for heat exhaust

Looking to repair your chiller?

We offer a comprehensive range of spare parts to repair your existing Habor chiller unit . Please call +44(0)1172 130042 or Email with your chiller part and serial number for availability.

Downloads & Datasheets

Model Number HWK-50PTS HWK-250PTS HWK-400PTS HWK-600PTS HWK-750PTS HWK-900PTS HWK-1000PTS HWK-2RPTS HWK-3RPTS HWK-4RPTS HWK-5PTS

Cooling capacity

KCAL/H. 50/60Hz 450/500 840/1000 1400/1500 1700/2100 2600/3000 3200/3800 3750/4500 5000/6000 7500/9000 10000/12000 12500/15000
W. 50/60Hz 525/580 980/1170 1630/1750 1980/2450 2900/3500 3700/4400 4350/5250 5820/6980 8720/10470 11630/13960 14540/17450
BTU/H. 50/60Hz 1800/2000 3360/4000 5600/6000 6800/8400 10000/12000 12800/15200 15000/18000 20000/24000 30000/36000 40000/48000 50000/60000
Temperature controller

A Fixed temperature control type (Setting range 10~40°C)
Differential temperature control type (tracing ambient.machine body temperature, setting range  -9.9~+9.9°C
Use range

Ambient Temp °C 10~40°C (Standard)
Liquid Temp °C 10~30°C
Power source 3Ø 200~230V 5060Hz
Motor Compressor 460 740 1136 1450 1700 2480 3350 4400 5500
Fan 56 50 95 180 350 500
Pump 120 750
Pump flow rate (L/min) 50Hz 2 40 60 80
60Hz 3.5 50 80 130
Max lift from pump (L/min) 50Hz 30 28 36
60Hz 38 40 53
Piping diameter

Inlet PT 1/2" PT 3/4" PT 1" PT 3/4"
Oultlet PT 1/2" PT 3/4" PT 1" PT 3/4"
Water tank capacity 7L 13L 35L 22L 40L 90L
Dimension WxDxH (mm)  367x508x567 370x483x925 425x500x1100 430x640x1295 550x770x1295 553x677x1430 1085x780x1400
Weight (kg) 48 69 95 107 112 150 218 253
Noise level (dB)  Below 70 dB(A)   Below 80 dB(A)

Please note:  The cooling capacity stated above is based on the condition of liquid temperature 22°C, Ambient temperature of 32°C and 60Hz.
