Continental Hydraulics - C03MSV-D - Direct Operated Check Valve

Continental Hydraulics
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

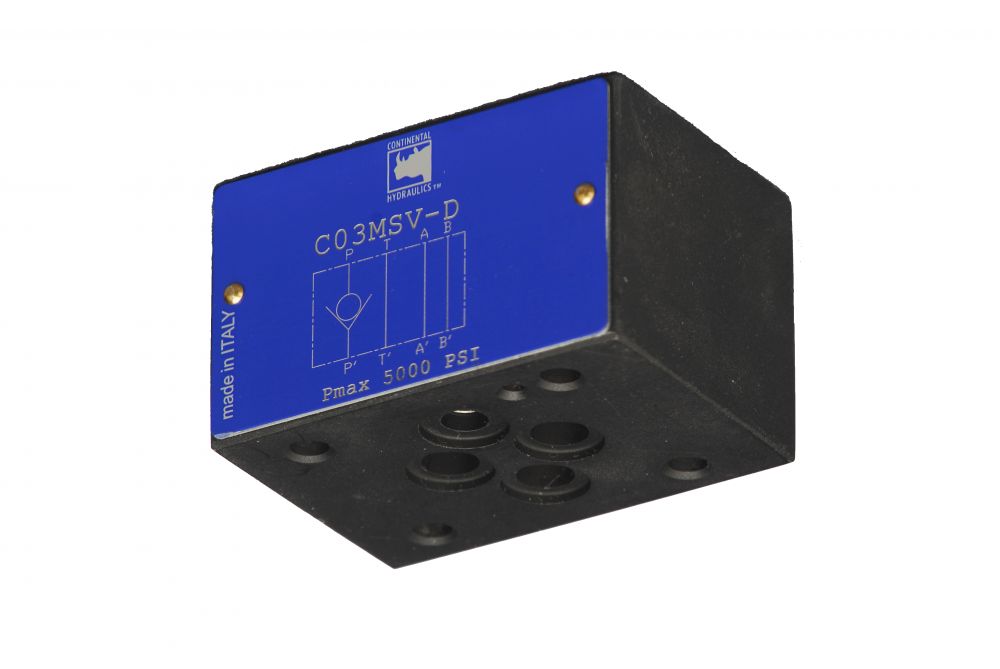

The Continental Hydraulics C03MSV-D valve utilizes a cartridge type, guided poppet, and hydraulic check valve as a blocking or load holding device for high-pressure applications.

Features and Benefits
  • All external parts are zinc plated for long life against elements.
  • All cartridges are 100% functionally tested.
  • Industrial common cavities.

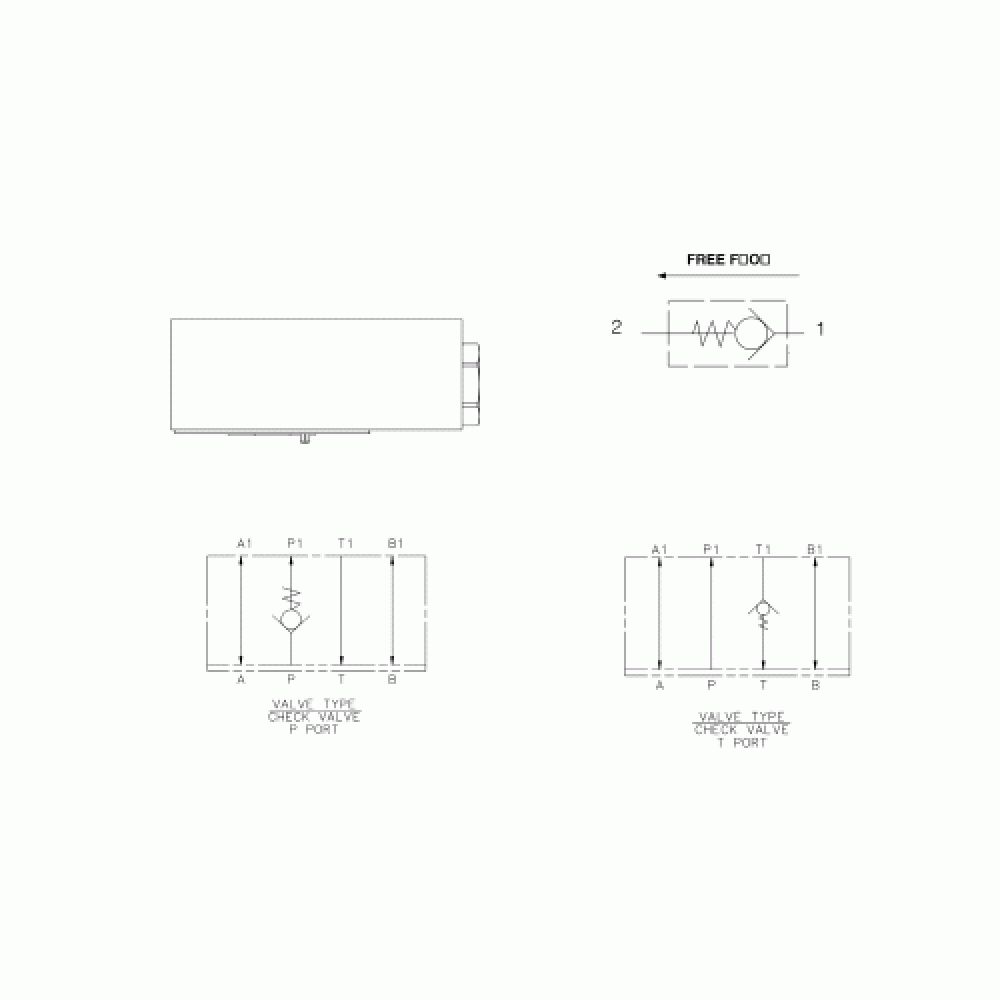

  • This valve allows free flow in one direction and blocks flow in the opposite direction.


Valve Bodies: 3000 PSI (207 Bar) = Aluminum (2024-T4)
Flow: 20GPM (75L/M) Nominal
Estimated Shipping Weight: 2 # Aluminum
