Continental Hydraulics - Cetop 3. F03MSV-C - Flow Control Valve, with Check

Continental Hydraulics
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

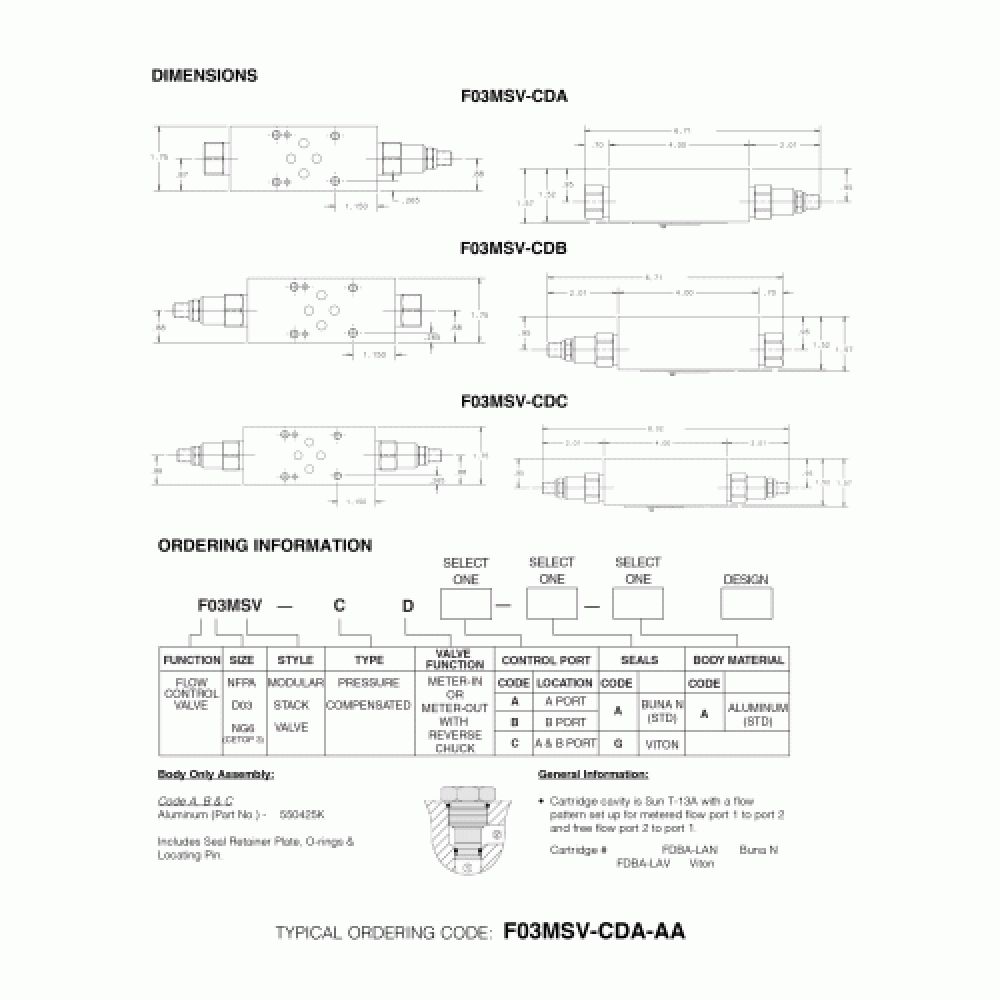

The Continental Hydraulics - F03MSV-C modular stack valve is a non-compensated flow control valve with a check valve for reverse free flow. This valve increases its orifice value from fully closed to fully open with counter-clockwise rotation. Meter-in or meter-out configuration is determined by the orientation of the body to mounting surface. Available with flow control function on line A, B, or both A B.

Description Units
Maximum Operating Pressure 5000 PSI (350 bar)
Cracking Pressure 7 PSI (0.5 bar)
Controlled Lines Maximum Flow Rate 13 gpm (50 l/min)
Free Lines Maximum Flow Rate 20 gpm (75 l/min)
Minimum Flow Rate ≤0.015 gpm ≤ 0.06 l/min
Mounting Surface NFPA D03 ISO 4401-03-02-0-05
Weight 1.3 kg
