Continental Hydraulics - Cetop 5. C05 MSV-P Pilot Operated Check Valve

Continental Hydraulics
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

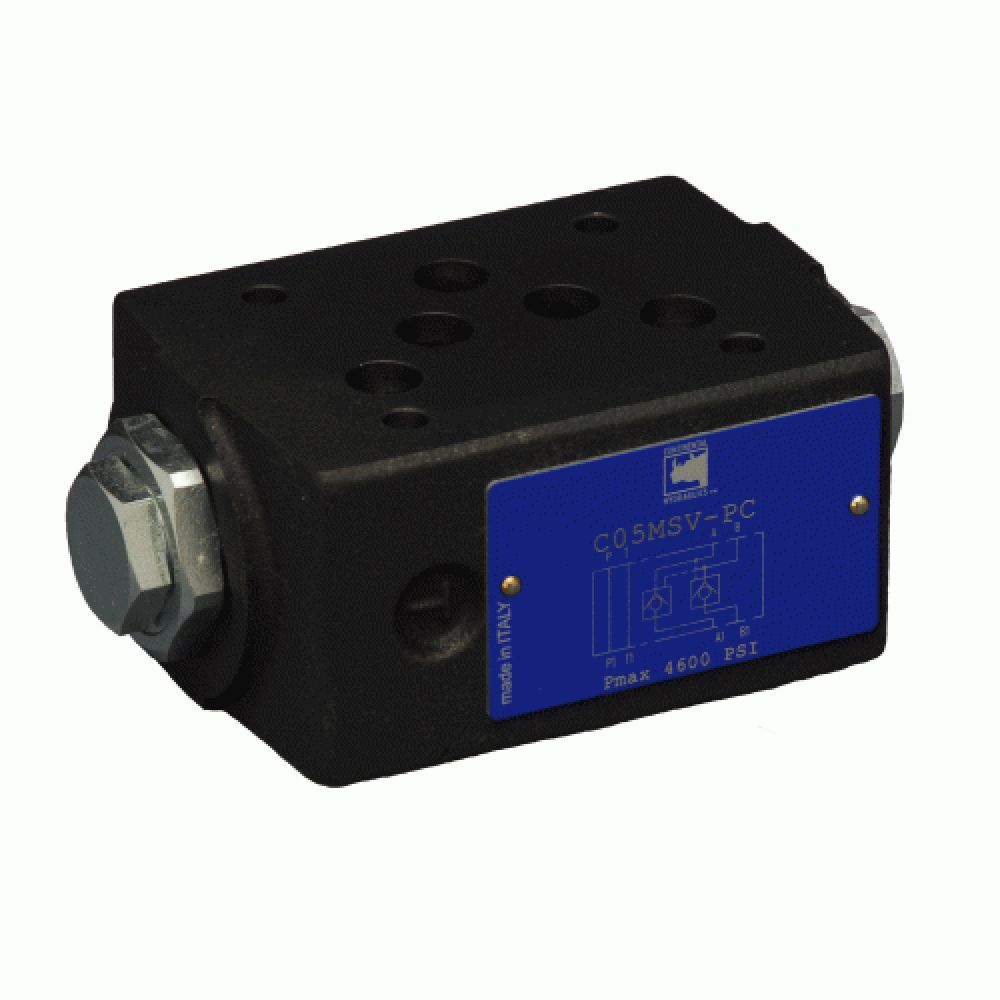

The C05 MSV-P valve utilizes a guided spool and poppet-seat check valves as a blocking or load-holding device for high pressure applications. This valve allows free flow from the directional control valve work port to the load and blocks flow in the opposite direction. Flow is allowed from the load to the directional control valve work port when 40% of the load induced pressure is sensed in the opposing directional control valve work port.

Mounting Surface NFPA D05 (ISO 4401-05-04-0-05) Max Pressure 4600 PSI (350 bar) Max Flow Rate 32 gpm (120 l/min)
