Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

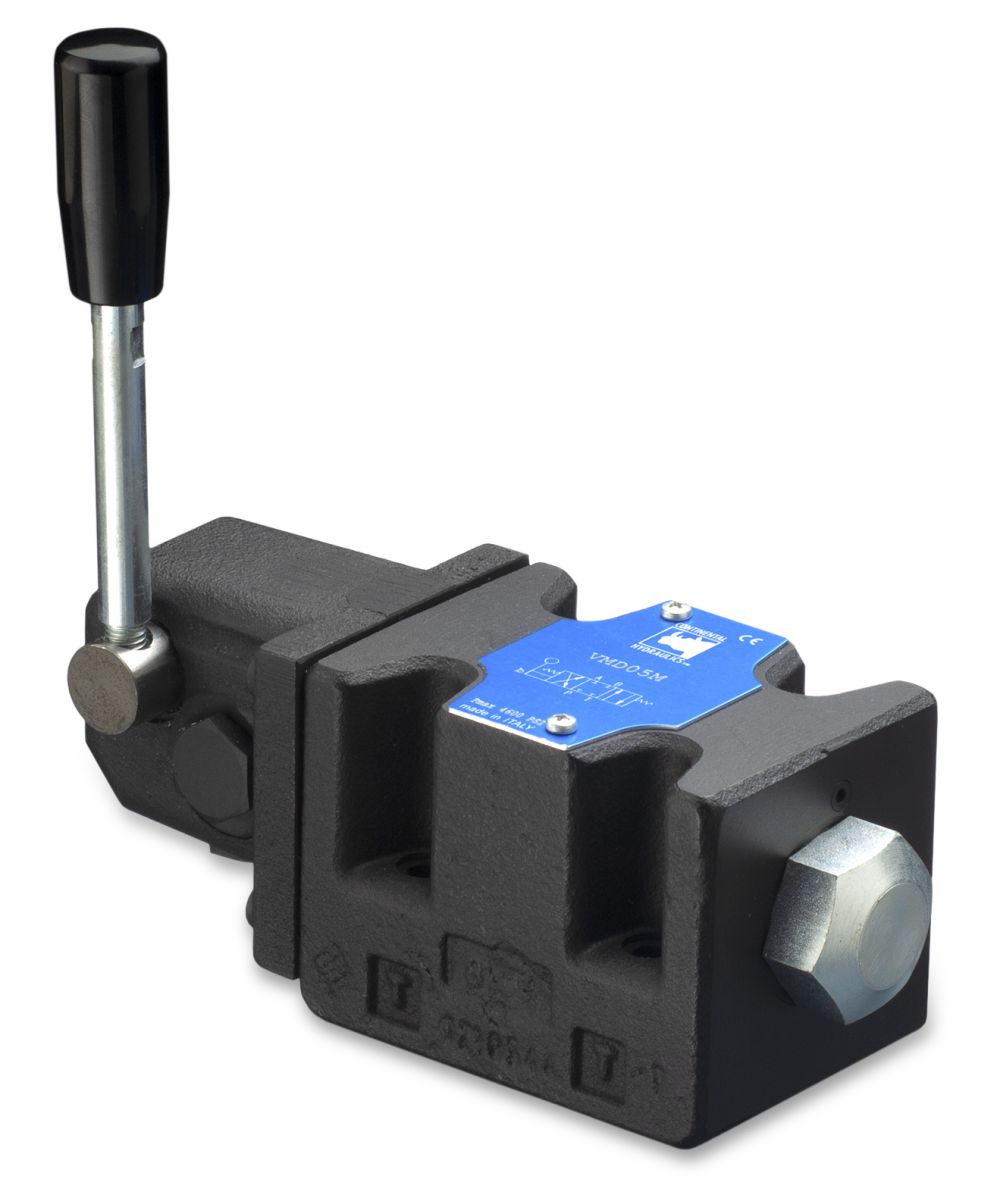

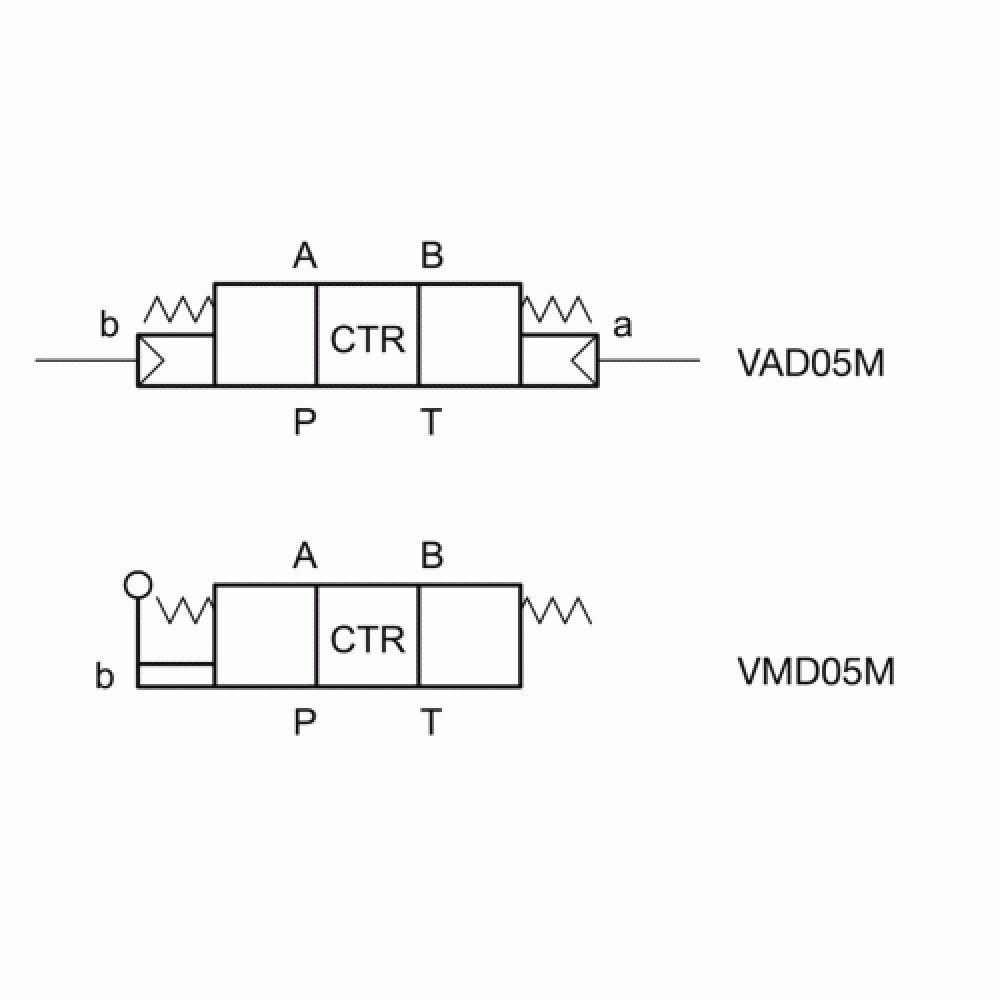

The Continental Hydraulics VAD05M - VMD05M directional control valves with air pilot actuation, hydraulic pilot actuation and lever actuation. These valves conform to NFPA D05 and ISO 4401 mounting standards. They are available in both 3 way and 4 way styles. All versions are available in 2 position spring offset, 2 position detent, 2 position spring centered and 3 position spring centered versions. The lever valve also is available in a 3 position detent model. A wide range of spools for different requirements are available.
| Description | Model Series | Units |
|---|---|---|
| Mounting Surface | VA,VM | NFPA D05 (ISO 4401-05-04-0-05) |
| Maximum Operating Pressure on P,A,B Ports | VA,VM | 4600 psi / 320 bar |
| Maximum Operating Pressure on T Ports | VM VA Internal drain VA external drain |
2300 psi / 160 bar 360 psi / 25 bar 4600 psi /320 bar |
| Maximum Pilot Pressure | VA | 175 psi / 12 bar |
| Minimum Pilot Pressure | VA | 65 psi / 4.5 bar |
| Flow Rate | VA | 32 gpm / 120 l/min |
| Maximum Weight | VM | 9.3lbs / 4.2 kg |
| Ambient Temperature Range | VA,VM | -4 to 130 °F / -20 to 54°C |
| Fluid Temperature Range | VA,VM | -4 to 180°F / -20 to 82°C |
| Fluid Viscosity Range | VA,VM | 60 - 1900 SUS / 10 - 400 cSt |
| Recommended Fluid Viscosity | VA,VM | 120 SUS / 25 cSt |
| Fluid Contamination | VA,VM | ISO 4406:1999 Class 20/18/15 |
