Continental Hydraulics - VED*HL KD2 Hazardous Location, Proportional, Direct & Pilot Operated Valves Explosion Proof

Continental Hydraulics
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

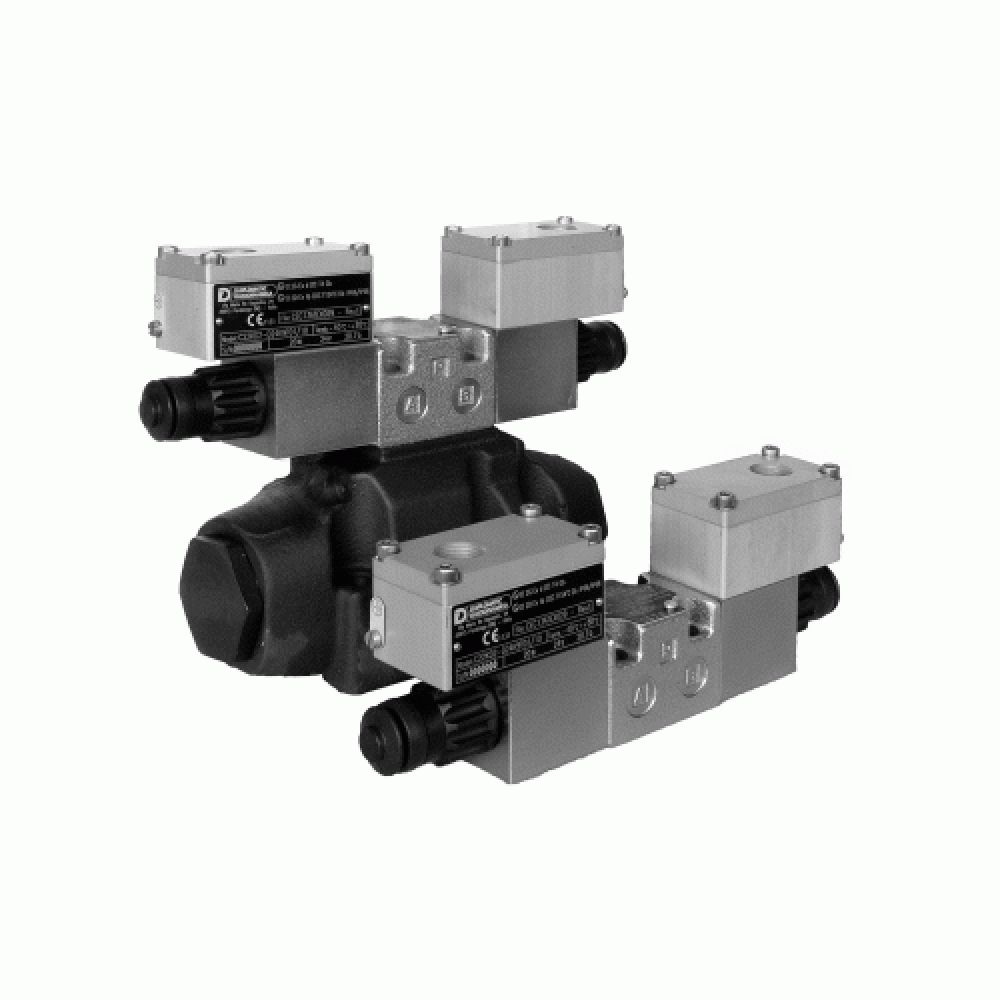

The VED*HL KD2 proportional, direct & pilot operated valves are in compliance with ATEX 94/9/EC standards. They are suitable for use in potentially explosive atmospheres which fall within ATEX || 2GD classification for gas and dust. The VED*HL KD2 valve is supplied with a Zinc-Nickel surface treatment to ensure a salt spray resistance of up to 600 h. (test conducted per UNI EN ISO 9227 and evaluated per UNI EN ISO 10289).

The Zinc-Nickel surface treatment is available on the pilot operated valves upon request. A statement of conformity to the applicable standards is supplied with each valve. The label and electrical box on these valves have a concentration of magnesium lower than the critical value of 7.5% for the Hazardous Environments.


Description VED03HL VED05*HL VED07HL VED08HL VED10HL
Maximum Operating Pressure P - A - B Ports 5000 psi / 350 bar 5000 psi / 350 bar 5000 psi / 350 bar 5000 psi / 350 bar 5000 psi / 350 bar
Maximum Operating Pressure T Port (Ext.Drain) - 3600 psi / 250 bar 3600 psi / 250 bar 3600 psi / 250 bar 3600 psi / 250 bar
Maximum Operating Pressure T Port (Ext.Drain) 3000 psi / 210 bar 145 psi / 10 bar 145 psi / 10 bar 145 psi / 10 bar 145 psi / 10 bar
Pilot Pressure Minimum - 435 psi / 30 bar 435 psi / 30 bar 435 psi / 30 bar 435 psi / 30 bar
Pilot Pressure Maximum - 3000 psi / 210 bar 3000 psi / 210 bar 3000 psi / 210 bar 3000 psi / 210 bar
Max Flow Rate 20 gpm / 76 l/min 48 gpm / 180 l/min 119 gpm / 450 l/min 211 gpm / 800 l/min 423 gpm / 1600 l/min
Mounting Surface NFPA D03 ISO 4401-03-02-0-03 NFPA D03 ISO 4401-03-02-0-03 NFPA D03 ISO 4401-03-02-0-03 NFPA D03 ISO 4401-03-02-0-03 NFPA D03 ISO 4401-03-02-0-03
Max Weight 6.2 lbs / 2.8 kg 18.3 lbs / 8.3 kg 23.6 lbs / 10.7 kg 37.3 lbs / 16.9 kg 119 lbs / 53.5 kg
