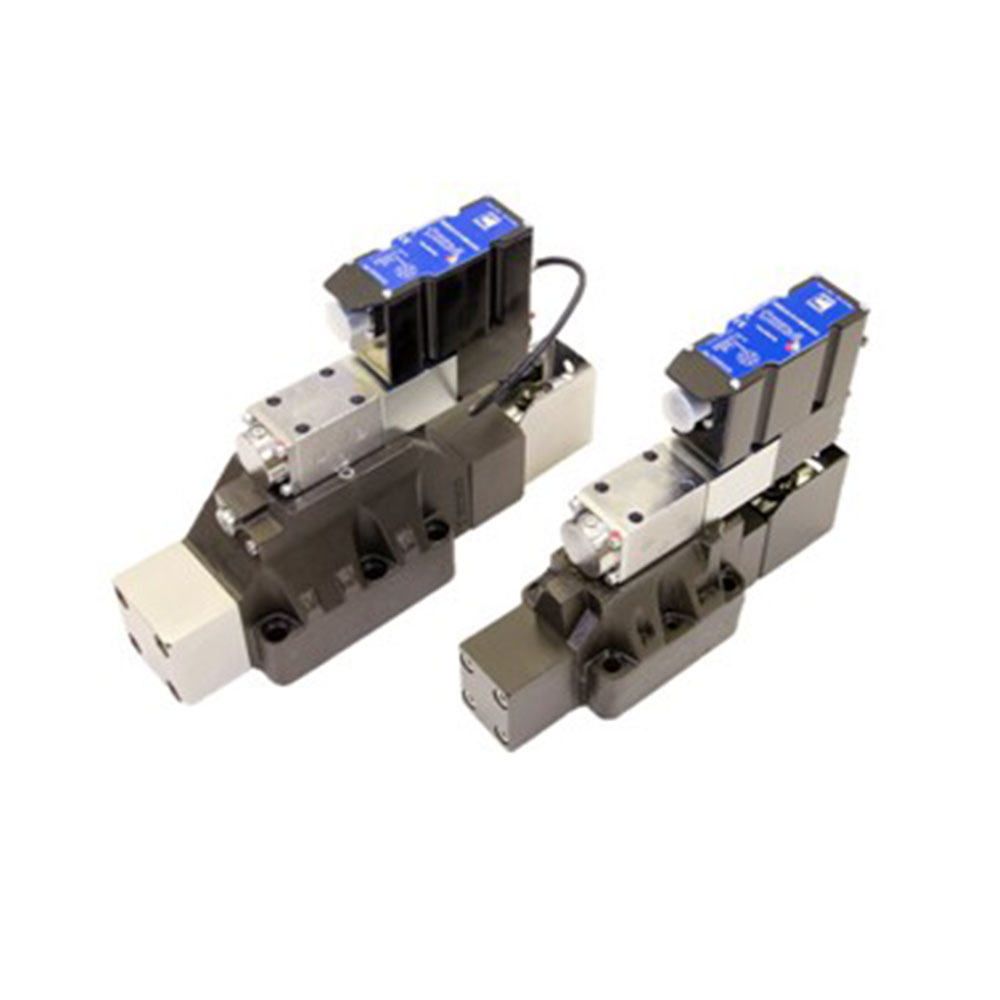

Continental Hydraulics VED*MX - High Performance Proportional Directional Control Valve

Continental Hydraulics VED03MX, High Response 4-way proportional valve with precision lapped Spool, Dual position sensing LVDT’s and Enhanced On-Board Digital Amplifier.

Features and Operation

The VED*MX pilot operated 4-way Proportional valves, conform to NFPA and ISO 4401:2005 (CETOP RP 121H) mounting standards. The main spool position is controlled by highly dynamic pilot valve in closed loop via linear transducer LVDT for high precision, repeatability and increased control.

• High flow pilot valve for high performance over a wide range of pilot pressures
• On-Board Digital Control resulting in extremely low Phase Lag and high frequency operation

• High performance Pilot Valve
• High Precision Lap Spools

• Dual Spool position feedback
• Class leading High frequency response
