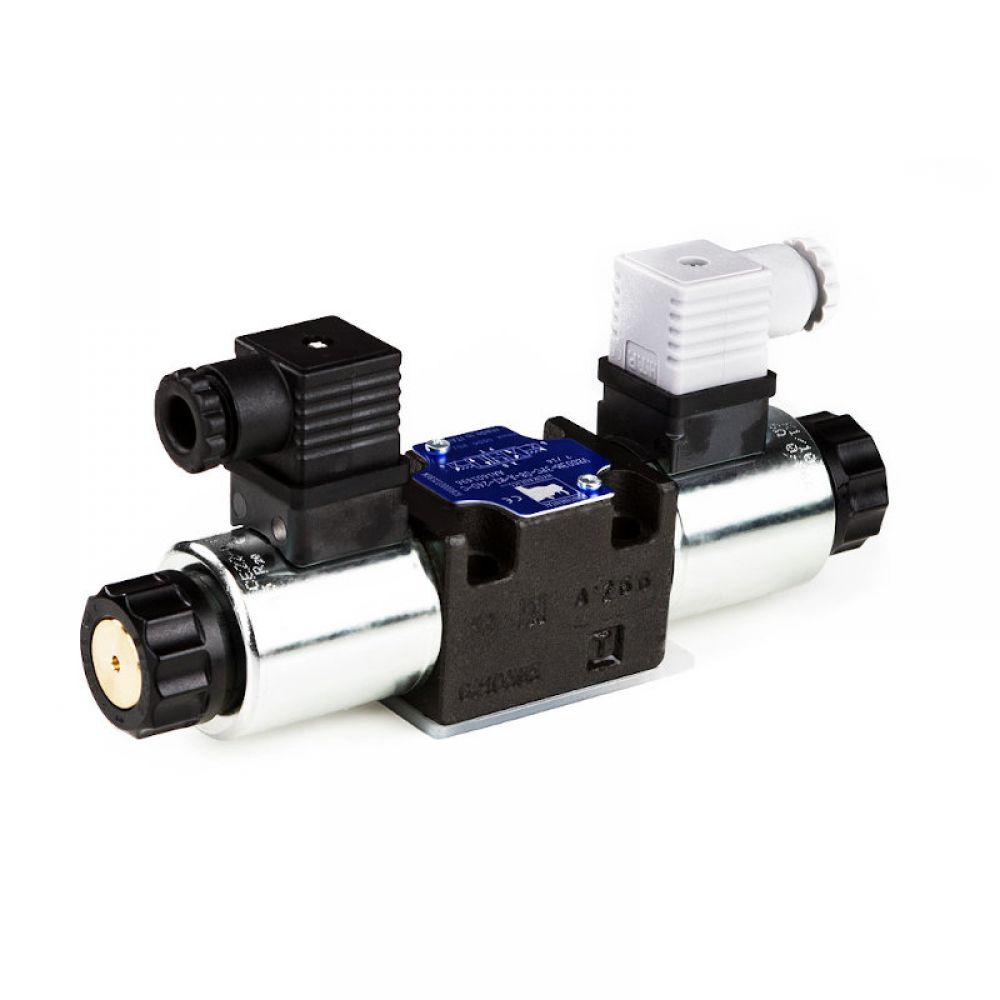

Continental Hydraulics VSD03M - Solenoid Operated Directional Control Valve

Continental Hydraulics
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VSD03M valves conform to NFPA D03 and ISO 4401 mounting standards. They are available in both 3 way and 4 way styles. All versions are available in 2 position spring offset, 2 position detent, 2 position spring centered and 3 position spring centered versions. A wide range of spools are available. Standard and CSA approved versions are available.

Description Units
Maximum Operating Pressure P - A - B Ports 5000 psi / 350 bar
Maximum Operating Pressure T Ports 3000 psi / 275 bar
Flow Rate 20 gpm / 76l/min

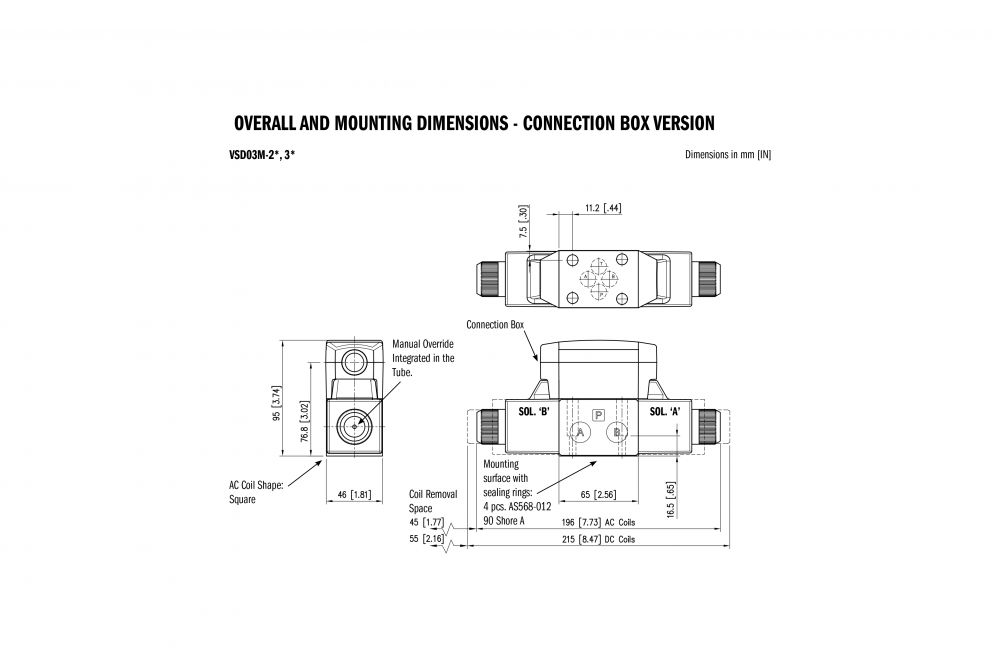

 Mounting Surface  NFPA D03 ISO 4401-03-02-0-03
 AC Maximum Weight  4lbs / 1.8kg
 DC Maximum Weight  4.6 lbs / 2.1 kg
 Ambient Temperature Range  -4 to 130°F / -20 to 54°C
 Fluid Temperature Range  -4 to 180°F / -20 to 82°C
 Fluid Viscosity Range  60-1900 SUS / 10-400cSt
 Recommend Fluid Viscosity  120 SUS / 25cSt
