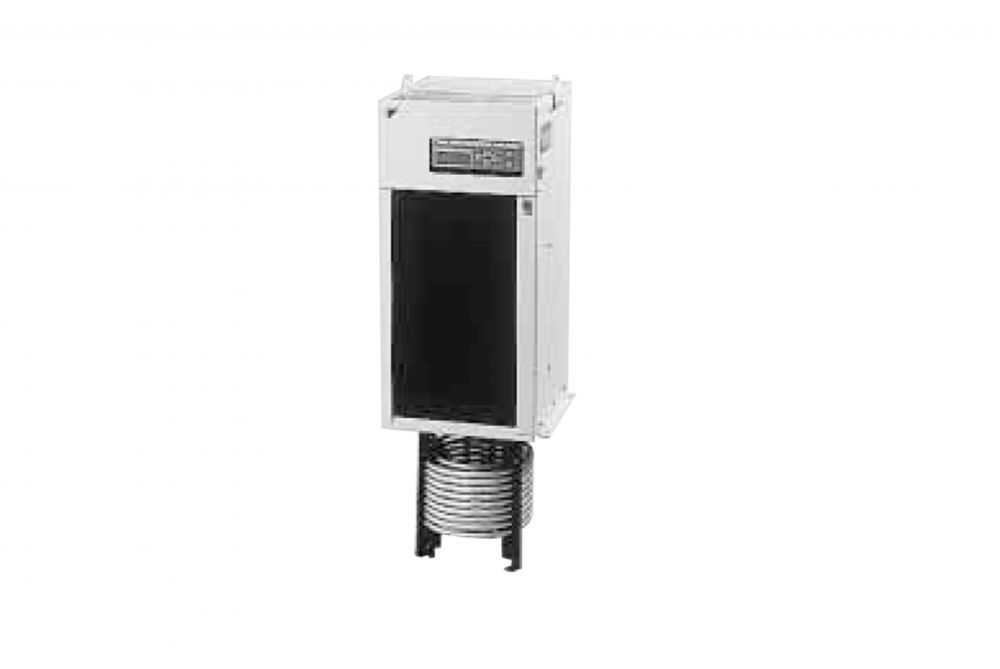

Daikin AKJ - Oil Cooling Unit

Daikin
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

The Existing Daikin AKJ "0" series has been fully changed to the new line-up AKJ (H) "6" series. It realizes enriched line-up with both performance and functions.


Enriched line-up

The new four HP model is added to the existing 1/2, 1, 1.2 HP. It becomes the new line-up with 4 models in total.


Standardization of the attached heater timer specs

In addition to existing [cooling only AKJ type], [heater timer] (AKJH type) is specked in as standard specification.


Expansion of the viscosity range

The usable viscosity range is expanded from "up to ISO VG2" of existing value to "up to VG32" for the new.


Widen range of usable temperature range (No.1 in the industry)

The usable range in either room temperature or liquid temperature is expanded as from 10~40°C to 5~45°C or from10~40°C to 5~50°C respectively.


Mounted a micro computer with multiply function

Liquid crystal display is adopted on a control panel. It is possible to display many types of displays like a digital of operation mode, many variety of monitor and individual self-diagnosis alarm. Besides, thermometer and timer functions are provided as standard accessories, resulting in easy utility.


Slim for new design

Slim and compactness realizes a space saving for installations.


To put importance on the characteristics of installation and maintenance

Front suction and upper exhausting system keep superiority for installation and maintenance works.

Downloads & Datasheets

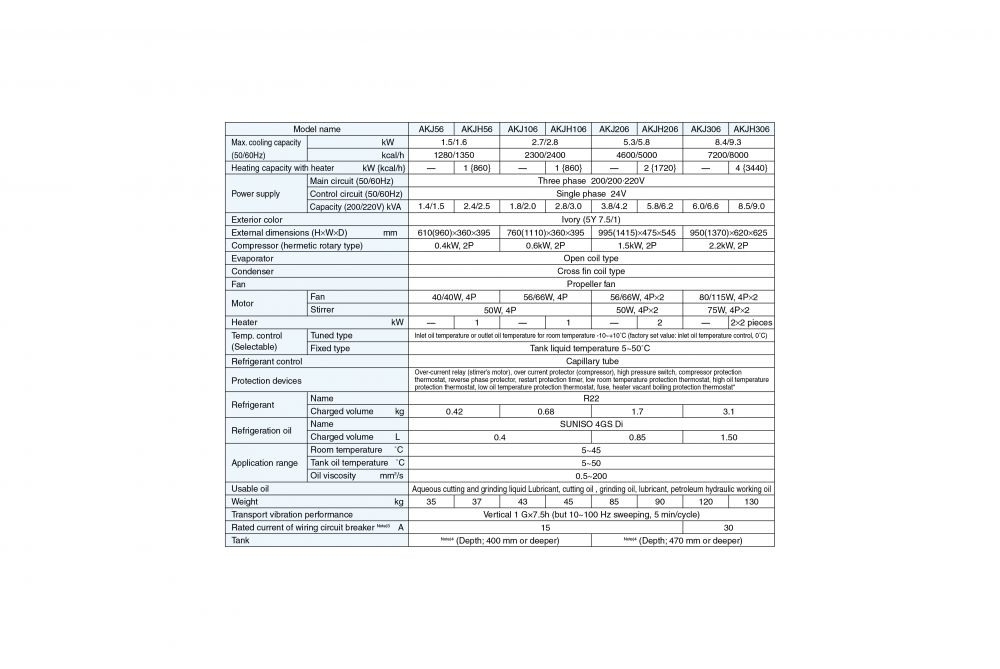

Description AKJ56 AKJ106 AKJ206 AKJ306
Maximum Cooling Capacity 1.5 / 1.6 kW 2.7 / 2.8 kW 5.3 / 5.8 kW 8.4 / 9.3 kW
Power Supply Main Circuit (50/60 Hz) Three Phase 200/200-220V Three Phase 200/200-220V Three Phase 200/200-220V Three Phase 200/200-220V
Power Supply Control Circuit (50/60Hz) Single Phase 24V Single Phase 24V Single Phase 24V Single Phase 24V
Power Supply Capacity (200/220V) 1.4 / 1.5 kVA 1.8 / 2.0 kVA 3.8 / 4.2 kVA 6.0 / 6.6 kVA
Compressor (hermetic rotary type) 0.4 kW, 2P 0.6 kW, 2P 1.5 kW, 2P 2.2 kW, 2P
Evaporator Open Coil Type Open Coil Type Open Coil Type Open Coil Type
Condenser Cross fin coil type Cross fin coil type Cross fin coil type Cross fin coil type
Fan Propeller fan Propeller fan Propeller fan Propeller fan
Room Temperature Application Range 5 - 45 °C 5 - 45 °C 5 - 45 °C 5 - 45 °C
Tank Oil Temperature Application Range 5 - 50 °C 5 - 50 °C 5 - 50 °C 5 - 50 °C
Oil Viscosity 0.5 - 200 mm²/s 0.5 - 200 mm²/s 0.5 - 200 mm²/s 0.5 - 200 mm²/s
External Dimensions (H x W x D) 610 × 360 × 395 mm 760 × 360 × 395 mm 995 × 475 × 545 mm 950 × 620 × 625 mm
Weight 35 kg 43 kg 85 kg 120 kg
