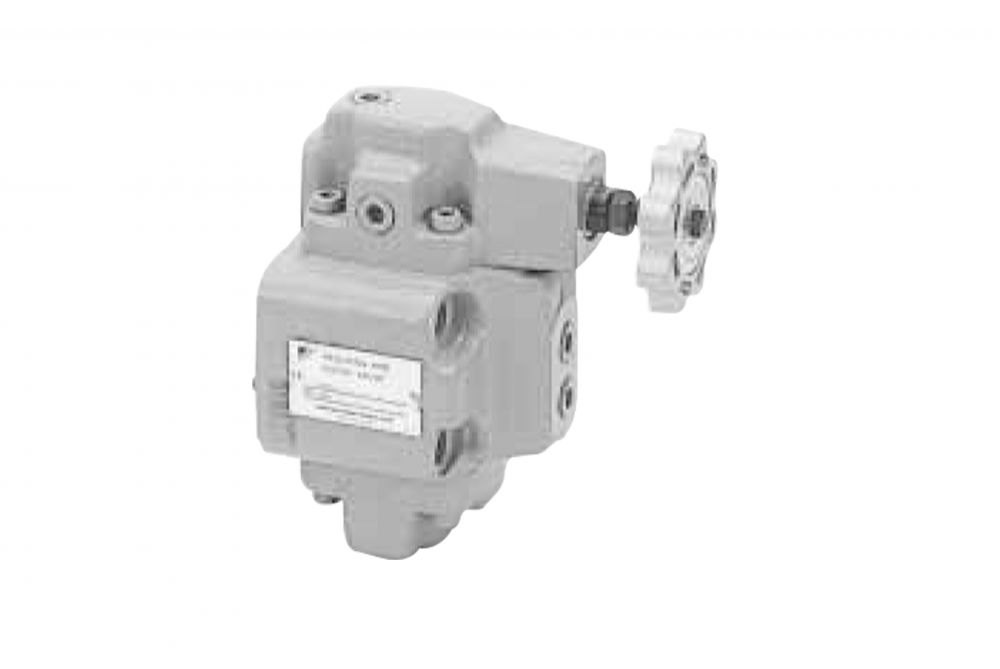

Daikin JGB - Reducing and Check Valve (Gasket Type)

Daikin
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

The Daikin JGB Reducing and Check valve is used when the pressure in a partial oil circuit is set lower than a main circuit. Even if the primary main circuit varies, the secondary pressure can be kept constant. If a remote control relief valve is connected to a vent port, the branch circuit pressure can be controlled.

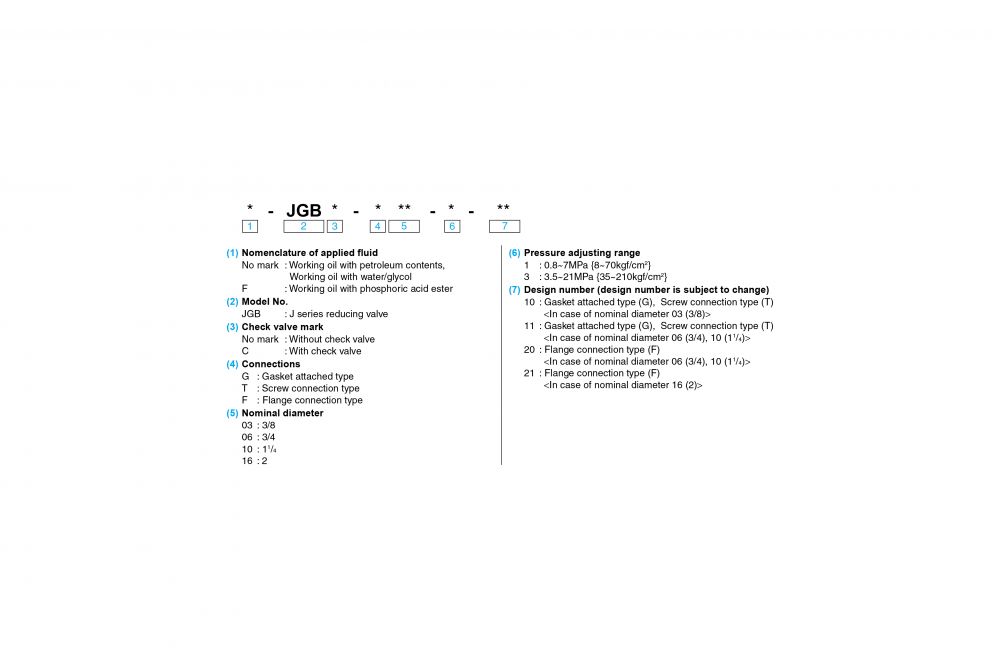

Description JGB(C)-G03-1-10 JGB(C)-G03-3-10 JGB(C)-G06-1-11 JGB(C)-G06-3-11 JGB(C)-G06-1-11 JGB(C)-G06-3-11
Nom Diameter 3/8 3/8 3/4 3/4
Max Operating Pressure 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²}
Pressure Adjusting Range 0.8 ~ 7 MPa (8 ~ 70 kgf/cm²) 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²) 0.8 ~ 7 MPa (8 ~ 70 kgf/cm²) 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²) 0.8 ~ 7 MPa (8 ~ 70 kgf/cm²) 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²)
Max Flow Rate 50 L/min 50 L/min 120 L/min 120 L/min 280 L/min 280 L/min
Drain Rate 0.8 ~ 1 L/min 0.8 ~ 1 L/min 0.9 ~ 1.1 L/min 0.9 ~ 1.1 L/min 1.2 ~1.5 L/min 1.2 ~1.5 L/min
