Daikin JM - Manually Operated Valve

Daikin
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

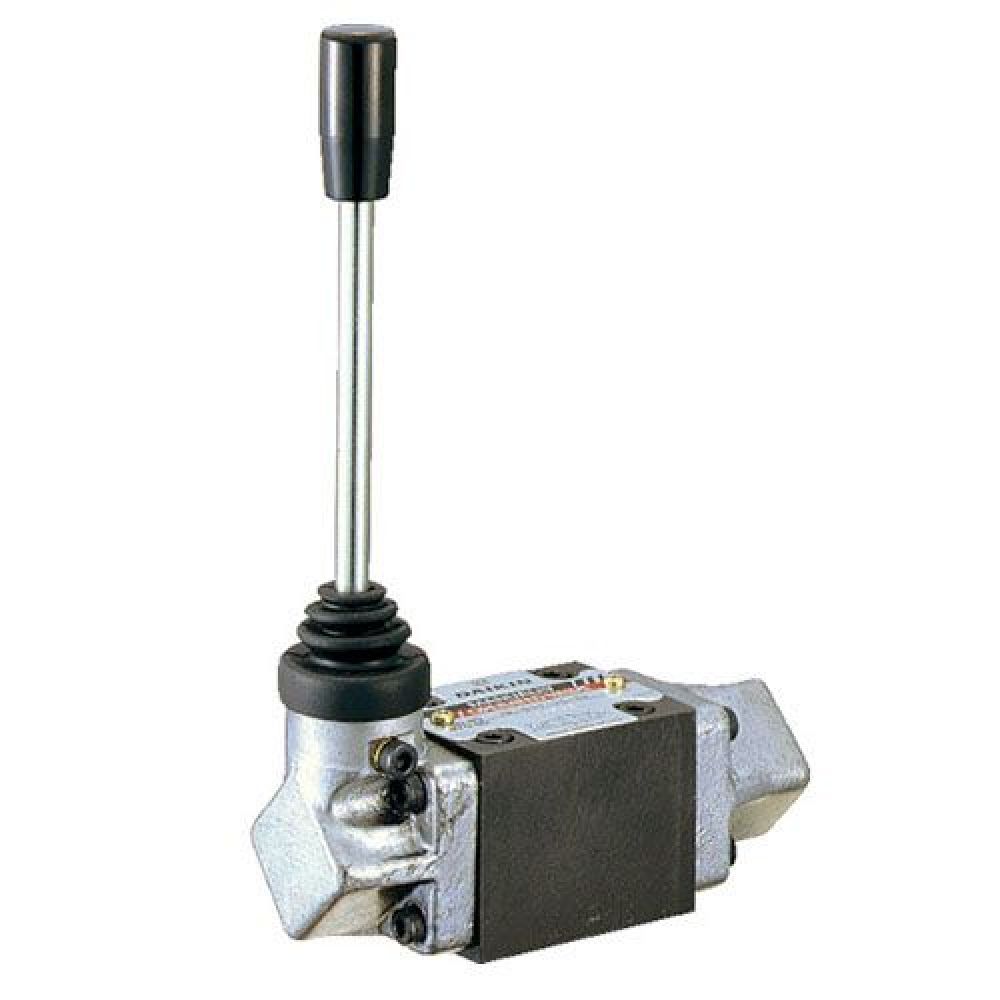

The Daikin JM Direction control valve switches the direction of the oil flow by handling a spool with a manual arm directly. Combined with a G02 size stack valve, it is possible to include this valve within any hydraulic circuit.


Description JM-G02
Nom. Dia 1/4"
Max Operating Pressure 21 MPa (210 kgf/cm²)
Max Flow Rate 30 L/min
Permissible Back Pressure 7 MPA (70 kgf/cm²)
Weight 1.4 Kg
