Daikin JQ-T06- Pressure Control Valve (Screw Connection Type)

Daikin
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

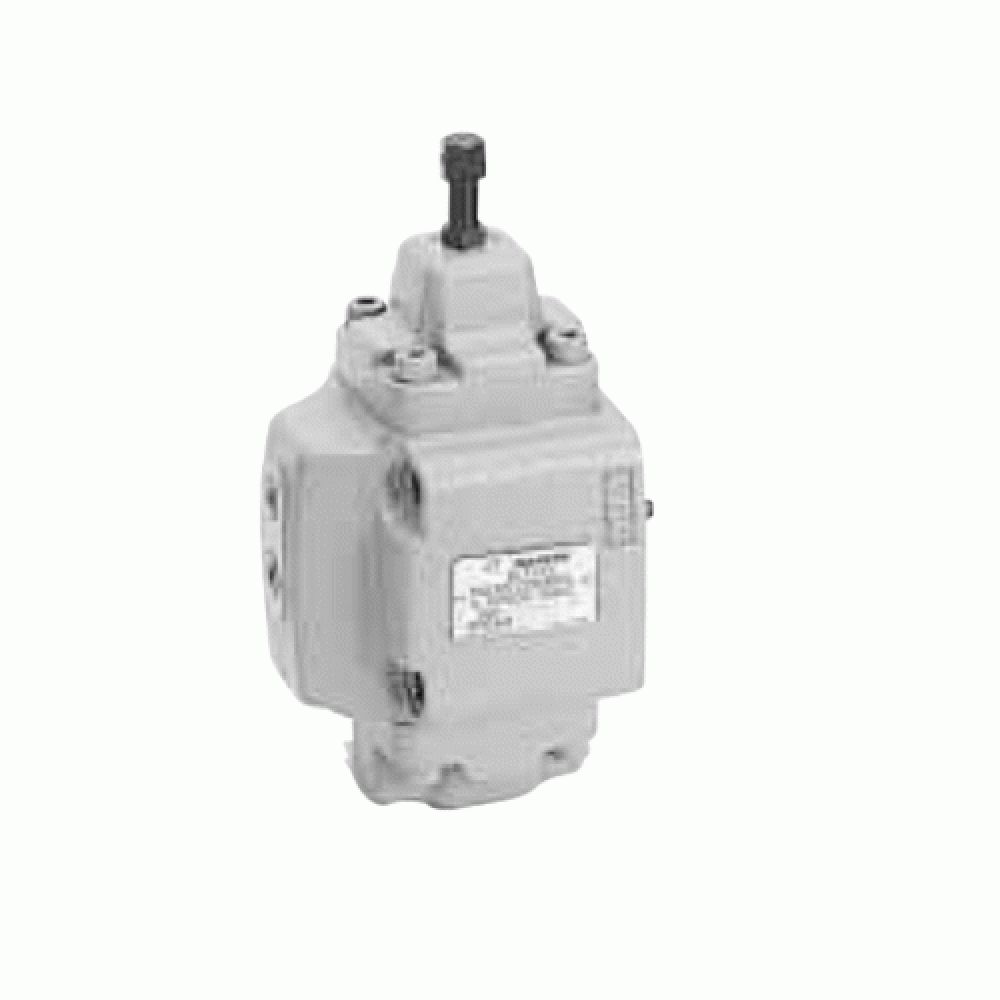

The Daikin JQ Pressure Control Valve is a direct acting valve which can be used for a sequence valve, an unload valve, a counter balance valve and a relief valve in a combination of either internal or external pilot and drain.


Description JQ(C)-T06-*A-12 JQ(C)-T06-*C-12-(W) JQ(C)-T06-*E-12-(W)
Nom Diameter 3/4 3/4 3/4
Max Operating Pressure 21 MPa (210 kgf/cm²) 21 MPa (210 kgf/cm²) 21 MPa (210 kgf/cm²)
Pressure Adjusting Range 0.25 ~ 0.85 MPa (2.5 ~ 8.5 kgf/cm² 0.85 ~ 3.5 MPa (8.5 ~ 35 kgf/cm²) 3.5 ~ 14 MPa (35 ~ 140 kgf/cm²)
Max Flow Rate 120 L/min 120 L/min 120 L/min
