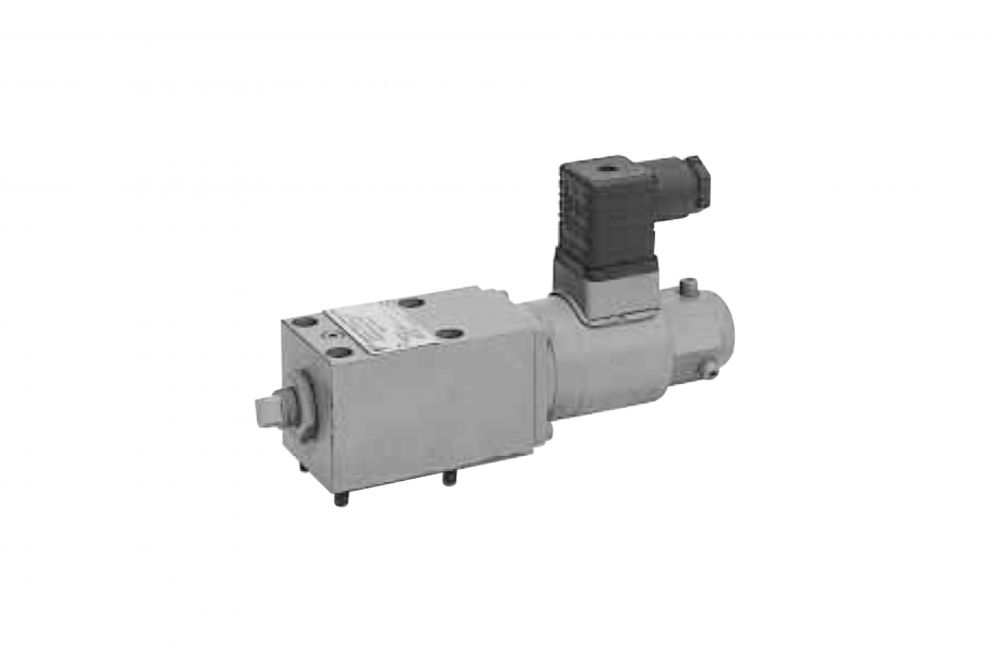

The Daikin JRP Solenoid Proportional Pilot Relief Valve has the capability of operating remotely as a pilot valve of a variable displacement piston pump or as a pilot operating type pressure control valve such as a relief valve or a reducing valve.
| Description | JRP-G02-03-*-30 | JRP-G02-1-*-30 | JRP-G02-2-*-30 | JRP-G02-3-*-30 |
|---|---|---|---|---|
| Nominal Diameter | 1/4" | 1/4" | 1/4" | 1/4" |
| Pressure Adjusting Range | *~3.5 MPa {~35 kgf/cm²} | *~7 MPa {~70 kgf/cm²} | *~16 MPa {~160 kgf/cm²} | *~25 MPa {~250 kgf/cm²} |
| Max Flow Rate | 1 L/min | 1 L/min | 1 L/min | 1 L/min |
| Weight | 1.8 Kg | 1.8 Kg | 1.8 Kg | 1.8 Kg |
