Daikin JRSS - Relief Valve with a Solenoid Valve image

Daikin JRSS - Relief Valve with a Solenoid Valve

Name: Zeus Hydratech Ltd
Telephone: +441172130042
Price range: £ - ££££

Daikin

View all specifications ~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

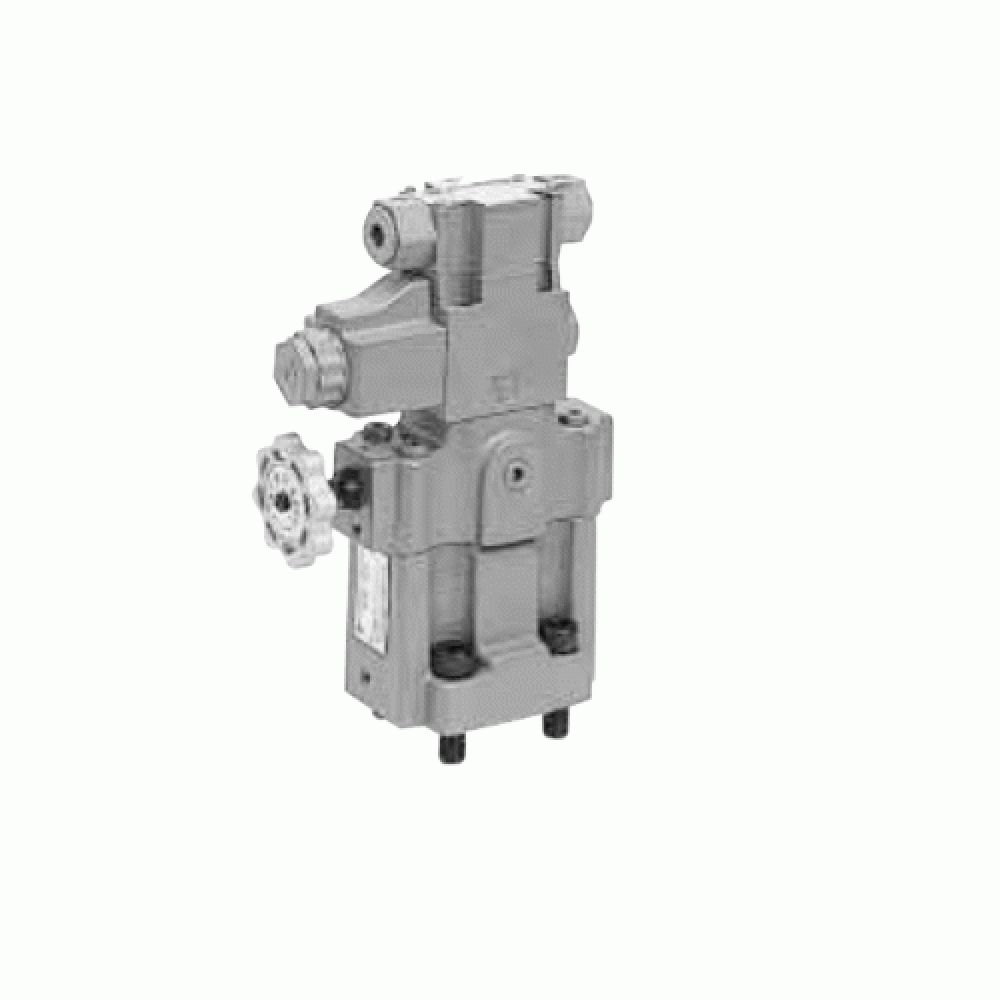

The Daikin JRSS Relief Valve has a broad flow rate range enables the steady pressure control.
This valve will have a function of an unloading valve, if a vent port is used.
The switching of the solenoid operated valve enables the circuit unloading, dual pressure control and triple pressure control.
The Low noise models with high characteristics against noise.
Option for high vent type is available.

Downloads & Datasheets

Daikin - JRSS - Relief Valve with a Solenoid Valve - Datasheet

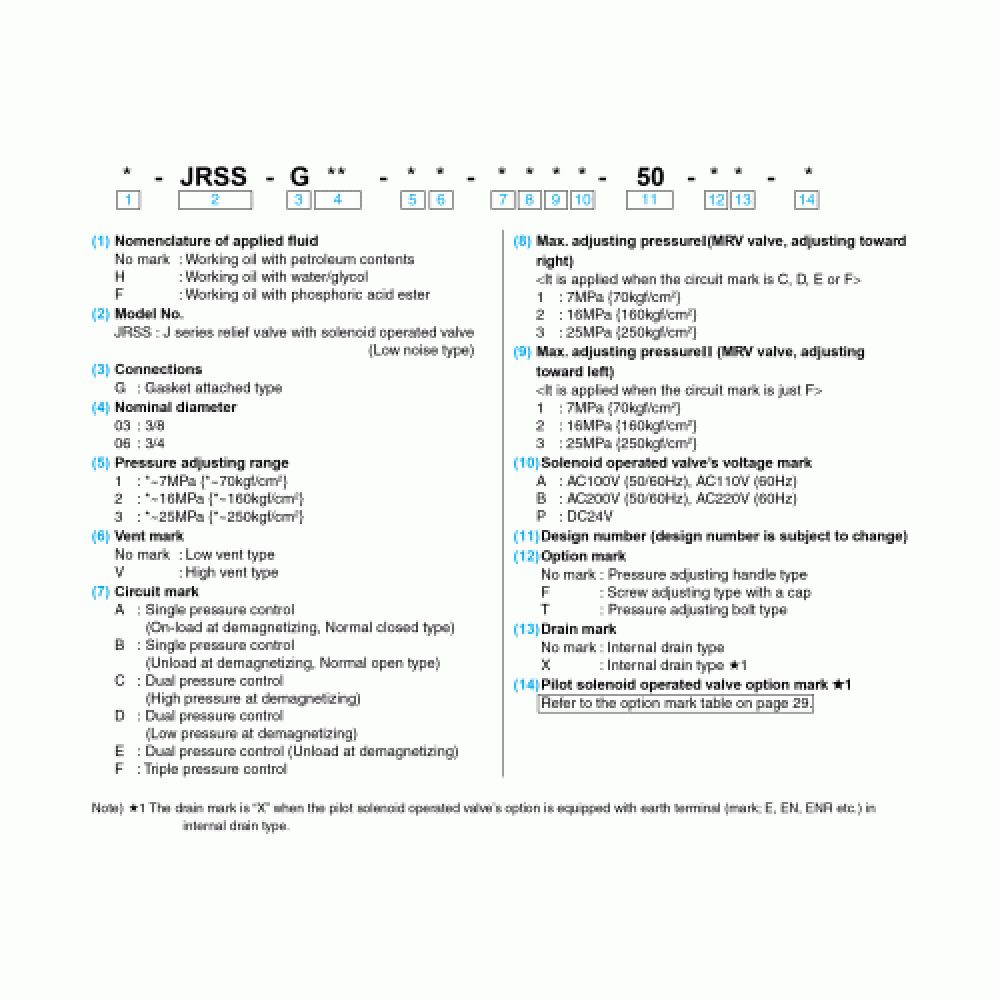

Model Code	Nom Dia	Pressure Adjusting Range	Max Flow Rate	Weight
JRSS-G03-1--50	3/8"	~7 MPa {~70 kgf/cm²}	200 L/min	6.4 - 8.8 kg
JRSS-G03-2--50	3/8"	~16 MPa {~160 kgf/cm²}	200 L/min	6.4 - 8.8 kg
JRSS-G03-3--50	3/8"	~25 MPa {~250 kgf/cm²}	200 L/min	6.4 - 8.8 kg
JRSS-G06-1--50	3/4"	~7 MPa {~70 kgf/cm²}	300 L/min	7.5 - 9.9 kg
JRSS-G06-2--50	3/4"	~16 MPa {~160 kgf/cm²}	300 L/min	7.5 - 9.9 kg
JRSS-G06-3--50	3/4"	~25 MPa {~250 kgf/cm²}	300 L/min	7.5 - 9.9 kg
