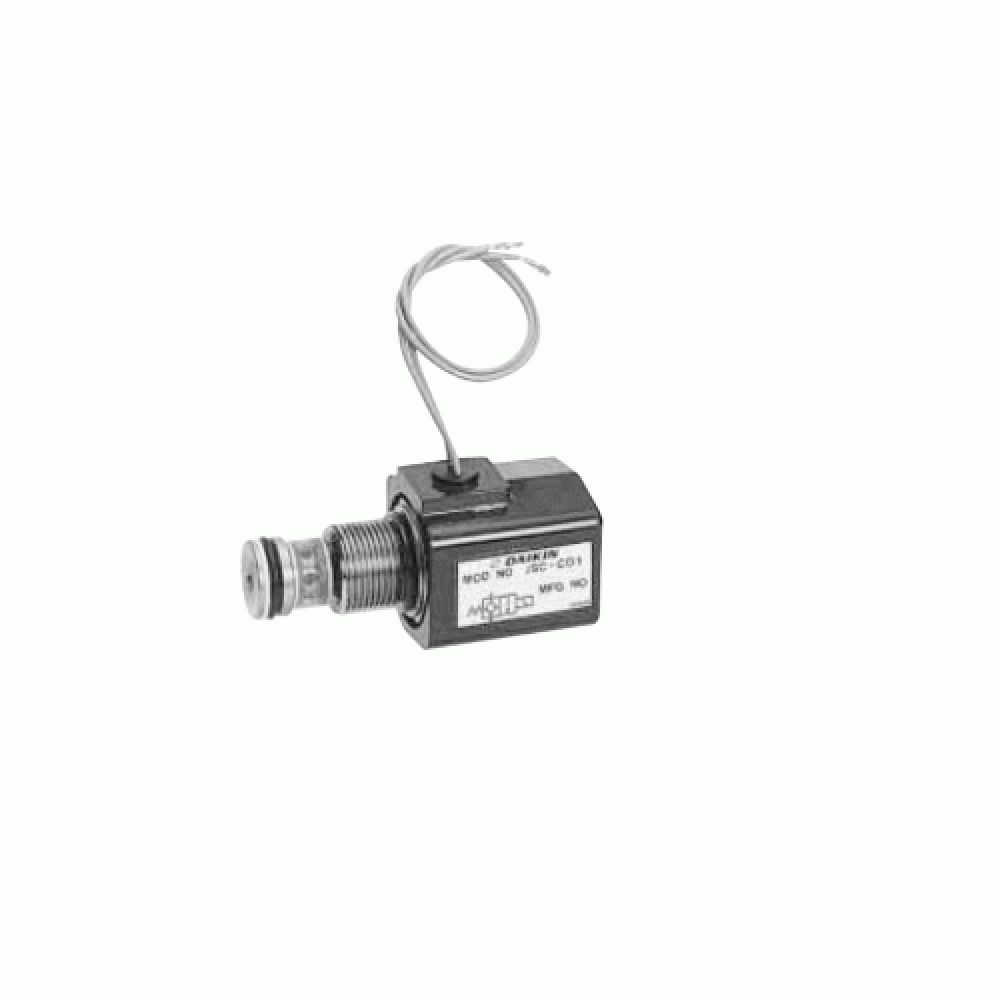

With the JSC Seat Style Solenoid Operated Valve Fluid adhering phenomena will never happen even if it is used for long time in pressurized condition.
| Description | JSC-*01 |
|---|---|
| Nom. Dia | 1/8 |
| Max Operating Pressure | 25 MPa (250 kgf/cm²) |
| Max Flow Rate | 15 L/min |
| Max Switching frequency | 240 cycle/min |
| Leak amount | 0.25 or less |
| Gasket Attached Type Weight | 0.97 Kg |
| Cartridge Attached Type Weight | 0.27 kg |
Awaiting video
