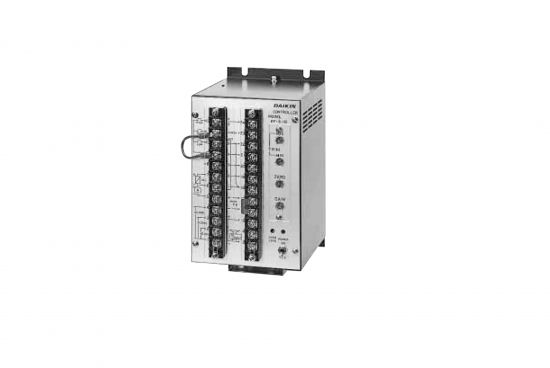

Daikin KF - Minor Loop Control Method Drive (for AC current)

Daikin
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.


  • The Daikin KF Minor Loop Control Method Driver controls the LEM valve which detects the spool position by a differential transformer to carry out a feed back control (minor feed back).

  • Owing to the constant-current characteristics, the variations of the supply voltage and output current by a solenoid can cause a temperature rise but this rarely happens.

  • The output radio wave corrugation (dither frequency, amplitude) is et up so that the hysteresis of a solenoid proportional control valve and a resolution power can get the best values.

  • Since the current is controlled by PWM (pulse width modulation) method, heat generation from the drive is reduced to a small amount.

Description KF-5-10 KFH-5-10
 Supply Voltage AC100V, AC200V, AC220V (50/60Hz) AC100V, AC200V, AC220V (50/60Hz)
 Permissible Voltage Variation -10 ~ 10% -10 ~ 10%
Applied Load Proportional Solenoid (DC12V) Proportional Solenoid (DC12V)
Command Input DC 0 ~ ± 5V or 1 kΩ DC 0 ~ ± 5V or 1 kΩ
Output Current 0 ~ 850 mA 0 ~ 1700 mA
Power Consumption Max 55 W Max 78 W
Input Impedance 70±5 KΩ 70±5 KΩ
Min Trimmer Adjustment 0 ~ 2 V or less: Variable 0 ~ 2 V or more: Variable
Max Trimmer Adjustment 5 ~ 1.9 V or more: Variable 5 ~ 1.9 V or more: Variable
Surrounding Temperature 0 ~ 55°C 0 ~ 55°C
Surrounding Humidity 25 ~ 90% RH 25 ~ 90% RH
 Weight 3 Kg 3.3 Kg
