Daikin MFP100/3.2-2 - 7.8-2 - Motor Pump

Contact us for current availability
View all specifications
~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

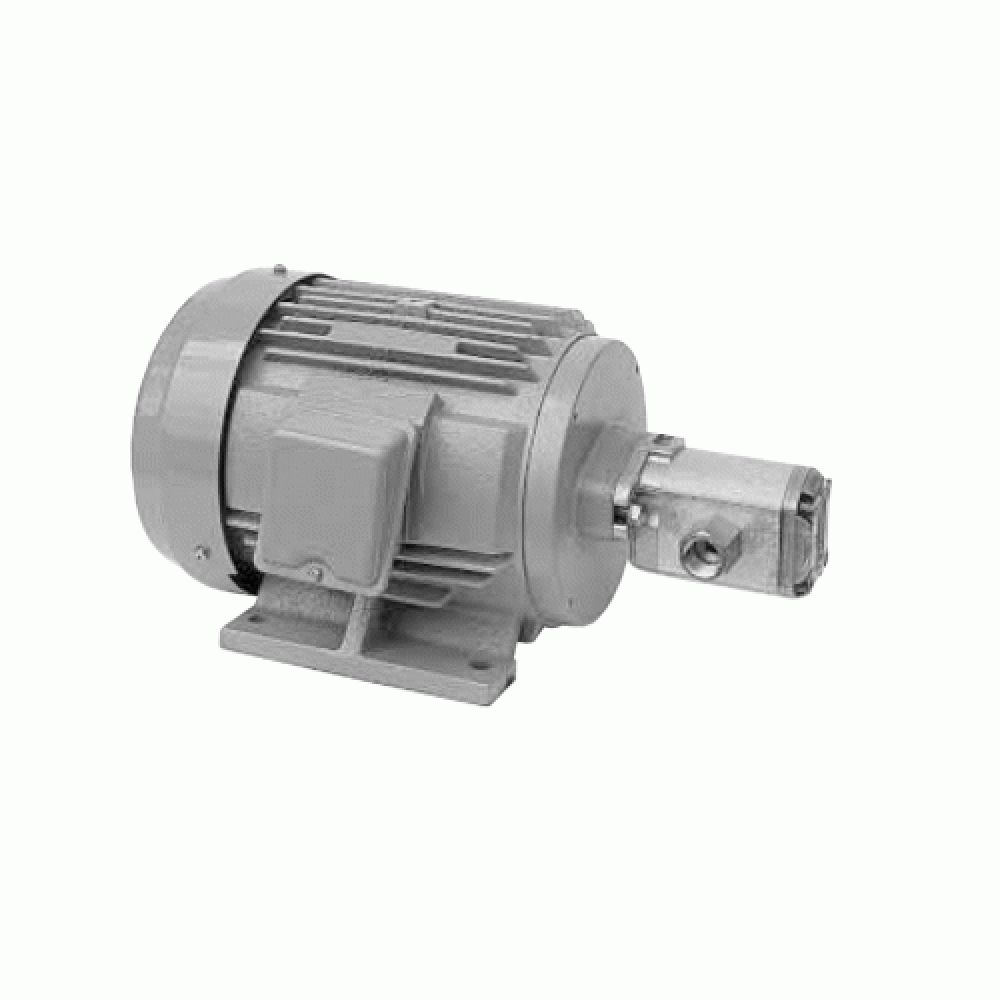

The Daikin MFP100 Series is a motor pump that TFP type gear pump and electrical motor are built in one body.

Description MFP 100/3.2-2-*-10 MFP 100/3.8-2-*-10 MFP 100/4.3-2-*-10 MFP 100/7.8-2-*-10
 Gear Pump Type TFP 100/3.2DCI06 TFP 100/3.8DCI06 TFP 100/4.3DCI06 TFP 100/7.8DCI06
 Motor 0.4 kW/4P Ο Ο Ο Χ
 Motor 0.75 kW/4P Ο Ο Ο Ο
 Motor 1.5 kW/4P Ο Ο Ο Ο
 Motor 2.2 kW/4P Ο Ο Ο Ο
 Max Operating Pressure 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²} 18 MPa {180 kgf/cm²}
 Rated Operating Pressure  14 MPa {140 kgf/cm²}  14 MPa {140 kgf/cm²}  14 MPa {140 kgf/cm²}  10.5 MPa {105 kgf/cm²}
 Theoretical Displacement 3.2 cm³/rev 3.8 cm³/rev 4.3 cm³/rev  7.8 cm³/rev
