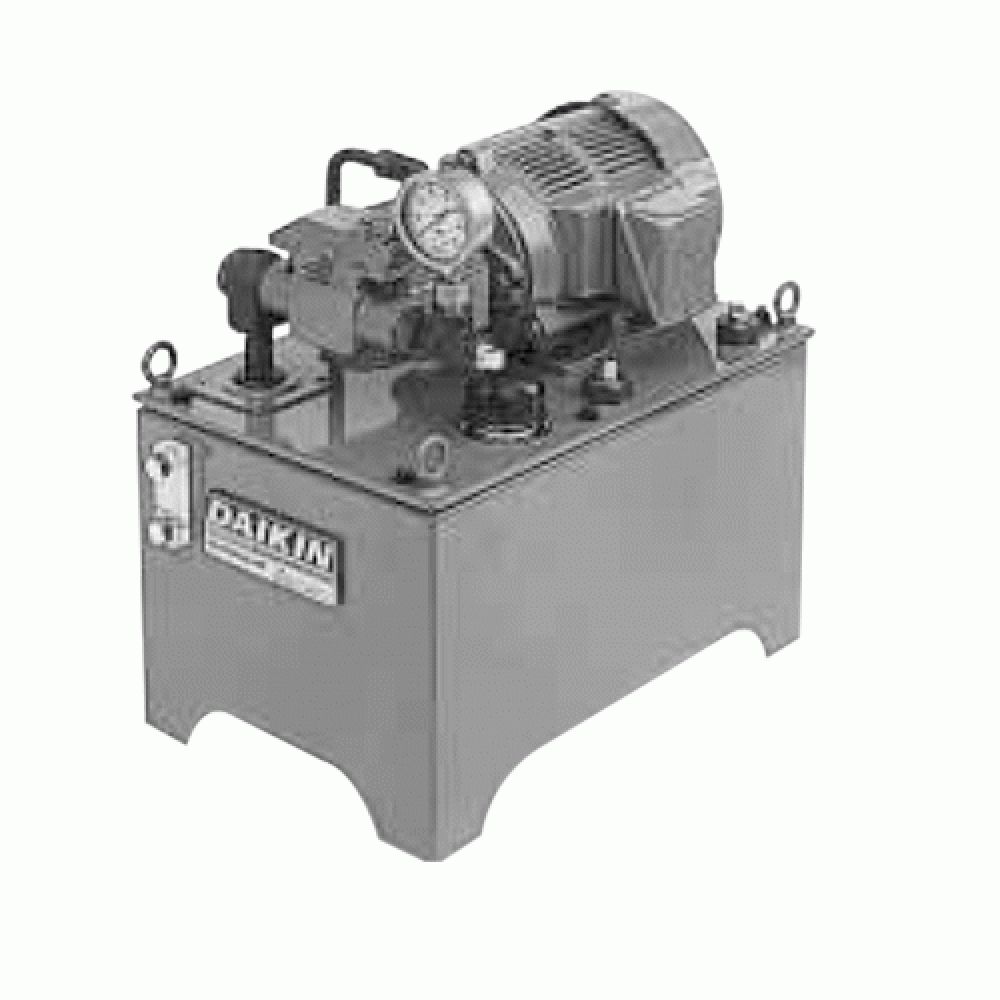

Daikin ND 81-302, 159Y-302, 151Y-403 Series - Mini Hydraulic Power Pack

Daikin
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.


  • The Daikin ND Series uses a V series piston pump , it operates quietly and emits soft sound.
  • The best compact sizes (Tank capacity : 20, 30, 45L).

Description ND 81-302-40 ND 159Y-302-40 ND 151Y-403-40
 Displacement Volume 8 cm³/rev  14.8 cm³/rev  14.8 cm³/rev
 Motor Capacity Output/Pole No 1.5 KW/4P 1.5 KW/4P  2.2 KW/4P
 Tank Volume  30 Ltr  30 Ltr  45 Ltr
 Max Operating Pressure 7 MPa {70 kgf/cm²} 3.5 MPa {35 kgf/cm²} 7 MPa {70 kgf/cm²}
 Pressure Adjusting Range  0.8 ~ 7 {8 ~ 70 kgf/cm²} 0.8 ~ 3.5 {8 ~ 35 kgf/cm²}  0.8 ~ 7 {8 ~ 70 kgf/cm²}
Displacement Volume Set at Factory (50Hz) 11.5  L/min 21 L/min 16.6  L/min
Displacement Volume Set at Factory (60 Hz) 14  L/min 25 L/min 20 L/min
 Pressure Set at Factory 7 MPa {70 kgf/cm²} 3.5 MPa {35 kgf/cm²} 7 MPa {70 kgf/cm²}
 Weight 57 kg 60 kg 73 kg
