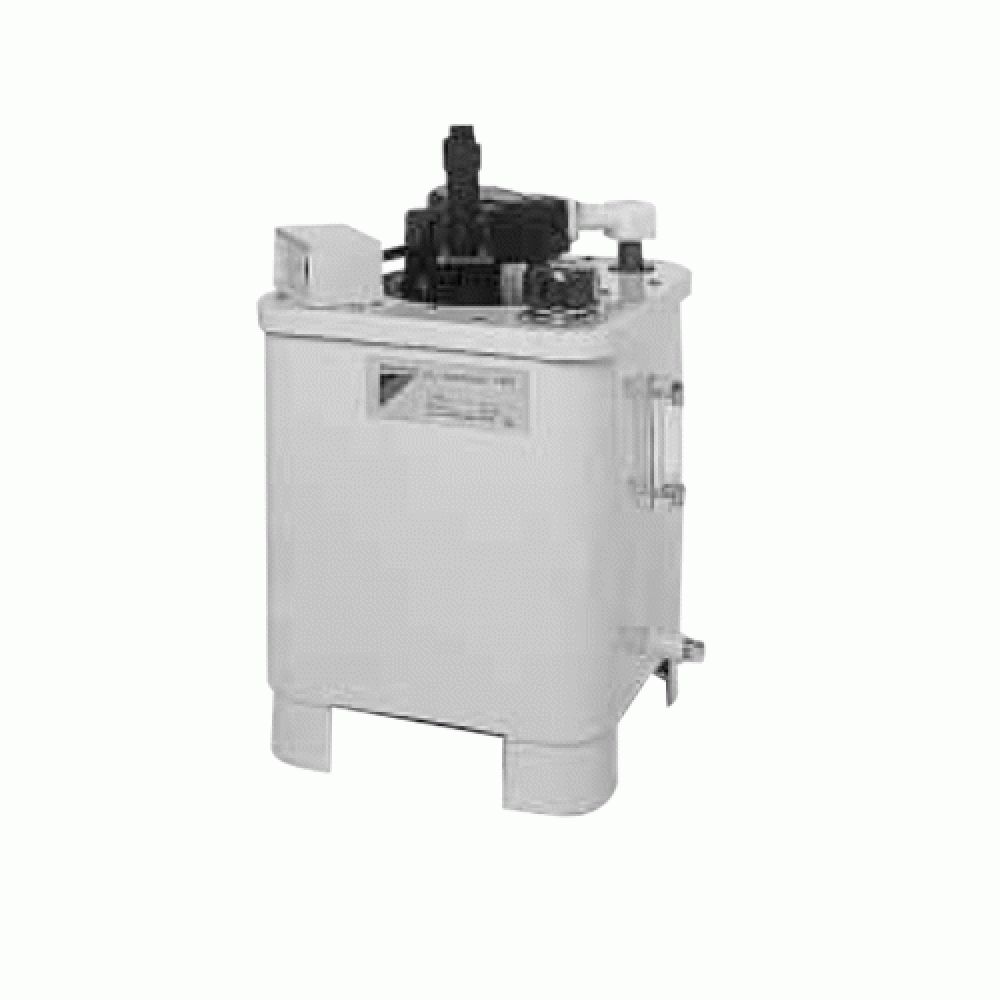

In the Daikin NDJ Series the pump and a motor are placed inside a tank, the tank itself plays a role of sound attenuate and noise cannot be leaked out.
Since a hollow tank with wide area of heat emission is adopted, a motor cooling fan forcefully cools both internal wall of a tank and pump surface to restrain oil temperature rise.
Compact design enables a installation space to reduce.
| Description | NDJ 89-101-20 (-LC) | NDJ 81-152-20 (-LC) | NDJ 159-152-20 (-LC) |
|---|---|---|---|
| Displacement Volume | 8 cm³/rev | 8 cm³/rev | 14.8 cm³/rev |
| Motor Capacity Output/Pole No | 0.75 KW/4P | 1.5 KW/4P | 1.5 KW/4P |
| Tank Volume | 10 Ltr | 15 Ltr | 15 Ltr |
| Max Operating Pressure | 3.5 MPa {35 kgf/cm²} | 7 MPa {70 kgf/cm²} | 3.5 MPa {35 kgf/cm²} |
| Pressure Adjusting Range | 0.8 ~ 3.5 {8 ~ 35 kgf/cm²} | 0.8 ~ 7 {8 ~ 70 kgf/cm²} | 0.8 ~ 3.5 {8 ~ 35 kgf/cm²} |
| Displacement Volume Set at Factory (50Hz) | 6 ~ 11 L/min | 6 ~ 11 L/min | 5 ~ 21 L/min |
| Displacement Volume Set at Factory (60 Hz) | 7 ~ 14 L/min | 7 ~ 14 L/min | 6 ~ 25 L/min |
| Pressure Set at Factory | 3.5 MPa {35 kgf/cm²} | 7 MPa {70 kgf/cm²} | 3.5 MPa {35 kgf/cm²} |
| Weight | 35 kg | 45 kg | 50 kg |
