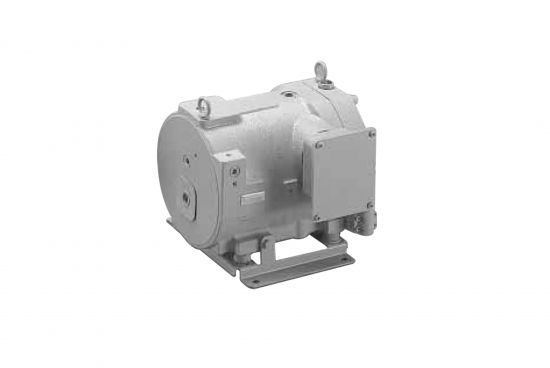

Daikin RP - Rotor Pump Series (Pump/Motor Set)

Daikin
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.


Low Noise
  • The adoption of our own low noise technology realizes to reduce the operation noise so great as 10~15dB (in comparison with our own products) and improve the sound quality.

Compactness
  • The one housing structure enables it to shorten the length so much as 40% in comparison with our existing models. It results in easy handling and compactness of the machine.

Low pulsation
  • The pulsation has reduced by 50% in comparison with our existing models.

High reliability
  • Because of the hermetic structure such that the shaft is not out of the casing, it doesn’t need an oil seal and no oil leak will happen. Besides, the temperature rise in the motor coil is small due to the motor oil cooling structure. Consequently, the structure makes it possible to operate pumps in a long term overload conditions.

Coping with CE
  • Since these models are equipped with the terminal box of IP54 based on the International Standards (IEC34-1 and others), the models are the best suited for coping with the Europe safety standards (CE).

Pump Technical Specification

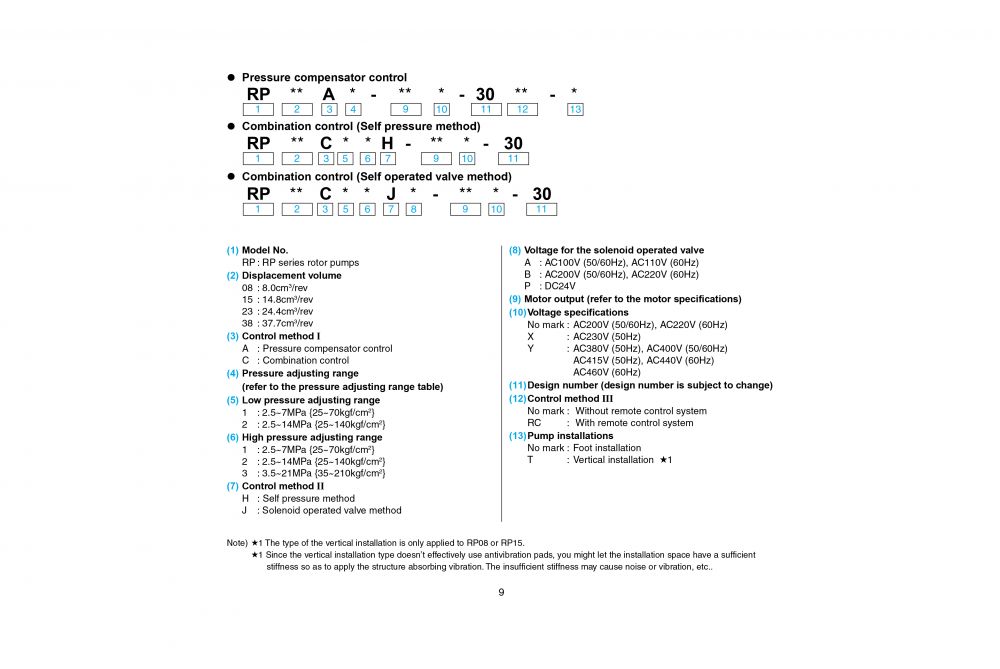

Model Code Theoretical Displacement Max Operating Pressure Displacement Adjusting Range
RP08A*-07-30 (RC) 8.0 cm³/rev 14 MPa {140 kgf/cm²} 4.8 ~ 14.0 L/min
RP15A*-15-30 (RC) 14.8 cm³/rev 14 MPa {140 kgf/cm²} 12.0 ~ 25.0 L/min
RP15A*-22-30 (RC) 14.8 cm³/rev 21 MPa {210 kgf/cm²} 12.0 ~ 25.0 L/min
RP15C**H (J)-15-30 14.8 cm³/rev 21 MPa {210 kgf/cm²} A
RP15C**H (J)-22-30 14.8 cm³/rev 21 MPa {210 kgf/cm²} A
RP23A*-22-30 (RC) 24.4 cm³/rev 14 MPa {140 kgf/cm²} 20.0 ~ 42.0 L/min
RP23A*-37-30 (RC) 24.4 cm³/rev 21 MPa {210 kgf/cm²} 20.0 ~ 42.0 L/min
RP23C**H (J)-22-30 24.4 cm³/rev 21 MPa {210 kgf/cm²} B
RP23C**H (J)-37-30 24.4 cm³/rev 21 MPa {210 kgf/cm²} C
RP38A*-37-30 (RC) 37.7 cm³/rev 14 MPa {140 kgf/cm²} 20.0 ~ 64.0 L/min
RP38A*-55-30 (RC) 37.7 cm³/rev 21 MPa {210 kgf/cm²} 20.0 ~ 64.0 L/min
RP38C**H (J)-37-30 37.7 cm³/rev 21 MPa {210 kgf/cm²} D
RP38C**H (J)-55-30 37.7 cm³/rev 21 MPa {210 kgf/cm²} D

Notes:

  • A = RP15C Large capacity adjusting range 12.0 ~ 25.0 Small capacity adjusting range 1.0 ~ 10.0
  • BRP23-22 Large capacity adjusting range 20.0~42.0 Small capacity adjusting range 1.0~15.0
  • C = RP23-37 Large capacity adjusting range 30.0~42.0 Small capacity adjusting range 1.0~25.0



Motor Technical Specification



Model Code Motor Size (Kw) Rating 200V (50Hz) Rating 200V (60Hz) Rating 220V (60Hz) Weight (kg)
RP08A*-07-30 (RC) 0.75 Kw/4P 3.8 A 3.4 A 3.4 A 30 kg
RP15A*-15-30 (RC) 1.5 Kw/4P 6.8 A 6.0 A 5.8 A 45 kg
RP15A*-22-30 (RC) 2.2 Kw/4P 9.6 A 8.8 A 8.4 A 45 kg
RP15C**H (J)-15-30 1.5 Kw/4P 6.8 A 6.0 A 5.8 A H:50 Kg (J:52 Kg)
RP15C**H (J)-22-30 2.2 Kw/4P 9.6 A 8.8 A 8.4 A H:50 Kg (J:52 Kg)
RP23A*-22-30 (RC) 2.2 Kw/4P 10.0 A 9.2 A 8.7 A 67 kg
RP23A*-37-30 (RC) 3.7 Kw/4P 15.1 A 14.7 A 13.4 A 73 kg
RP23C**H (J)-22-30 2.2 Kw/4P 10.0 A 9.2 A 8.7 A H:70 Kg (J:72 Kg)
RP23C**H (J)-37-30 3.7 Kw/4P 15.1 A 14.7 A 13.4 A H:76 Kg (J:78 Kg)
RP38A*-37-30 (RC) 3.7 Kw/4P 15.1 A 14.7 A 13.4 A 73 kg
RP38A*-55-30 (RC) 5.5 Kw/4P 22.0 A 21.2 A 19.6 A 87 kg
RP38C**H (J)-37-30 3.7 Kw/4P 15.1 A 14.7 A 13.4 A H:76 Kg (J:78 Kg)
RP38C**H (J)-55-30 5.5 Kw/4P 22.0 A 21.2 A 19.6 A H:90 Kg (J:92 Kg)
